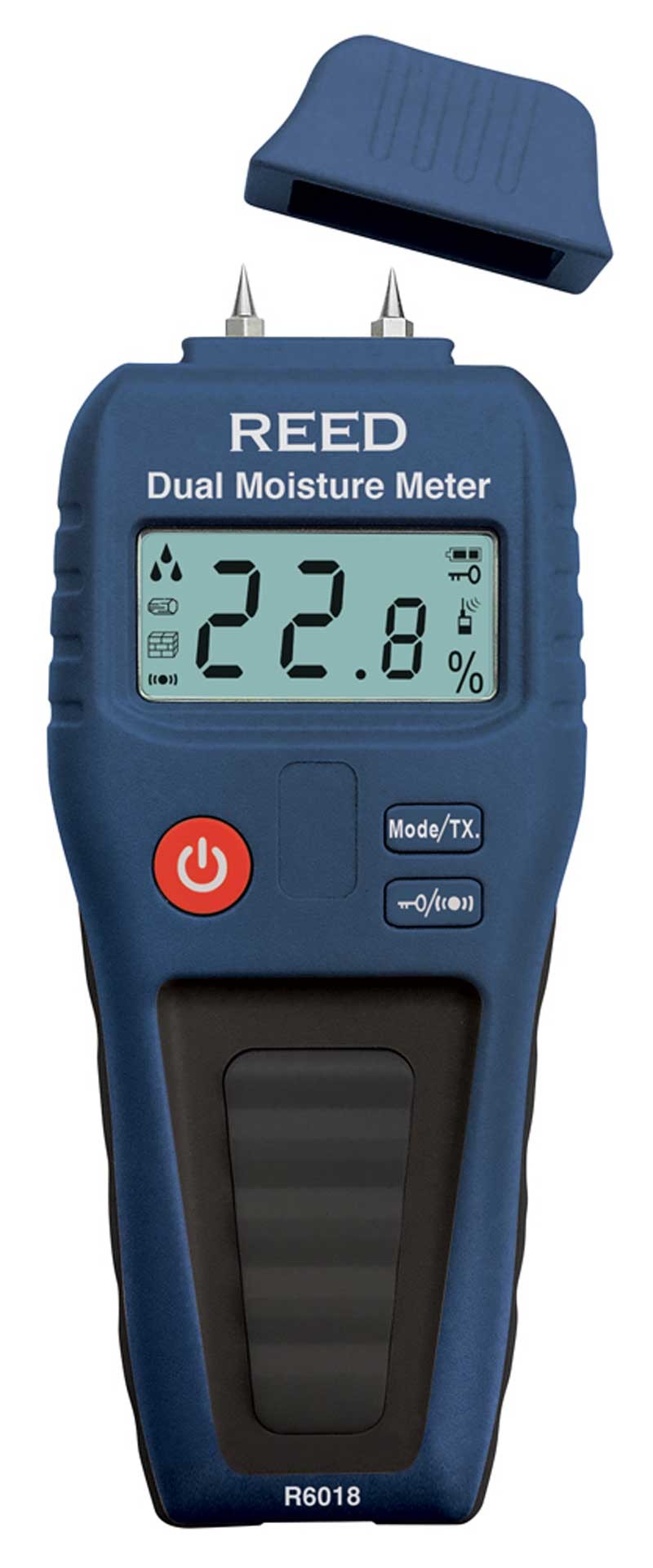

REED R6018 Dual Moisture Meter
Model: R6018 | UPC: 800837002525
REED R6018 Dual Moisture Meter
Model: R6018 | UPC: 800837002525
Pin and Pinless functions measures moisture in wood and building materials.
REED R6018 Offers

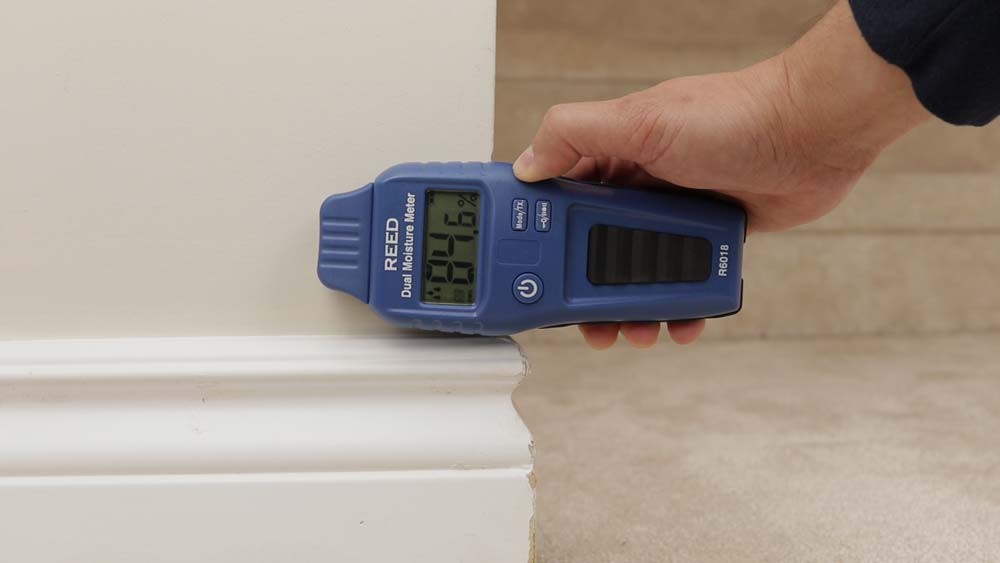

This dual function moisture meter is capable of detecting moisture in wood and building materials by pin or by running the instrument over the surface area (non-destructive method). The R6018 displays icons to indicate low, medium or high levels of moisture and an audible alert that increases in frequency as detected moisture level rises.
Features
- Pin and Pinless functions detect moisture in wood and building materials
- Pinless measurement depth up to 1" (25mm)
- Classifies moisture status as: low, medium and high
- Audible alert and Data Hold functions
- Built-in measurement verification and battery check
- Low battery indicator and auto shut-off
- Replaceable pins
REED R6018 Specifications
| Measuring Ranges | Pin Mode: 5 to 50% (wood); 1.5-33% (building materials) Pinless Mode: 0 to 99.9% (wood and building materials) |
| Depth Detection | Pin mode: 0.3" (8mm) Pinless mode: up to 1" (25mm) |
| Accuracy | Pin Mode: ±(3% + 5 dgt.) |
| Resolution | 0.1% |
| Sensor Type | Dual Function (Contact Pins/Pinless) |
| Display | LCD Display |
| Data Hold | Yes |
| Audible Alert Indicator | Audible tone (increased intensity as moisture level rises) |
| Replaceable Pins | Yes |
| Auto Shut-off | Yes (after 2 mins) |
| Low Battery Indicator | Yes |
| Power Supply | 9V Battery |
| Product Certifications | CE |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Storage Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity Range | 0 to 80% |
| Dimensions | 6.7 x 2.6 x 1.2" (170 x 65 x 30mm) |
| Weight | 4.2 oz (120g) |
What's included with the REED R6018
- R6018 Dual Moisture Meter
- Pins
- Protective Cap
- Battery
R6018 Dual Moisture Meter
This dual moisture meter measures the moisture level in building materials and wood by using the integrated pins or with the non-destructive (pinless) mode. The icons on the display show low, medium or high levels of moisture when detecting moisture in drywall, plaster, concrete, mortar, and cardboard. This unit features a built-in measurement verification and has replacement pins available.
REED Moisture Meters
Ideal Applications for the REED R6018
- Construction and Building Projects
- Remediation and Restoration
- Woodworking
