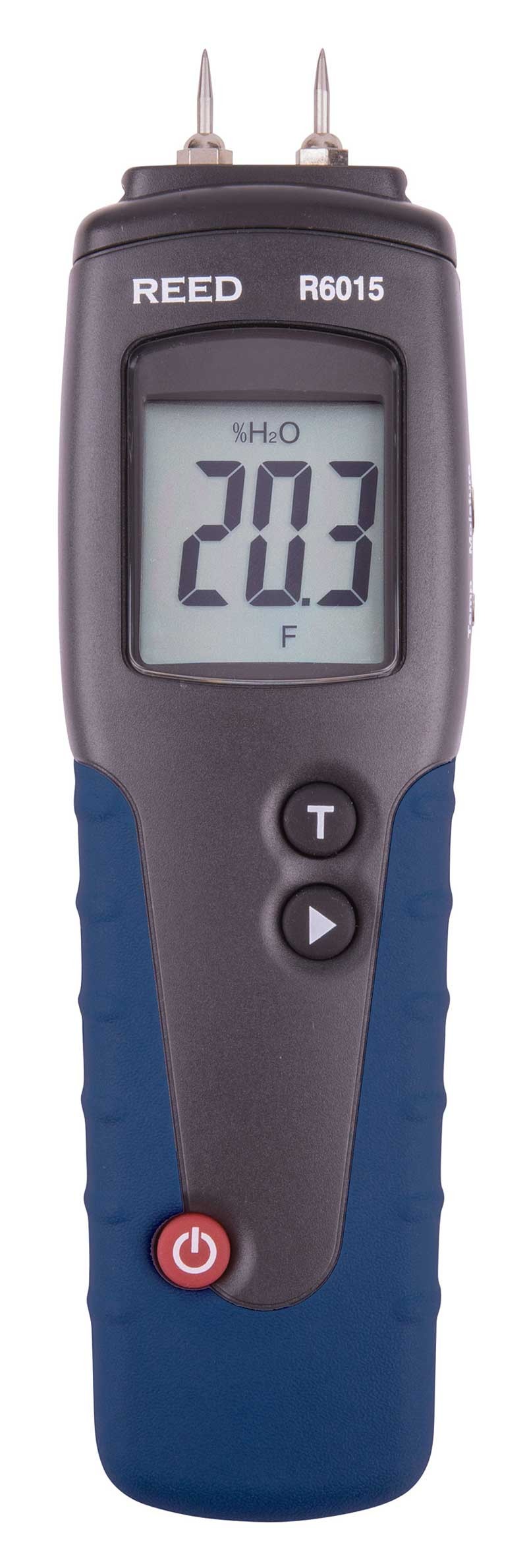

REED R6015 Wood Moisture Meter

Model: R6015 | UPC: 800837001399

Designed specifically to measure moisture in approximately 170 species of wood.

REED R6015 Offers

This wood moisture detector uses the electrical resistance principle to measure wood moisture of approximately 170 different species of wood. The R6015 features an automatic temperature compensation (ATC) probe for increased accuracy and includes a remote hand-press for flexibility in the field.

Features

Measures wood moisture with integrated pins or with remote hand-press probe
Improved accuracy with use of included automatic temperature compensation probe
Memory contains 8 wood groups with calibrations for approx. 170 species of wood
Built-in 2-point calibration check
Low battery indicator and auto shut-off

REED R6015 Specifications

Measuring Range	6 - 99.9% Moisture Content
Accuracy	±1%
Resolution	0.1%
Temperature	-31 to 176°F (-35 to 80°C)
Sensor Type	Contact Pins
Display	LCD Display
Replaceable Pins	Yes
Auto Shut-off	Yes (user selectable between 1 and 9 mins)
Low Battery Indicator	Yes
Power Supply	2x AAA Batteries
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	0-85%
Dimensions	7 x 1.9 x 2" (180 x 50 x 31mm)
Weight	6.1 oz (175g)

What's included with the REED R6015

Wood Moisture Detector

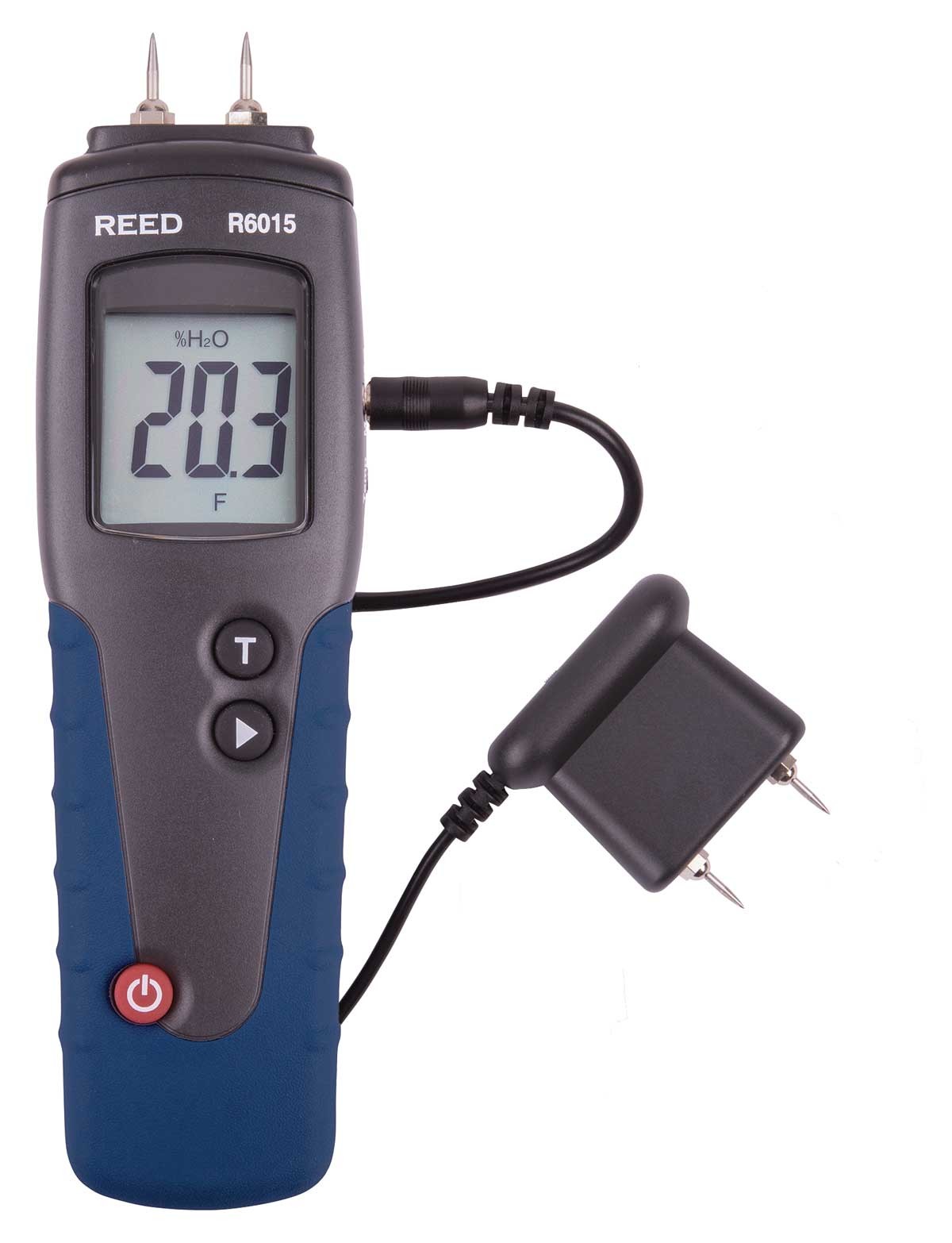

Remote Hand-Press Moisture Electrode
ATC Temperature Probe
Protective Cap
Replacement Pins
Soft Carrying Case
Batteries

R6015 Wood Moisture Detector

This wood moisture meter measures moisture levels in 170 different types of wood by measuring with integrated pins or with a remote probe. The automatic temperature compensation (ATC) probe can be used for increased accuracy in readings. A 2-point calibration check further ensures the accuracy of readings. Replaceable pins are available to meet your needs.
