REED R6010 Pinless Moisture Meter

Model: R6010 | UPC: 800837001368

Non-invasive pinless moisture meter with backlit LCD display.

REED R6010 Offers

This non-destructive moisture detector measures moisture content in tiles, wood and building materials by simply running the probe over the surface area. The R6010 is capable of measuring up to 1.6" (40mm) and features user adjustable alarms and built-in self calibrating functions.

Features

Non-invasive measurements, run sensor over surface being tested without scratching or penetrating the surface
Classifies moisture status as: dry, at risk or wet
Detects moisture content in various building materials
Measurement depth from 0.8" (20mm) to 1.6" (40mm)
Data Hold and Min/Max functions
User adjustable alarms with audible and visual indicators
Backlit LCD display
Low battery indicator and auto shut-off

REED R6010 Specifications

Measuring Range	0 - 100% Moisture Content
Depth Detection	0.8 to 1.6" (20 to 40mm)
Resolution	0.1%
Sensor Type	Pinless
Display	LCD Display
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Auto Shut-off	Yes (30 secs)
Low Battery Indicator	Yes
Power Supply	3x AAA Batteries
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	0-85%
Dimensions	9.5 x 2.5 x 1.2" (242 x 63 x 30mm)
Weight	8 oz (226g)

What's included with the REED R6010

Pinless Moisture Meter
Batteries

R6010 Pinless Moisture Meter

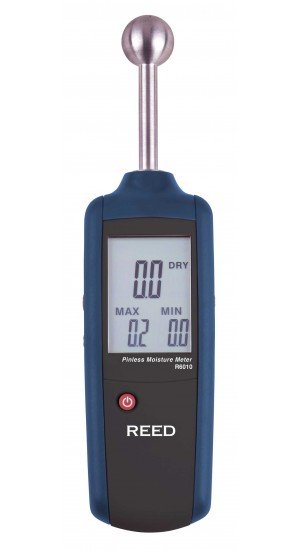

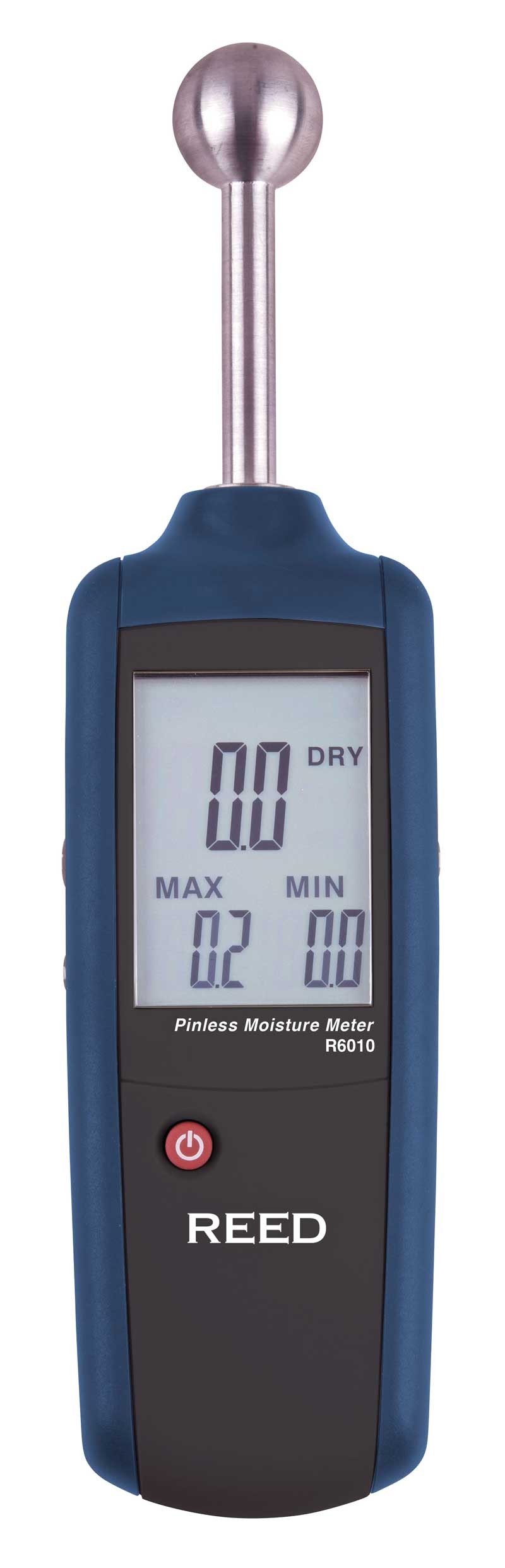

The R6010 measures the moisture level in building materials and wood by running the sensor over the surface being tested without scratching or penetrating the surface. It features a large backlit LCD display, it classifies moisture status as dry, at risk or wet and has user adjustable alarms with audible and visual indicators.
