REED R5600 Insulation Tester

Model: R5600 | UPC: 800837002044

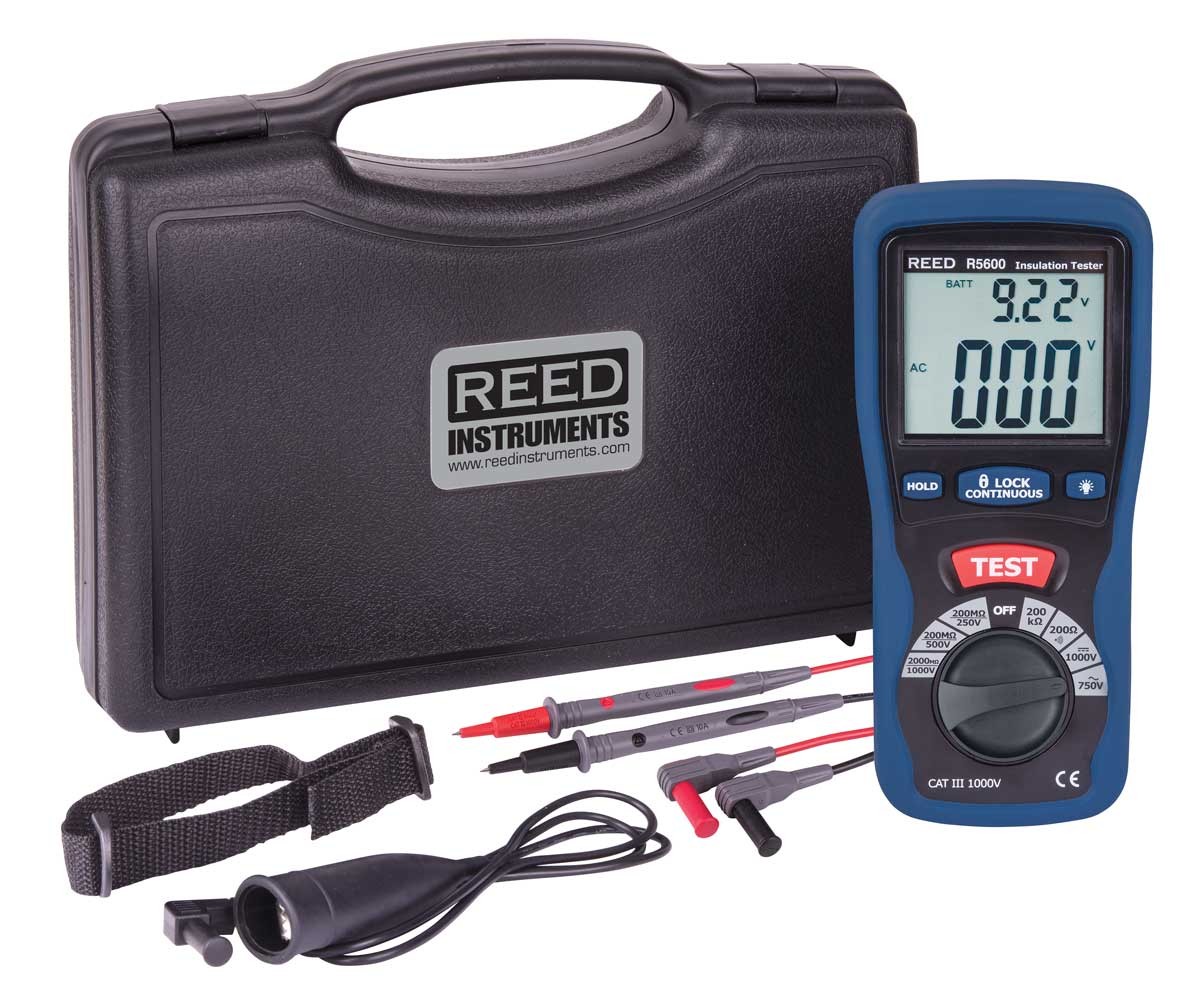

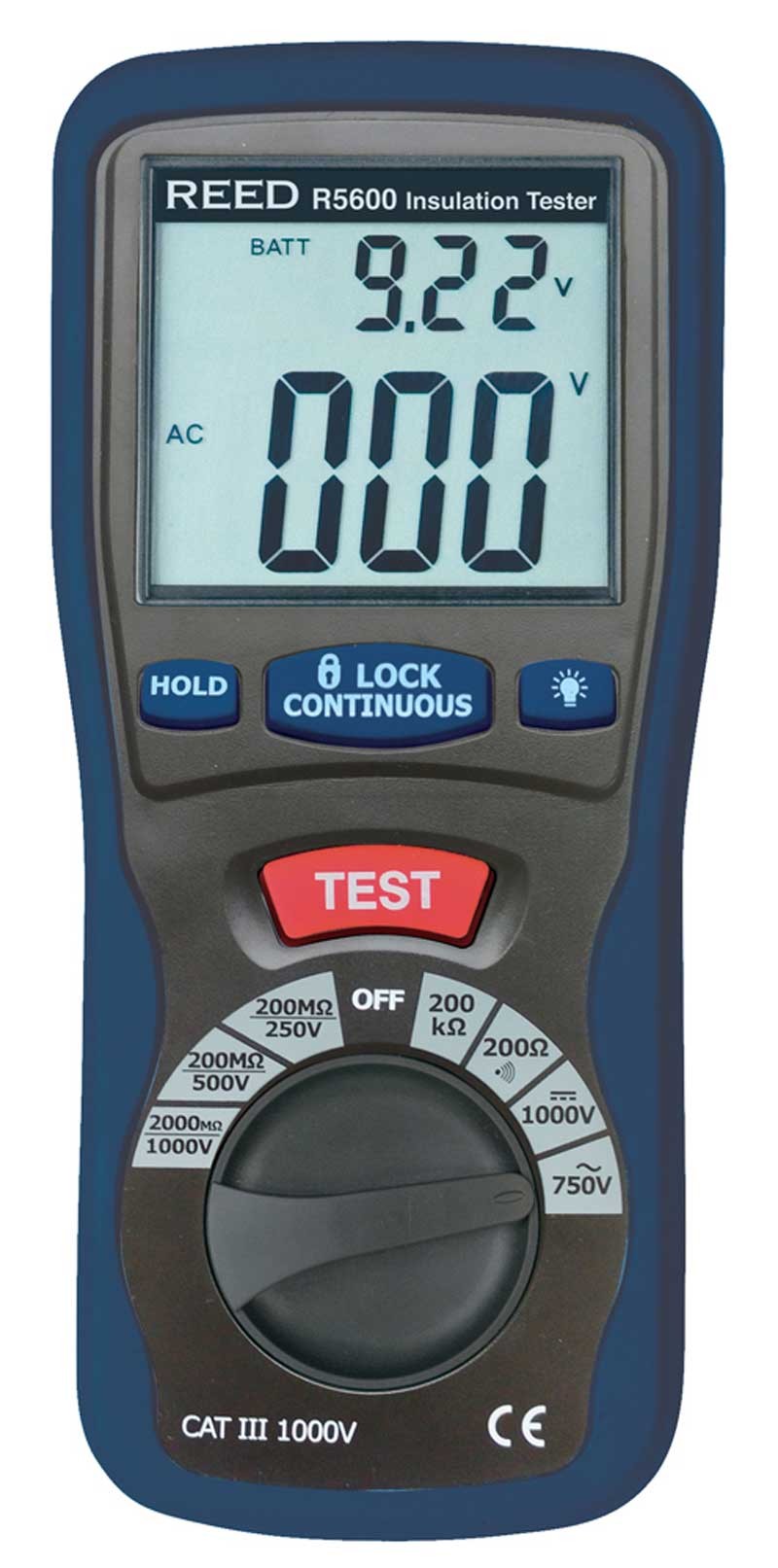

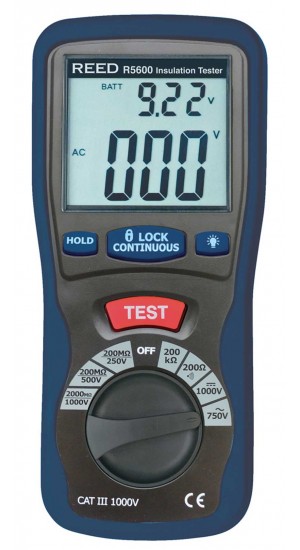

Multi-function insulation tester with backlit dual display, double molded plastic housing and lock function for hands-free operation.

REED R5600 Offers

This insulation tester is capable of measuring 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ. The R5600 features an easy-to-read backlit dual display, durable double molded plastic housing and lock function with hanging strap for handfree operation in the field.

Features

Backlit dual displays insulation resistance and test voltage simultaneously
250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
Lock function and hanging strap for handfree operation
Lo Ω function for testing connections
Datahold function
Double molded plastic housing for added protection
Low battery indicator and auto shut off
Cat. III, 1000V safety rating

REED R5600 Specifications

Voltage
Ranges	250V, 500V, 1000V
Accuracy	DC: ±(0.8% rdg. + 3 dgt.) AC: ±(1.2% rdg. + 10 dgt.)
Resolution	1V
OHMS
Ranges	200Ω, 200kΩ
Accuracy	±(1.0% rdg. + 2 dgt.)
Resolution	0.1Ω, 0.1kΩ
Meg OHMS
Ranges	200MΩ/250V, 2000MΩ/500V, 0-1000MΩ/1000V, 1000-2000MΩ/1000V
Accuracy	±(3.0% rdg. + 5 dgt.) Test Current: 250KΩ, 500KΩ, 1MΩ
Resolution	0.1MΩ, 1MΩ, 1mA
General Specifications
Range Selection	Autoranging/Manual
Display	LCD with dual display
Display Hold	Yes
Sampling Rate	2.5 times/sec.
Backlit Display	Yes
Continuity Check	Audible signal if resistance ≤40Ω
Kick Stand	Yes
Auto Power Off	Yes (after 15 minutes)
Power Supply	6 AA Batteries
Low Battery Indicator	Yes
Fuse Protection	Yes
Replaceable Test Leads	Yes
Overange Indicator	Yes
Overvoltage Category	CAT. III 1000V
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	7.9 x 3.6 x 2.0" (200 x 92 x 50mm)
Weight	25oz (700g)
