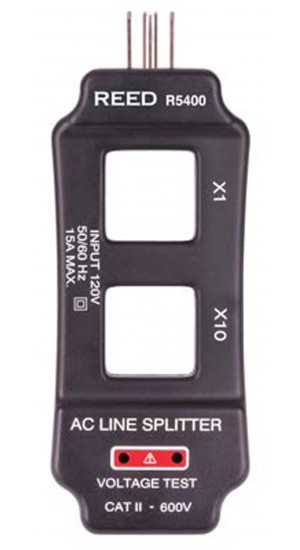

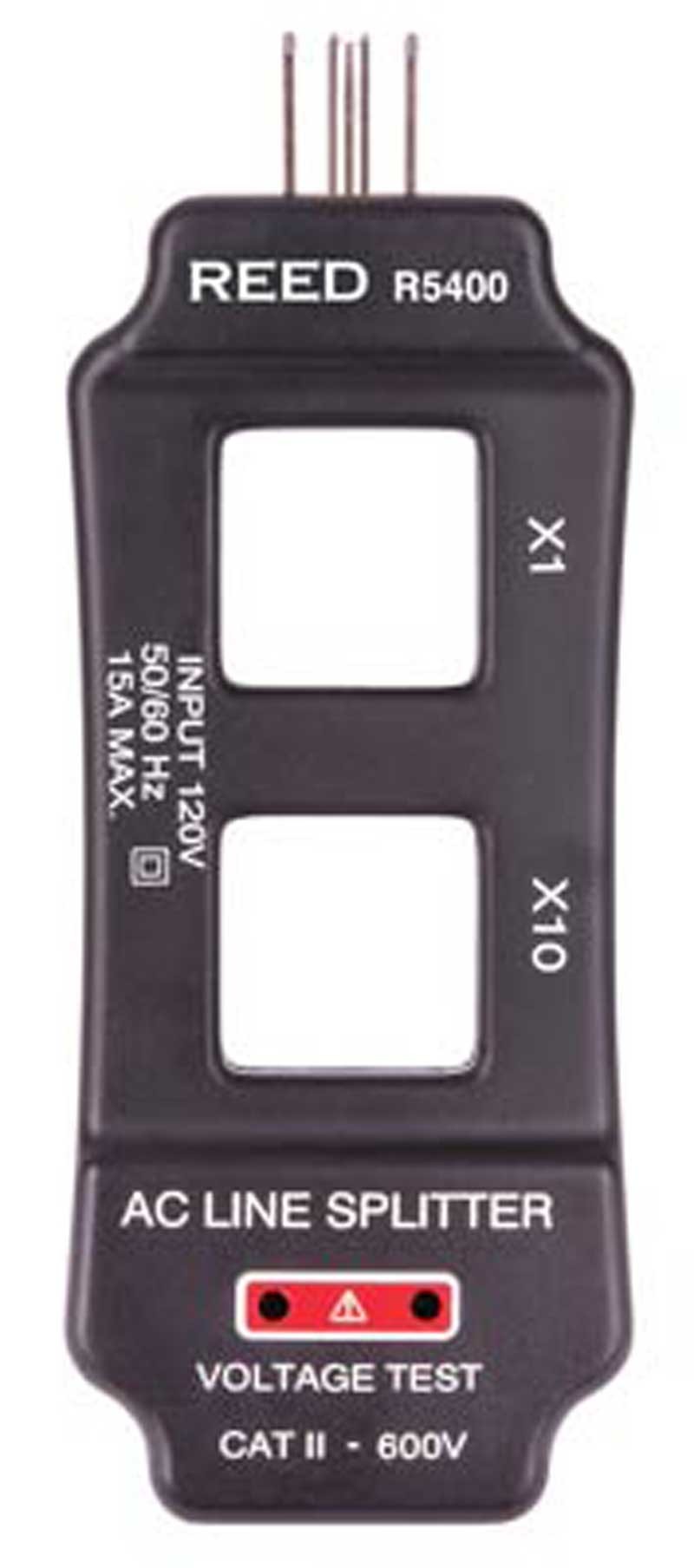

REED R5400 Line Splitter
Model: R5400 | UPC: 800837000125
REED R5400 Line Splitter
Model: R5400 | UPC: 800837000125
Provides safe measurements of current without the need to separate conductors.
REED R5400 Offers
This AC line splitter enables a clamp meter user to measure AC current on a 2-wire or 3-wire power cord to 15A.
Features
- Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
- Fits clamp jaw size 0.75" (19mm) and above
- Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
- Two measurement sensitivity positions (1X and 10X)
- Voltage check function
- Cat. II 600V safety rating
REED R5400 Specifications
| Voltage | 120V |
| Frequency Range | 50 to 60Hz |
| Current Max | 15A |
| Wire Compatibility | 2-wire or 3-wire |
| Overvoltage Category | CAT. II 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 5.3 x 2 x 1" (133 x 51 x 25mm) |
| Weight | 5.8oz (165g) |
What's included with the REED R5400
- REED R5400 Line Splitter
How To: Use a Line Splitter to Measure Current/Amperage
A quick and easy step-by-step guide on how to measure the current from your outlets using a line splitter. For the purpose of this video, we'll be using the R5400 AC Line Splitter and the R5020 AC Clamp Meter. These steps will work for most line splitters.
Ideal Applications for the REED R5400

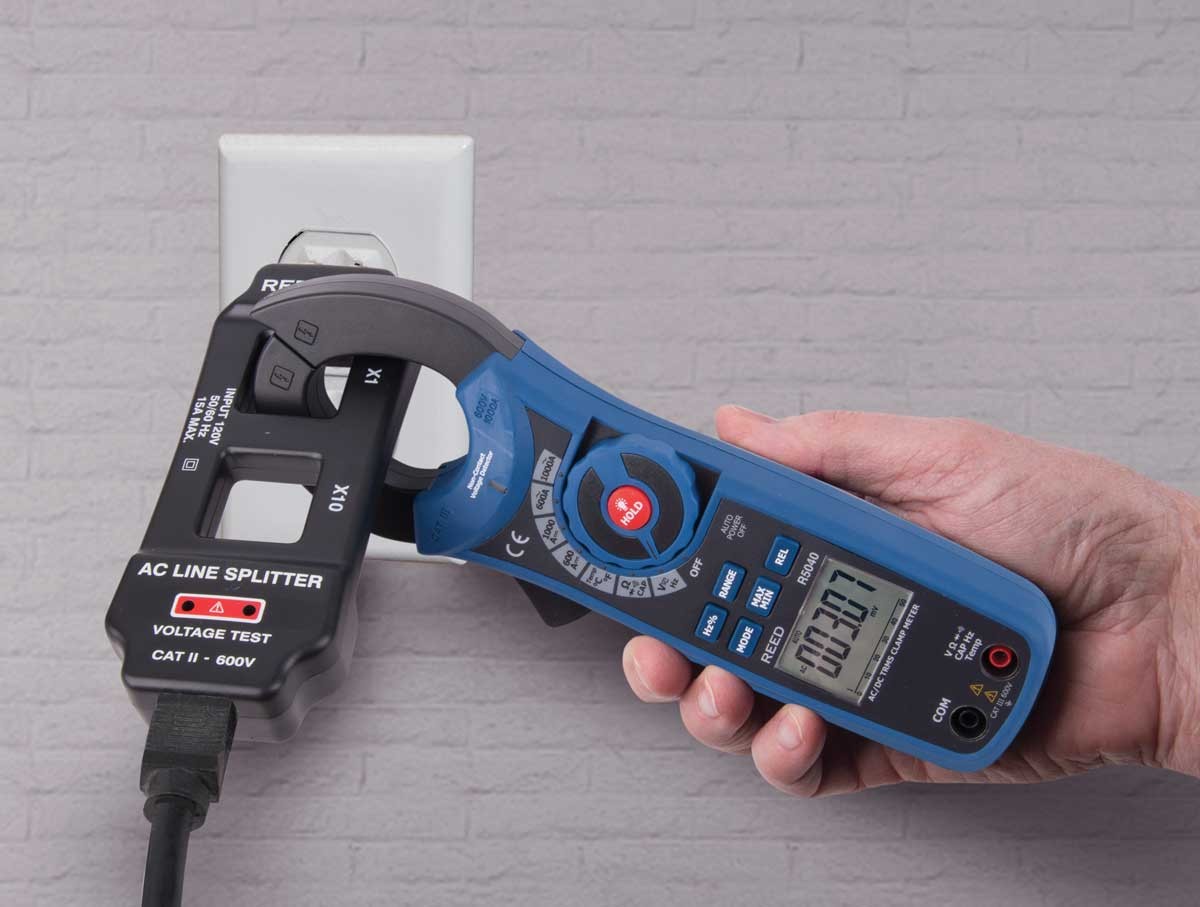

Testing current on 110V receptacle.
datasheet for the REED R5400 Line Splitter
manual for the REED R5400 Line Splitter
Brochure of our REED Electrical Maintenance products
