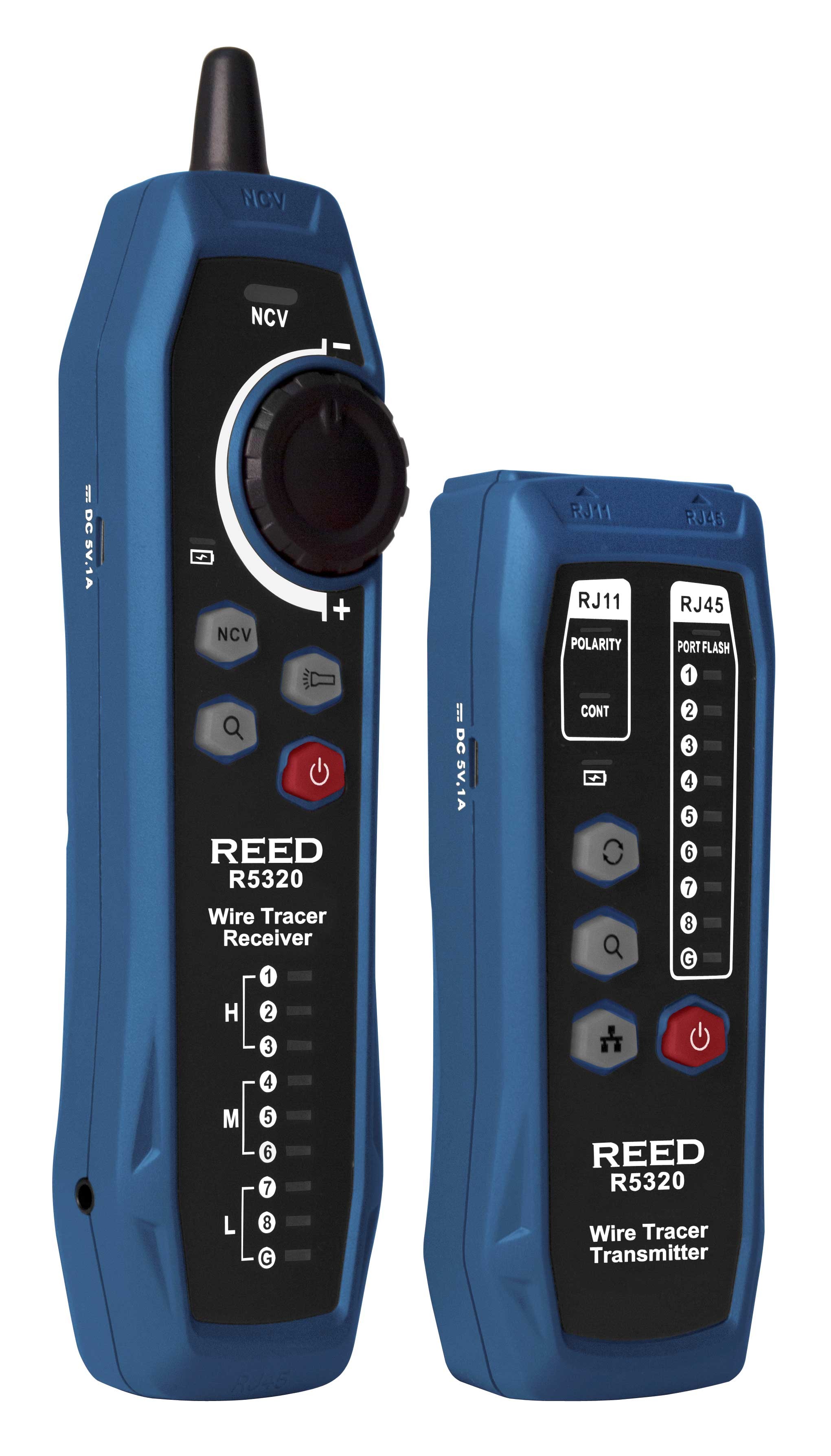

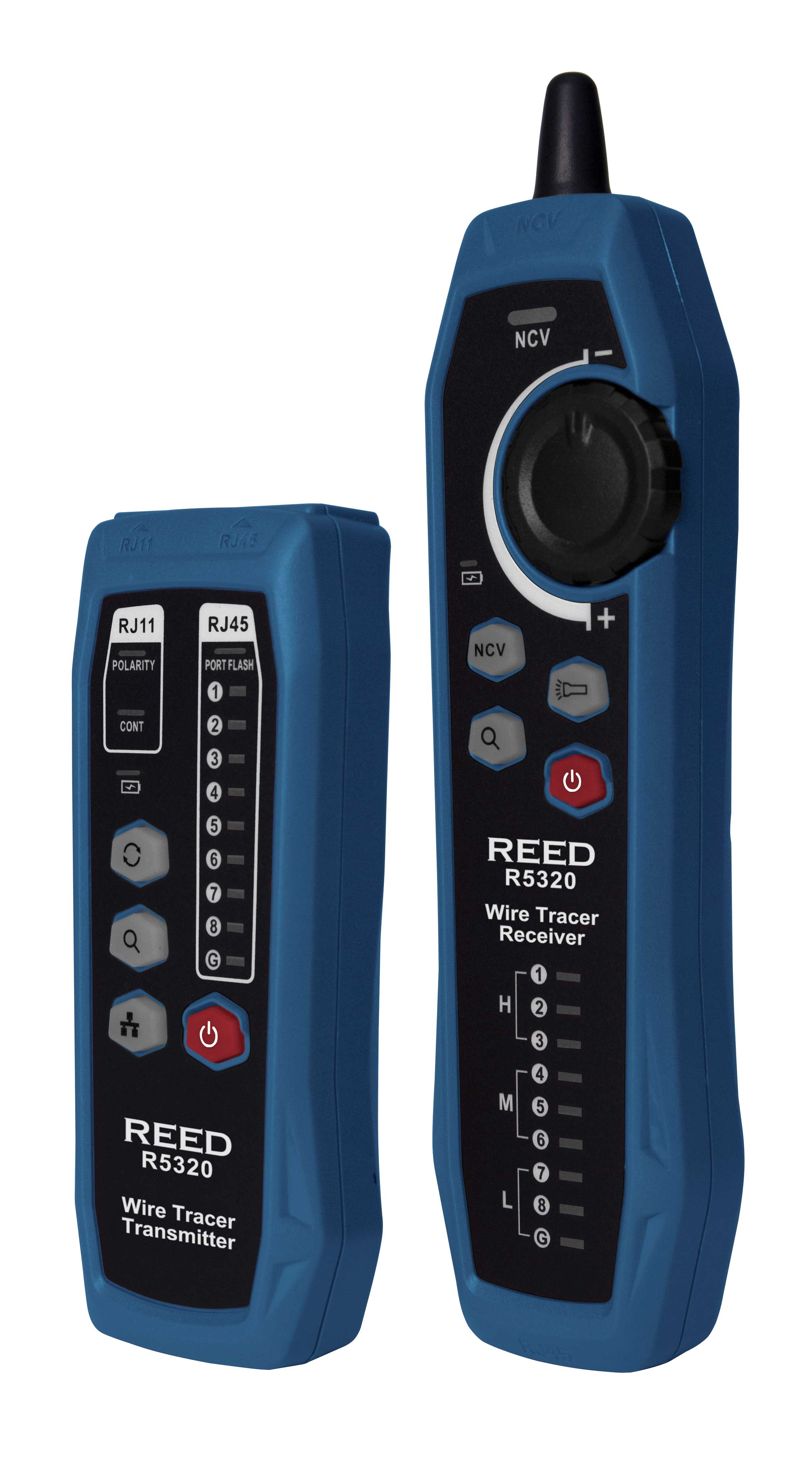

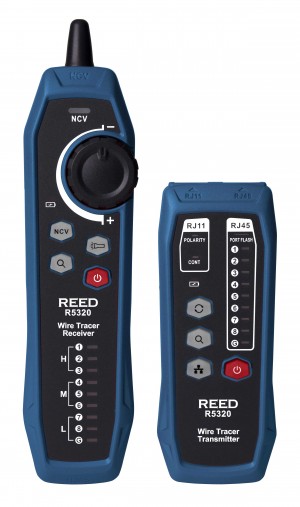

REED R5320 Wire Tracer and Circuit Testing Kit
Model: R5320 | UPC: 800837005434
REED R5320 Wire Tracer and Circuit Testing Kit
Model: R5320 | UPC: 800837005434
Multi-purpose intelligent line tracer/tracker identifies and validates cables from source to termination quickly and accurately.
REED R5320 Offers
This versatile wire tracer is able to identify and test a variety of wires including RJ45 (Ethernet), RJ11 (Telephone) and any other non-energized wire with the included alligator clip adapter. The R5320 Wire Tracer and Circuit Testing Kit can perform a number of functions including; identifying and locating wires, cable/line connection validation, verifying telephone line continuity and line polarity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.
Features
- Test modes include; identifying and locating wires, validating cable/line connections, verifying telephone line continuity/line polarity
- Modular adapters provide direct connection to RJ45 and RJ11 wiring
- Alligator clip adapter allows for easy connection to non-terminated cables
- Adjustable sensitivity wheel improves wire identification and eliminates false detection
- Visual (flashing LEDs) and audible (pulsating beeper) indicators
- Integrated flashlight supports applications in low lit environments
- Built-in non-contact voltage detector
- Earphone jack for loud environments (earphones sold separately)
- Rechargeable batteries
- Low battery indicator and auto shut-off
REED R5320 Specifications
| Testing Modes | RJ45 (Ethernet) Network cable tracing RJ11 (Telephone) Line tracing Miscellaneous Line/wire tracing (using RJ11/alligator clip adapter) RJ45 (Ethernet) Network cable validation RJ11 (Telephone) Line validation Non-contact voltage detector |
| Transmitter | |
| Port Flashing | Port flashing and wire tracking can be turned on at same time |
| Wire Tracking Signal Frequency | 125kHz |
| Test Speed | Fast (2Hz); Slow (1Hz) |
| Network Wire | Shielded/Unshielded |
| Open-Short Circuit Test | Load <9kΩ: Short Load >17kΩ: Open |
| Open Polarity Test | Test range: DC: 5 to 70V or -70 to -5V |
| Input Protection | 60VDC |
| Receiver | |
| Wire Tracking Sensitivity | RJ11 ≤9842' (3000m) RJ45 ≤328' (100m) |
| Input Impedance | >100MΩ |
| General Specifications | |
| Signal Mode | Modulation signal (125kHz) |
| Visual Indicator | Yes (LEDs) |
| Audible Indicator | Yes (Pulsating beeper) |
| Sensitivity Settings | Yes (Adjustable wheel) |
| Compatible Wire Type | RJ-11, RJ-45, Alligator clips for connection to non-terminated wire |
| Non-Contact Voltage Detector | Yes (40 to 1000VAC) |
| Earphone Jack | Yes (3.5mm) |
| Built-in Flashlight | Yes |
| Auto Shut-off | Transmitter: Yes (after 60 mins) Receiver: Yes (after 10 mins) |
| Power Supply | 1050mAh rechargeable Li-ion battery |
| Charging Time | Approx. 2 hours (Micro-USB) |
| Low Battery Indicator | Yes |
| Battery Life | Transmitter: >8 hours Receiver: >5 hours |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Operating Humidity Range | 20 to 75% |
| Operating Altitude | <6561' (2000m) |
| Product Certifications | CE, RoHS |
| Dimensions | Transmitter: 5.1 x 2 x 1.1" (130 x 51 x 28mm) Receiver: 7.8 x 1.9 x 1.3" (197 x 48 x 34mm) |
| Weight | Transmitter: 3.4oz (95g) Receiver: 4.5oz (127g) |
What's included with the REED R5320
- Transmitter
- Receiver
- Micro-USB Charging Cable
- RJ11 Adapter Cable
- RJ45 Adapter Cable
- RJ11 Alligator Clip Adapter Cable
- Carrying Case
REED R5320 Wire Tracer and Circuit Testing Kit
Quickly identify and validate cables with the R5320 wire tracer and circuit testing kit! Get everything you need to trace and test wires safety in this kit which includes the transmitter, the receiver, a micro-USB charging cable, an RJ11 and RJ45 adapter cable, an RJ11 alligator clip adapter cable as well as a carrying case to help keep it all in one place! Cable identification and validation has never been easier; the transmitter has three modes that allow you to: -Identify and locate wires -Validate cable/line connections -Verify telephone line continuity/line polarity
Ideal Applications for the REED R5320
- IT professionals cable installation/labelling and troubleshooting
- Telecom and Datacom technicians
- Identify and locate non-energized wires in walls, ceilings, and floors
