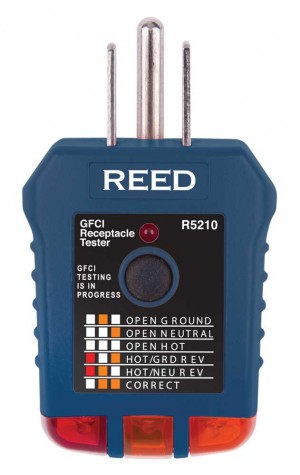

REED R5210 Receptacle Tester with GFCI
Model: R5210 | UPC: 800837004468
REED R5210 Receptacle Tester with GFCI
Model: R5210 | UPC: 800837004468
Check the status of and troubleshoot 3-wire circuits and GFCI receptacles.
REED R5210 Offers
This outlet tester quickly identifies faulty wiring. Plug the instrument into the receptacle under test and match the light pattern to the indicator chart to determine the fault. The R5210 features a built-in GFCI test to quickly verify GFCI outlets are functioning properly.
Features
- Compact design
- Detects most common 3-wire receptacle issues
- LED indicators identify 5 wiring faults
- Status indicator chart
- GFCI trip test
REED R5210 Specifications
| Voltage Range | 110 to 125V AC |
| Frequency Range | 50 to 60Hz |
| Current Max | 15A |
| Receptacle Compatibility | 3-wire with GFCI |
| Product Certifications | CE, UL |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 3 x 2 x 1" (75 x 51 x 25mm) |
| Weight | 1oz (23g) |
What's included with the REED R5210
- REED R5210 Receptacle Tester with GFCI
R5210 Receptacle Tester with GFCI
The R5210 is capable of detecting the most common 3-wire receptacle issues. Its compact design, LED indicators identifying 5 wiring faults & GFCI trip test make it a must-have!
