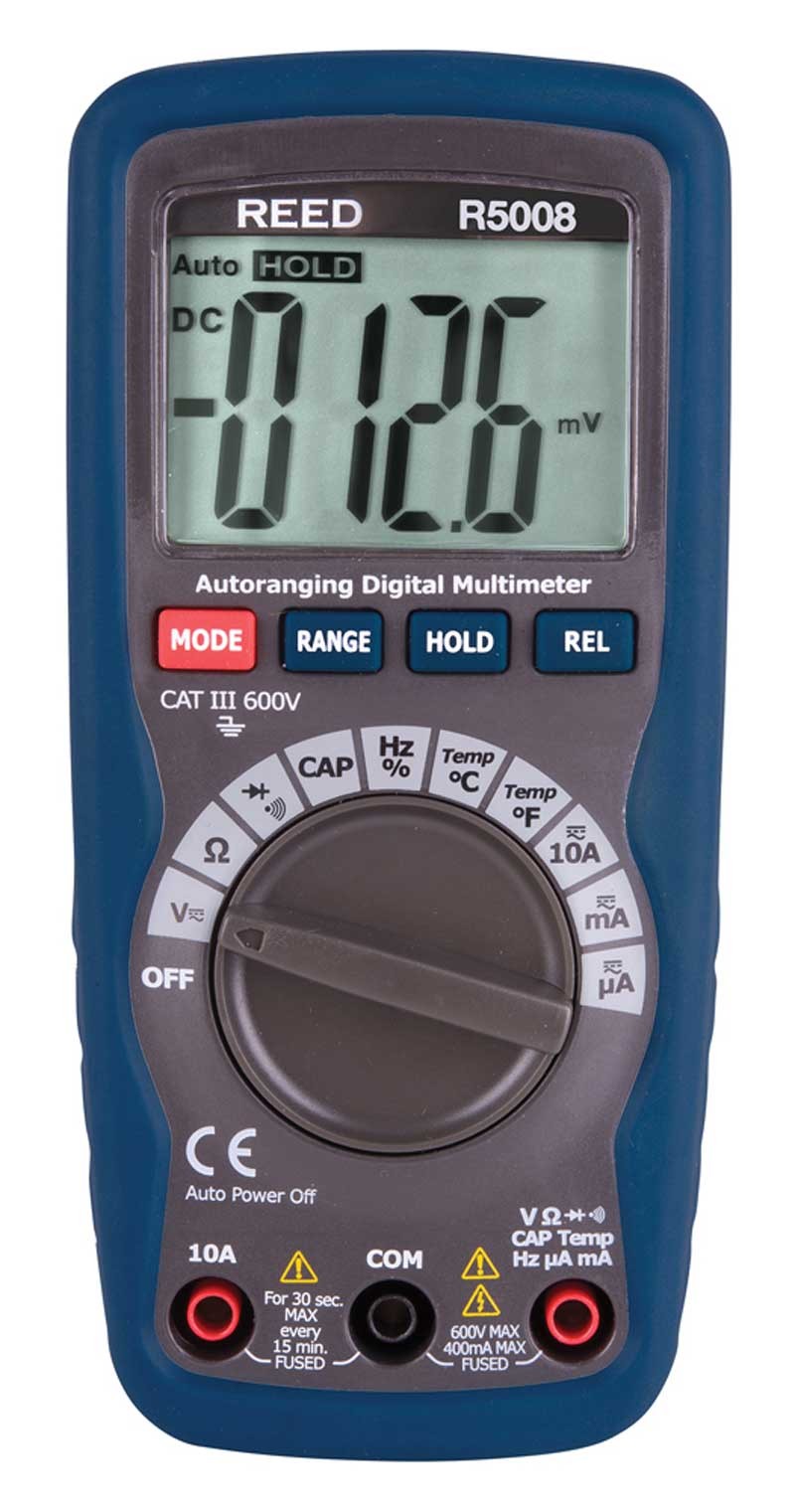

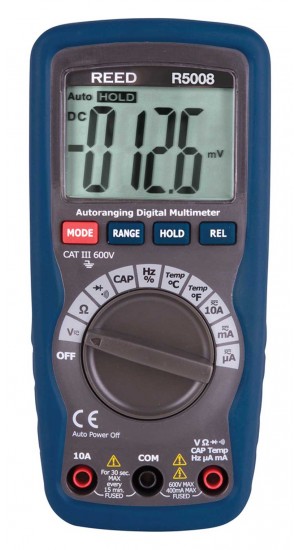

REED R5008 Compact Digital Multimeter with Temperature
Model: R5008 | UPC: 800837001252
REED R5008 Compact Digital Multimeter with Temperature
Model: R5008 | UPC: 800837001252
Compact autoranging digital multimeter with 11 functions.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R5008 Offers
This autoranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the R5008 includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements.
Features
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Diode check and continuity functions
- Relative and data hold functions
- Double molded plastic housing
- Cat. III 600V safety rating
REED R5008 Specifications
| AC/DC Voltage | |
| Range | AC: 400mV, 4, 40, 400, 600V DC: 400mV, 4, 40, 400, 600V |
| Accuracy | AC: 400mV ±(15% rdg. + 15 dgt.) 4V ±(1.2% rdg. + 3 dgt.) 40, 400V ±(1.5% rdg. + 3 dgt.) 600V ±(2.0% rdg. + 4 dgt.) DC: 400mV ±(0.05% rdg. + 2 dgt.) 4, 40, 400V ±(1.2% rdg. + 2 dgt.) 600V ±(1.5% rdg. + 2 dgt.) |
| Resolution | AC: 0.1mV, 1, 10, 100V DC: 0.1mV, 1, 10, 100V |
| AC/DC Current | |
| Range | 400, 4000µA, 40, 400mA, 10A |
| Accuracy | AC: 400µA ±(1.5% rdg. + 5 dgt.) 4000µA/ 40, 400mA ±(1.8% rdg. + 5 dgt.) 10A ±(3.0% rdg. + 7 dgt.) DC: 400µA ±(1.0% rdg. + 3 dgt.) 4000µA/ 40, 400mA ±(1.5% rdg. + 3 dgt.) 10A ±(2.5% rdg. + 5 dgt.) |
| Resolution | 0.1, 1µA, 10, 100mA, 1A |
| Resistance | |
| Range | 400Ω, 4, 40, 400kΩ, 4, 40MΩ |
| Accuracy | 400Ω: ±(1.2% rdg. + 4 dgt.) 4kΩ: ±(1.0% rdg. + 2 dgt.) 40, 400kΩ, 4MΩ: ±(1.2% rdg. + 2 dgt.) 40MΩ: ±(2.0% rdg. + 3 dgt.) |
| Resolution | 0.1Ω, 1, 10, 100kΩ, 1, 10MΩ |
| Capacitance | |
| Range | 4, 40, 400nF, 4, 40, 200µF |
| Accuracy | 4nF: ±(5.0% rdg. + 50 dgt.) 40nF: ±(5.0% rdg. + 7 dgt.) 400nF/4, 40uF: ±(3% rdg. + 5 dgt.) 200µF: ±(5% rdg. + 5 dgt.) |
| Resolution | 1, 10pF, 0.1, 1, 10nF, 0.1µF |
| Frequency | |
| Range | 9.999, 99.99, 999.9Hz, 9.999, 99.99, 999.9KHz, 9.999MHz |
| Accuracy | 9.999, 99.99Hz: ±(1.5% rdg. + 5 dgt.) 999.9Hz, 9.999, 99.99, 999.9KHz: ±(1.2% rdg. + 3 dgt.) 9.999MHz: ±(1.5% rdg. + 4 dgt.) |
| Resolution | 0.001, 0.01, 0.1, 1, 10, 100Hz, 1kHz |
| Temperature | |
| Range | -4 to 1400°F (-20 to 760°C) |
| Accuracy | ±(3.0% rdg. + 9°F) ±(3.0% rdg. + 5°C) |
| Resolution | 1°F, 1°C |
| General Specifications | |
| Range Selection | Autoranging/Manual |
| Display | 4,000 count LCD display |
| Display Hold | Yes |
| Peak Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Continuity Check | Audible signal if resistance ≤150Ω |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power Supply | 9V Battery |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 5.9 x 2.8 x 1.9" (150 x 70 x 48mm) |
| Weight | 9oz (255g) |

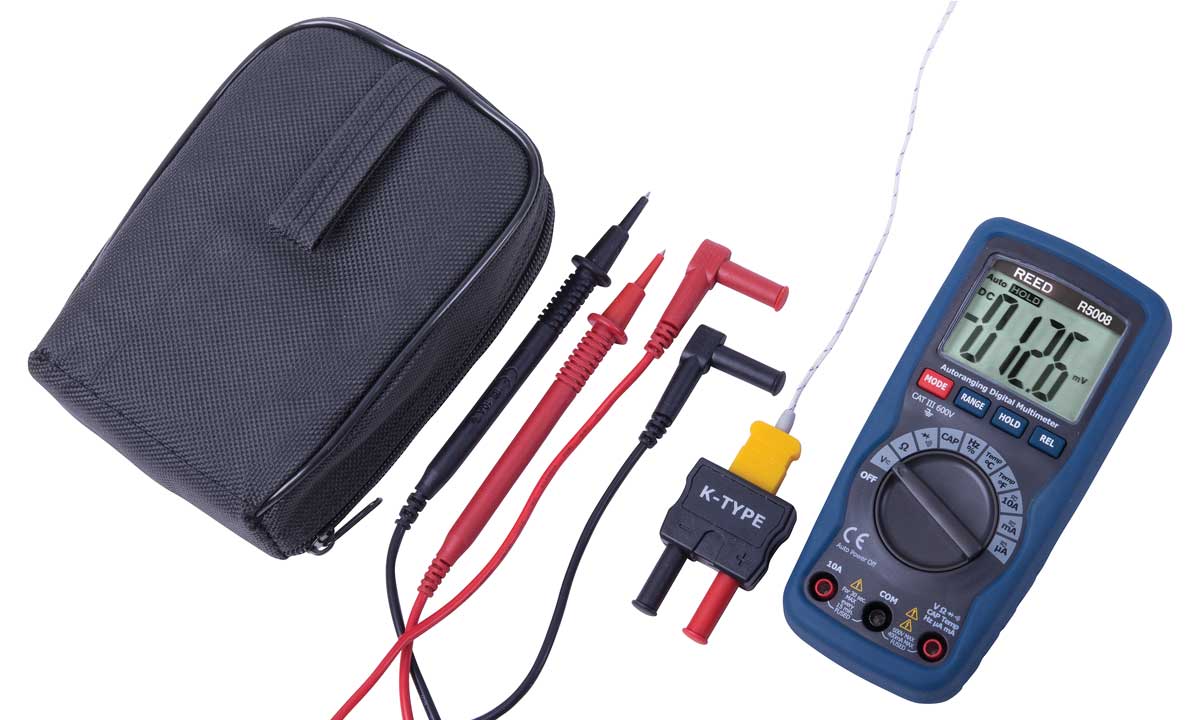

What's included with the REED R5008
- Compact Digital Multimeter
- Temperature Input Adapter
- Thermocouple Wire Probe (Type K)
- Test Leads
- Battery
- Carrying Case
How To: Test for Continuity with a Multimeter
If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters.
Ideal Applications for the REED R5008
- Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
datasheet for the REED R5008 Compact Digital Multimeter with Temperature
manual for the REED R5008 Compact Digital Multimeter with Temperature
