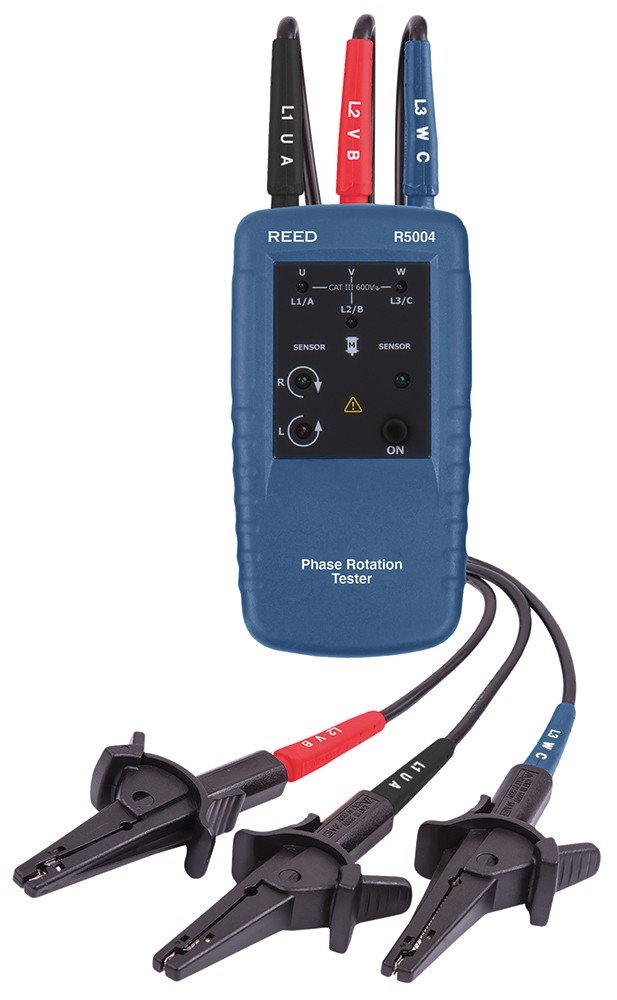

REED R5004 Motor Rotation / 3-Phase Tester-

datasheet manual

Ask an Expert

REED R5004 Motor Rotation / 3-Phase Tester

Model: R5004 | UPC: 800837001214

LEDs display motor rotation and phase status.

REED R5004 Offers

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5004 features a rugged double molded plastic housing and has the ability to identify which of the 3-phases is live.

Features

Tests phase orientation of 3-phase power sources
Indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
LEDs display motor rotation and phase status
Easy to open alligator clips with wide jaws
Durable double molded plastic housing
Cat. III 600V safety rating

REED R5004 Specifications

Nominal Voltage Rotary Direction	1 to 400V AC
Nominal Voltage Phase Indirection	120 to 400V AC
Frequency	2 to 400Hz
General Specifications
Power Supply	9V Battery
Battery Life	Approx. 1 year (regular usage)
Overvoltage Category	CAT. III 600V, CAT. IV 300V
Product Certifications	CE
Operating Temperature	0 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity Range	10 to 80%
Dimensions	5.1 x 2.7 x 1.3" (130 x 68 x 32 mm)
Weight	4.5oz (130g)
