REED R5000 Watt Meter

Model: R5000 | UPC: 800837001177

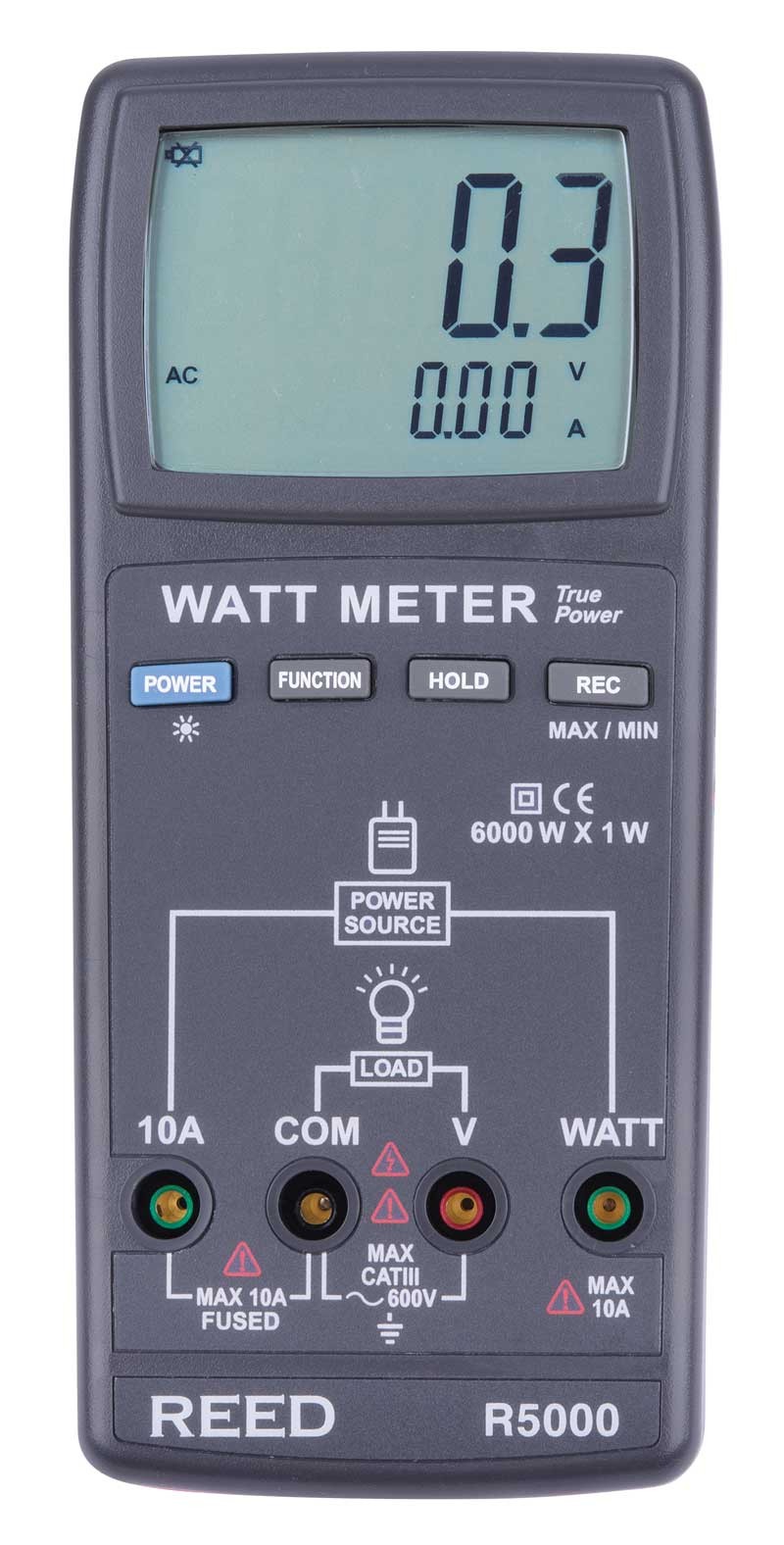

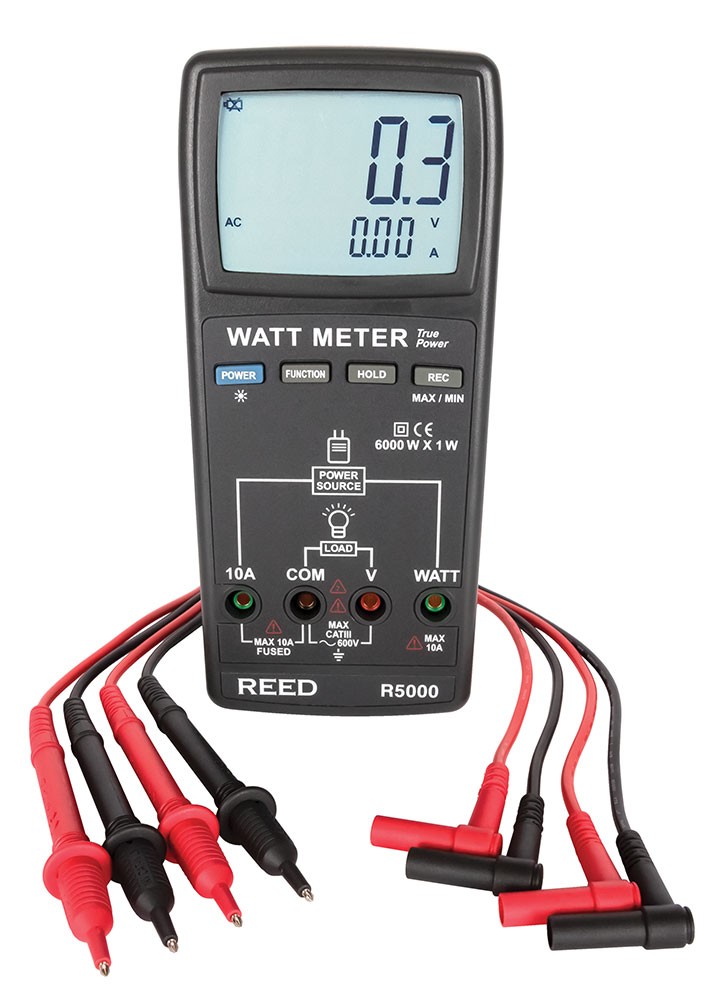

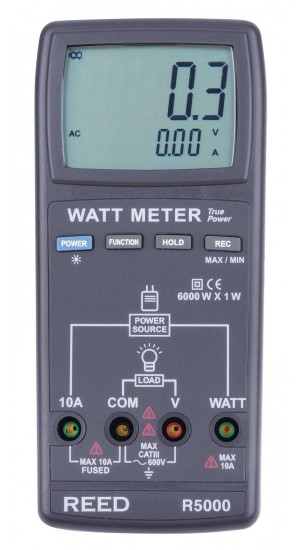

Dual LCD display with backlight simultaneously displays watt and power factor measurements.

REED R5000 Offers

This true RMS watt meter is capable of measuring up to 6000 watts, 600 volts (AC), 10 amps (AC) and power factor. The R5000 features a backlit LCD display and maximum, minimum and data hold functions.

Features

Measures Watt, AC Voltage/Current and Power Factor
Backlit dual LCD display
Max/Min and Data Hold Functions
Cat. III 600V safety rating
Low battery indicator and auto shut off

REED R5000 Specifications

Watt
Range	0 to 6000W
Resolution	1W
Accuracy	±(1% + 5W)
AC Voltage
Range	0 to 600V
Resolution	0.1V
Accuracy	±(0.3%+0.3V)
AC Current
Range	0 to 10A
Resolution	0.01A
Accuracy	±(0.3% + 0.03A)
Power Factor
Range	0 to 1.0
Resolution	0.01
Accuracy	±(1% + 2d)
General Specifications
Display	Dual LCD display
Max/Min and Data Hold Functions	Yes
Backlit Display	Yes
Kickstand	Yes
Auto Power Off	Yes (after 10 minutes)
Power Supply	9V Battery or AC Adapter (Optional)
Low Battery Indicator	Yes
Overvoltage Category	CAT. III 600V
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	7.5 x 3.5 x 1.6" (190 x 88 x 40mm)
Weight	0.88lb (398g)
