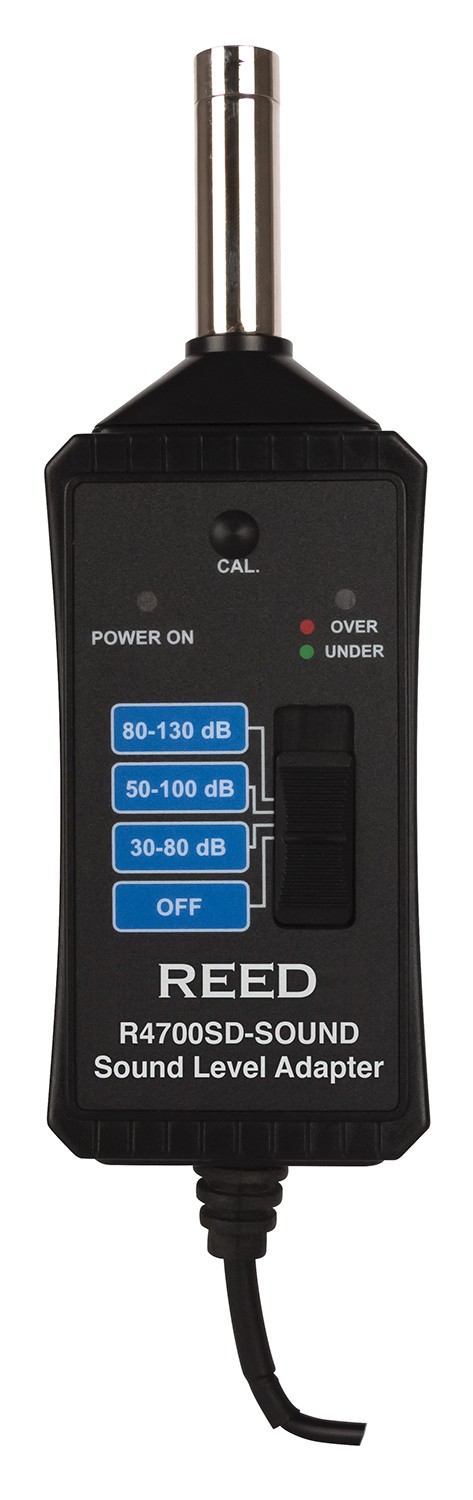

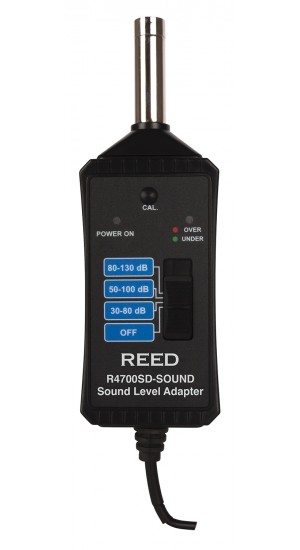

REED R4700SD-SOUND Sound Level Adapter
Model: R4700SD-SOUND | UPC: 800837004802
REED R4700SD-SOUND Sound Level Adapter
Model: R4700SD-SOUND | UPC: 800837004802
This adapter cooperates with the R4700SD & SD-9300 Data Logging Environmental Meters as a professional sound level meter. The frequency weighting networks are designed to meet the IEC 61672 class 2.
REED R4700SD-SOUND Offers
Cooperates with the R4700SD & SD-9300 Data Logging Environmental Meter as a professional sound level meter.
Features
- 30 to 130 dB, 3 ranges
- Frequency weighting networks are designed to meet the IEC 61672 class 2
- A weighting networks are conformity to standards
- Fast Time weighting dynamic characteristic modes
- Condenser microphone for high accuracy & long-term stability
- Over/Under indicator
- Low battery indicator
- Electric condenser microphone
- Size of microphone: 1/2" standard size
REED R4700SD-SOUND Specifications
| Measurement Range 1 | 30 to 80 dB |
| Measurement Range 2 | 50 to 100 dB |
| Measurement Range 3 | 80 to 130 dB |
| Output | 10 mV per 1 dB |
| Battery | DC 9V Battery |
| Power Consumption | Approx. DC 12 mA |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | Less than 80% RH |
| Weight | 220 g/0.49 lb (including battery) |
| Dimensions | Main Unit: 107 x 53 x 29 mm ( 4.2 x 2.1 x 1.1") Probe: Dia. 12.7 mm x 58 mm ( Dia. 0.5 inch x 2.28") |
What's included with the REED R4700SD-SOUND
- REED R4700SD-SOUND Sound Level Adapter
Measure various temperatures with the R4700SD Data Logging Environmental Meter
Need something that measures ambient temperature, contact temperature, relative humidity, and light levels? The R4700SD Environmental Meter will get the job done! It's a 6-in-1 meter that is capable of also capturing sound level measurements using the optional R4700SD-SOUND adapter. This data logging environmental meter also features data hold, Max/Min functions, and an easy-to-read backlit LCD display.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
