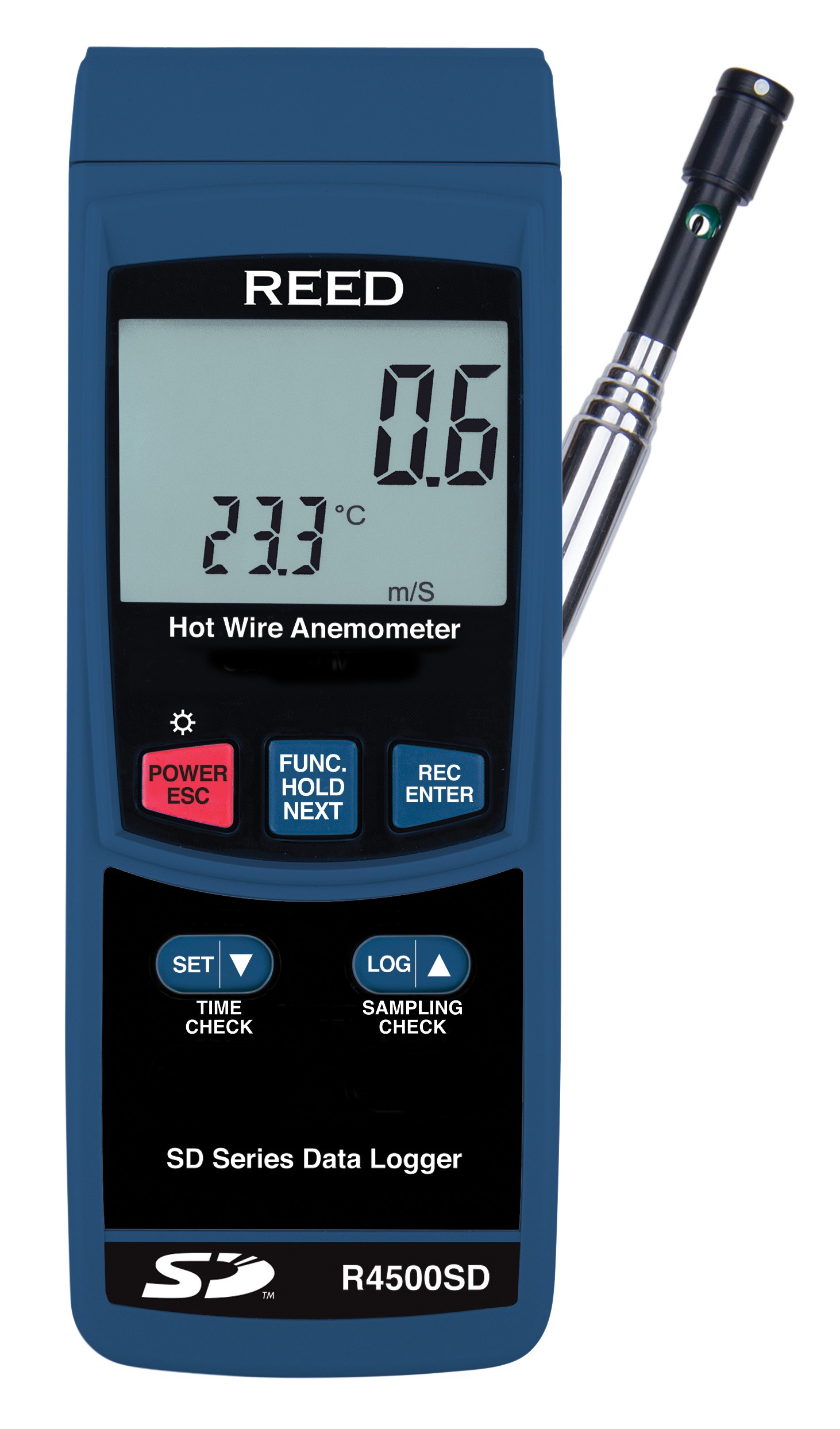

REED R4500SD Data Logging Hot Wire Thermo-Anemometer
Model: R4500SD | UPC: 800837004741
REED R4500SD Data Logging Hot Wire Thermo-Anemometer
Model: R4500SD | UPC: 800837004741
Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.
REED R4500SD Offers
The R4500SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
- Contact temperature measurement with type J/K thermocouple option
- Thermistor sensor for fast air temperature readings
- Hot wire probe for precise low air velocity measurements

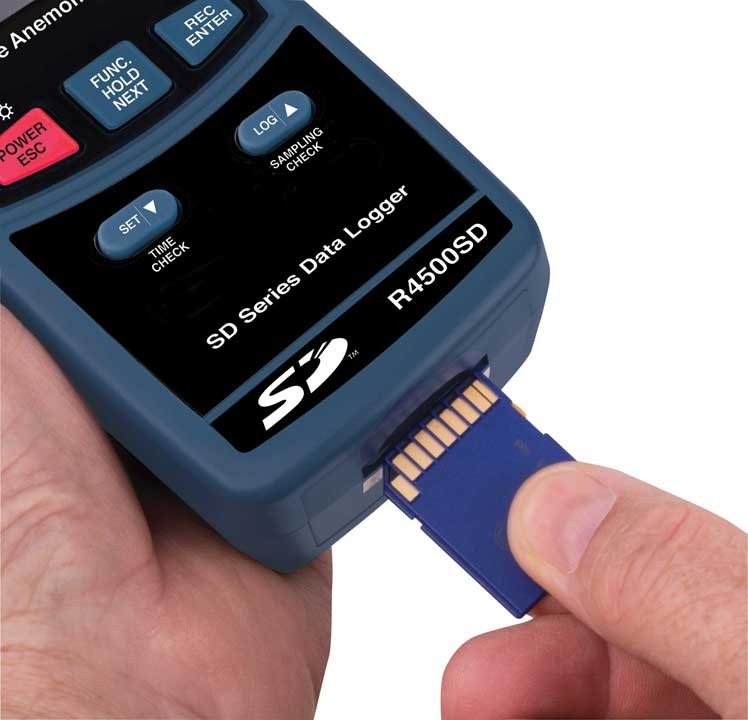

- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R4500SD Specifications
| Type | Hot Wire |
| Measuring Ranges | fpm: 40 to 4921 m/s: 0.2 to 25 km/h: 0.7 to 90 mph: 0.5 to 55.9 knots: 0.4 to 48.6 |
| Air Temperature | 32 to 122°F (0 to 50°C) |
| Type K Temperature | -148.0 to 2372.0°F (-100.0 to 1300°C) |
| Type J Temperature | -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Accuracy | Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot) Air Temperature: ±0.8°C (1.5°F) Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | fpm: 1 m/s, km/h, mph, knot: 0.1 |
| Temperature | 0.1°F/°C |
| Telescope Probe Length | 11 to 37" (280 to 940mm) |
| Response Time | <1 second |
| Display | 5-digit, Dual LCD Display |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38mm) |
| Weight | 1.13lb (515g) |

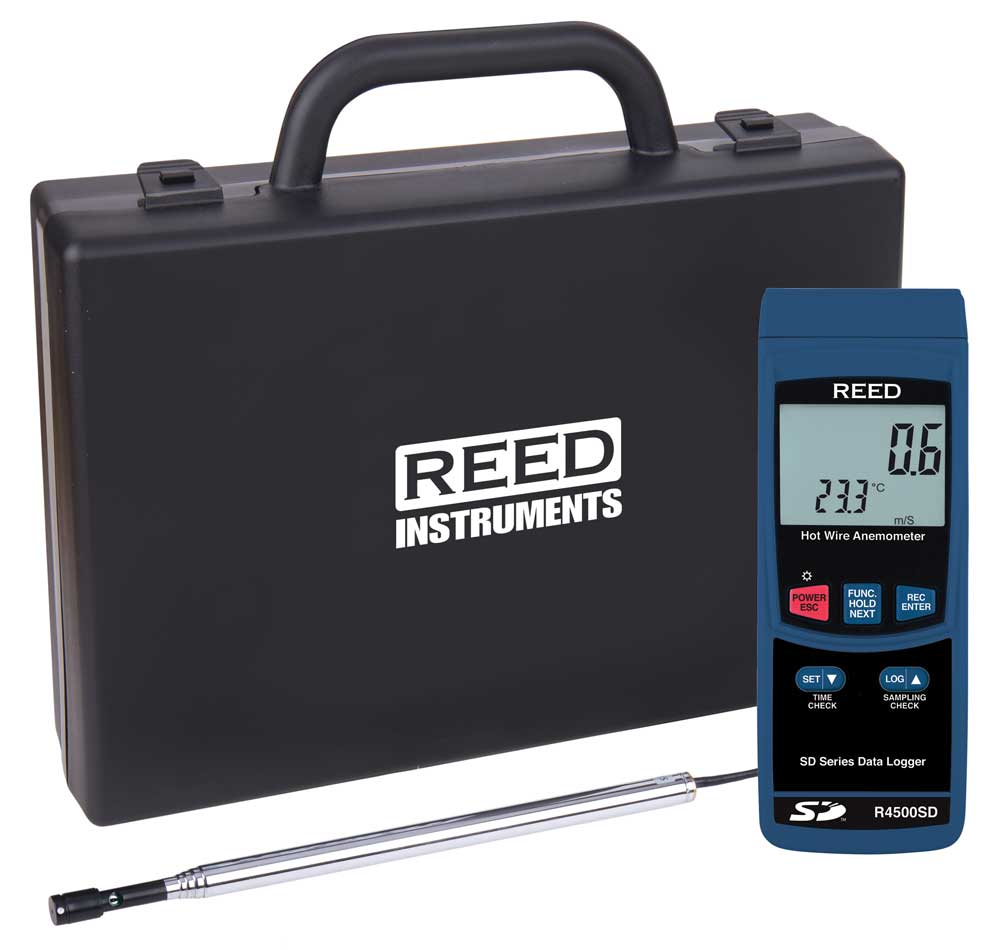

What's included with the REED R4500SD
- Data Logging Hot Wire Thermo-Anemometer
- Telescopic Hot Wire Probe
- Hard Carrying Case
- Batteries
Measure air velocity and air temperature with the R4500SD Data Logging Hot Wire Thermo-Anemometer
Anemometers measure wind speed and are important tools for environmental specialists, who study the way air moves. The R4500SD is a real time data logging thermo-anemometer with an integrated SD memory card that both measures and records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input. This hot wire thermo-anemometer features a thermistor sensor for fast air temperature readings and a hot wire probe for precise low air velocity measurements to save you both time & money. Check out 0:35 in the video to see the many measurements it's capable or recording. Record data, save it on an SD card and quickly generate an Excel file - See 1:01.1. Insert memory card 2. Record the needed data 3. Insert memory card in PC and open with Excel. The REED R4500SD Data Logging Hot Wire Thermo-Anemometer comes complete with a hot wire probe, carrying case and batteries. This meter also has a full list of optional accessories… View the complete list of accessories at 1:34. Want to know more about this meter? View a quick list of the specifications at 1:40.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R4500SD
- HVAC/R and refrigeration servicing
- Detecting filter blockage
- Condensers and chillers
