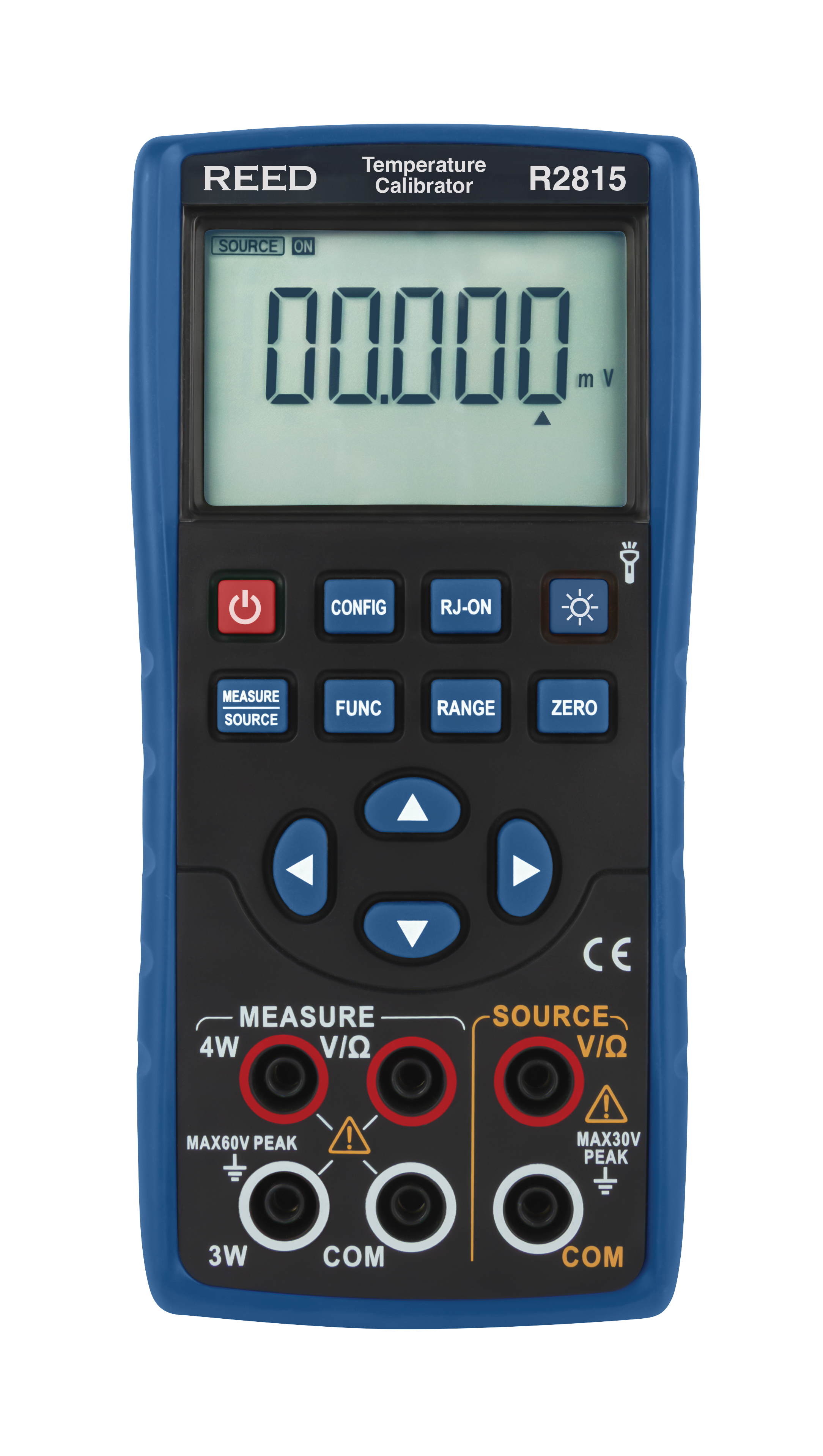

REED R2815 Temperature Calibrator
Model: R2815 | UPC: 800837007025
REED R2815 Temperature Calibrator
Model: R2815 | UPC: 800837007025
Sources and measures 11 thermocouple types and 5 RTD types and features a large, easy-to-read display.
REED R2815 Offers
The R2815 Temperature Calibrator has been designed to source and measure 11 thermocouple types (A, B, C, D, E, J, K, N, R, S, T) and 5 RTD (3-wire) types, including Pt100, Pt200, Pt500, Pt1000, and Cu50. It also measures volts and ohms, with exceptional accuracy supported by internal cold junction compensation.
Features
- Accurately sources and measures 11 thermocouple types, including A, B, C, D, E, J, K, N, R, S, T
- Supports 5 RTD (3-wire) types, including Pt100, Pt200, Pt500, Pt1000 and Cu50
- Source and measure Volts and Ohms
- Internal cold junction compensation for improved accuracy
- Easy to read 6-digit LCD display
- Zero adjustment button
- Built-in LED flashlight
- User selectable unit of measure (°F/°C)
- Low battery indicator and auto shut off
REED R2815 Specifications
| Measure Function | |
| DCV | Range: 100mV Measurement Range: -110 to 110mV Resolution: 0.01mV Accuracy: 0.05% rdg. +0.03mV Range: 1V Measurement Range: -1.1 to 1.1V Resolution: 0.0001V Accuracy: 0.05% rdg. +0.3mV Range: 30V Measurement Range: -30V to 30V Resolution: 0.001V Accuracy: 0.02% rdg. +2mV |
| OHM | Range: 500Ω Measurement Range: 0 to 500Ω Resolution: 0.01Ω Accuracy: 0.05% rdg. +0.2Ω Range: 5KΩ Measurement Range: 0 to 5KΩ Resolution: 0.0001KΩ Accuracy: 0.05% rdg. +2Ω |
| TC Measure Function | |
| A | Range: 0 to 2912°F (0 to 1600°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) Range: 2912 to 3632°F (1600 to 2000°C) Resolution: 1°F (1°C) Accuracy: ±5.4°F (3.0°C) Range: 3632 to 4532°F (2000 to 2500°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| B | Range: 1112 to 1472°F (600 to 800°C) Resolution: 1°F (1°C) Accuracy: ±4.0°F (2.2°C) Range: 1472 to 1832°F (800 to 1000°C) Resolution: 1°F (1°C) Accuracy: ±3.4°F (1.9°C) Range: 1832 to 3308°F (1000 to 1820°C) Resolution: 1°F (1°C) Accuracy: ±2.5°F (1.4°C) |
| C | Range: 0 to 2912°F (0 to 1600°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) Range: 2912 to 3632°F (1600 to 2000°C) Resolution: 1°F (1°C) Accuracy: ±5.4°F (3.0°C) Range: 3632 to 4190°F (2000 to 2310°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| D | Range: 0 to 212°F (0 to 100°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) Range: 212 to 518°F (100 to 270°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) Range: 518 to 2192°F (270 to 1200°C) Resolution: 1°F (1°C) Accuracy: ±4.0°F (2.2°C) Range: 2192 to 4190°F (1200 to 2310°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| E | Range: -58 to 32°F (-50 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.6°F (0.9°C) Range: 32 to 1832°F (0 to 1000°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2.7°F (1.5°C) |
| J | Range: -76 to 32°F (-60 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) Range: 32 to 2192°F (0 to 1200°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2.7°F (1.5°C) |
| K | Range: -148 to 32°F (-100 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) Range: 32 to 2501.6°F (0 to 1372°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2.4°F (1.3°C) |
| N | Range: -328 to 32°F (-200 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2.7°F (1.5°C) Range: 32 to 2372°F (0 to 1300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±2.4°F (1.3°C) |
| R | Range: 0 to 3212.6°F (0 to 1767°C) Resolution: 1°F (1°C) Accuracy: ±4.5°F (2.5°C) |
| S | Range: 0 to 3212.6°F (0 to 1767°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) |
| T | Range: -148 to 32°F (-100 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) Range: 32 to 752°F (0 to 400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| RTD (3-Wire) Measure Function | |
| Pt100 385 | Range: -328 to 32°F (-200 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 32 to 752°F (0 to 400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) Range: 752 to 1472°F (400 to 800°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.4°F (0.8°C) |
| Pt200 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.4°F (0.8°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.6°F (0.9°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) |
| Pt500 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.7°F (0.4°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| Pt1000 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.3°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| Cu50 | Range: -58 to 302°F (-50 to 150°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| Source Function | |
| DCV | Range: 100mV Output Range: -10 to 110mV Resolution: 0.01mV Accuracy: 0.05% rdg. +0.03mV Range: 1V Output Range: -0.1 to 1.1V Resolution: 0.0001V Accuracy: 0.05% rdg. +0.3mV |
| OHM | Range: 400Ω Output Range: 0 to 400Ω Resolution: 0.1Ω Accuracy: 0.05% rdg. +0.2Ω Range: 4KΩ Output Range: 0 to 4KΩ Resolution: 1Ω Accuracy: 0.05% rdg. +2Ω |
| TC Source Function | |
| A | Range: 0 to 2912°F (0 to 1600°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) Range: 2912 to 3632°F (1600 to 2000°C) Resolution: 1°F (1°C) Accuracy: ±4.0°F (2.2°C) Range: 3632 to 4532°F (2000 to 2500°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| B | Range: 1112 to 1472°F (600 to 800°C) Resolution: 1°F (1°C) Accuracy: ±2.7°F (1.5°C) Range: 1472 to 3308°F (800 to 1820°C) Resolution: 1°F (1°C) Accuracy: ±2.0°F (1.1°C) |
| C | Range: 0 to 2912°F (0 to 1600°C) Resolution: 1°F (1°C) Accuracy: ±3.6°F (2.0°C) Range: 2912 to 3632°F (1600 to 2000°C) Resolution: 1°F (1°C) Accuracy: ±4.0°F (2.2°C) Range: 3632 to 4190°F (2000 to 2310°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| D | Range: 0 to 212°F (0 to 100°C) Resolution: 1°F (1°C) Accuracy: ±4.7°F (2.6°C) Range: 212 to 518°F (100 to 270°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) Range: 518 to 2192°F (270 to 1200°C) Resolution: 1°F (1°C) Accuracy: ±4.0°F (2.2°C) Range: 2192 to 4190°F (1200 to 2310°C) Resolution: 1°F (1°C) Accuracy: ±4.3°F (2.4°C) |
| E | Range: -328 to -148°F (-200 to -100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: -148 to 1112°F (-100 to 600°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.7°F (0.4°C) |
| J | Range: -328 to -148°F (-200 to -100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: -148 to 1472°F (-100 to 800°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) Range: 1472 to 2192°F (800 to 1200°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| K | Range: -328 to -148°F (-200 to -100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) Range: -148 to 752°F (-100 to 400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: -752 to 2192°F (-400 to 1200°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) Range: -2192 to 2501°F (-1200 to 1372°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.6°F (0.9°C) |
| N | Range: -328 to -148°F (-200 to -100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) Range: -148 to 1652°F (-100 to 900°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) Range: 1652 to 2372°F (900 to 1300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.4°F (0.8°C) |
| R | Range: 0 to 212°F (0 to 100°C) Resolution: 1°F (1°C) Accuracy: ±2.7°F (1.5°C) Range: 212 to 3212°F (100 to 1767°C) Resolution: 1°F (1°C) Accuracy: ±2.7°F (1.5°C) |
| S | Range: 0 to 212°F (0 to 100°C) Resolution: 1°F (1°C) Accuracy: ±2.7°F (1.5°C) Range: 212 to 3212°F (100 to 1767°C) Resolution: 1°F (1°C) Accuracy: ±2.7°F (1.5°C) |
| T | Range: -418 to 32°F (-250 to -400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.6°C) Range: 32 to 752°F (0 to 400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.6°C) |
| RTD (3-Wire) Source Function | |
| Pt100 385 | Range: -328 to 32°F (-200 to 0°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.3°C) Range: 32 to 752°F (0 to 400°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 752 to 1472°F (400 to 800°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.4°F (0.8°C) |
| Pt200 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.4°F (0.8°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.6°F (0.9°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.8°F (1.0°C) |
| Pt500 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.7°F (0.4°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| Pt1000 385 | Range: -328 to 212°F (-200 to 100°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.2°C) Range: 212 to 572°F (100 to 300°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.9°F (0.5°C) Range: 572 to 1166°F (300 to 630°C) Resolution: 0.1°F (0.1°C) Accuracy: ±1.3°F (0.7°C) |
| Cu50 | Range: -58 to 302°F (-50 to 150°C) Resolution: 0.1°F (0.1°C) Accuracy: ±0.5°F (0.6°C) |
| General Specifications | |
| Display | 6-Digit LCD |
| Backlit Display | Yes |
| Kick Stand | Yes |
| Magnetic Hanger Compatible | Yes (R5900 sold separately) |
| Built-In Flashlight | Yes |
| Zero Adjustment Button | Yes |
| Power Supply | 3 AA Batteries |
| Battery Life | Approx. 20 hours |
| Cold Junction Compensation | Yes |
| Auto shut off | Yes (up to 60 minutes/off) |
| Low Battery Indicator | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity Range | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 7.5 x 3.5 x 2.1" (191 x 90 x 53mm) |
| Weight | 17.6oz (500g) |
What's included with the REED R2815
- Temperature Calibrator
- Test Leads
- Alligator Clips
- Thermocouple Adapter
- Batteries
Ideal Applications for the R2815
- Ideal for calibrating devices that use thermocouples as input signals (e.g., meters, controllers, transmitters, data loggers, and recorders)
- Essential for applications requiring precise thermocouple temperature measurements, including:
- Chemical production
- Petroleum refineries
- Manufacturing
- Power production
- Steel and iron industries
