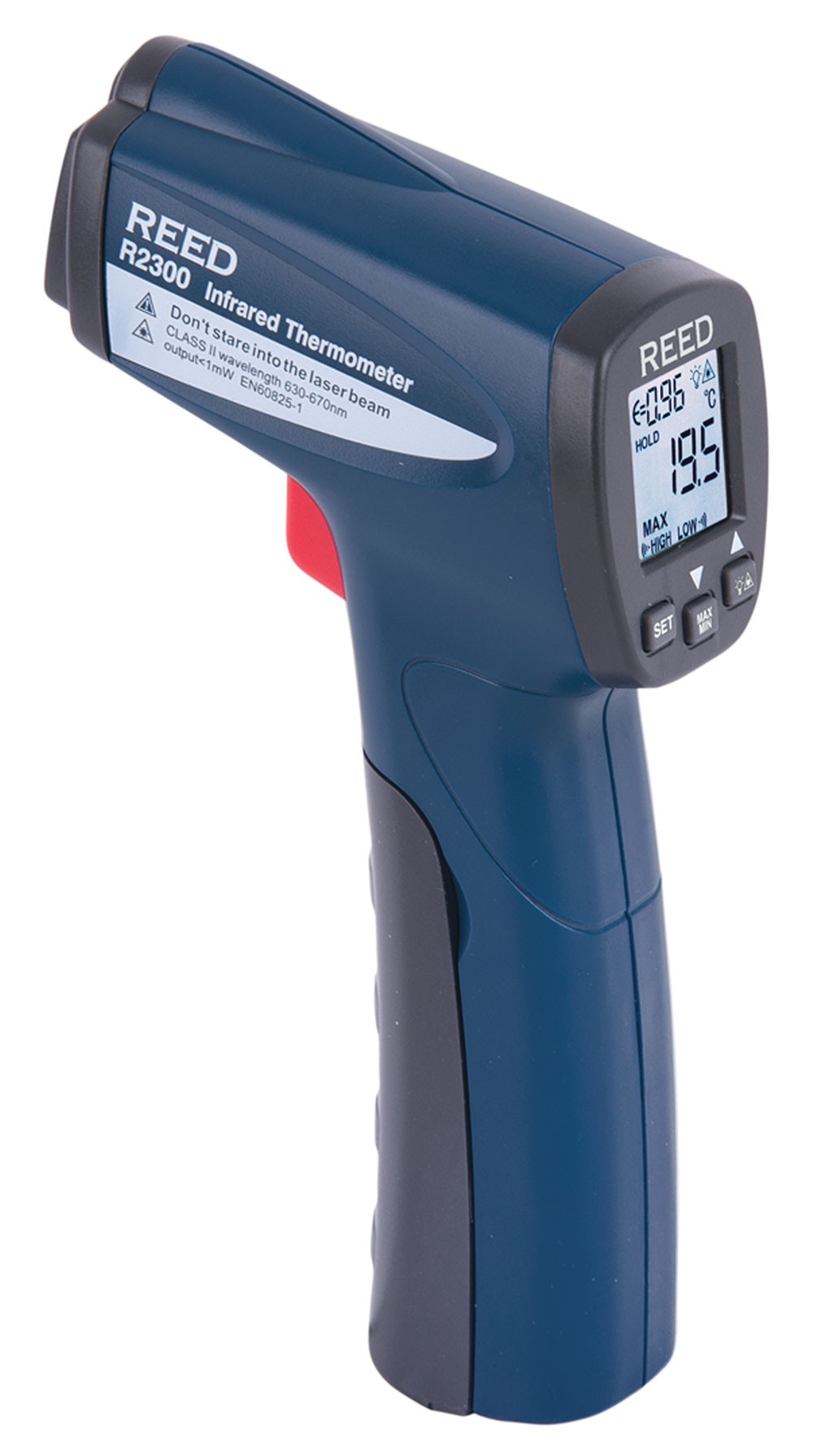

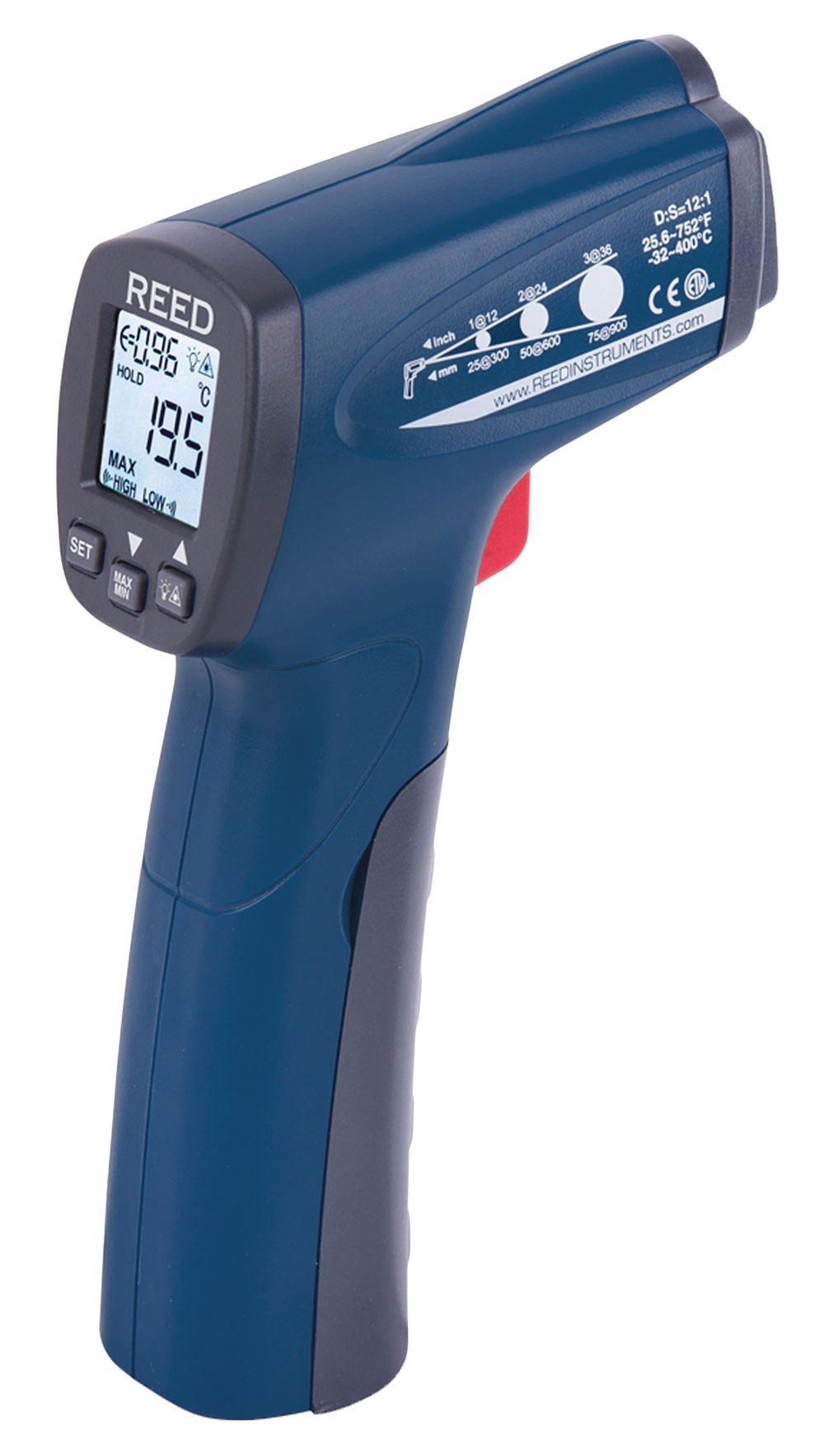

REED R2300 Infrared Thermometer, 12:1, 752°F (400°C)
Model: R2300 | UPC: 800837004383
REED R2300 Infrared Thermometer, 12:1, 752°F (400°C)
Model: R2300 | UPC: 800837004383
Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.
REED R2300 Offers
This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.
Features
- Built-in laser pointer identifies target area
- User selectable °F or °C
- 12:1 distance to spot size ratio
- Digitally adjustable emissivity
- Max and Min readings

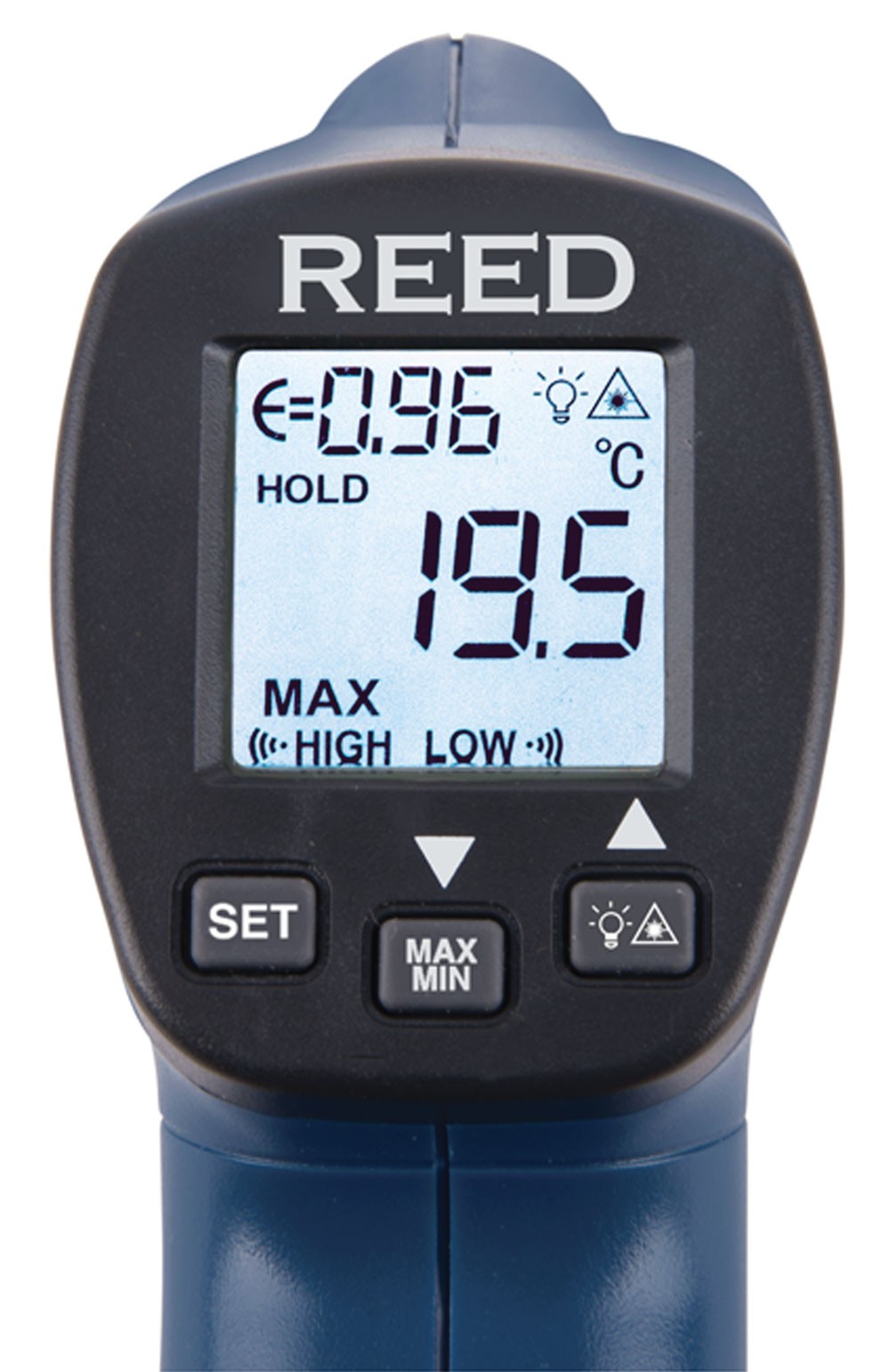

- Backlit display
- High and low alarms
- Low battery indication and auto shut off
REED R2300 Specifications
| Temperature Range | -25.6 to 752°F (-32 to 400°C) |
| Accuracy | ±4°F (2°C) or ±2% rdg. |
| Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 12:1 |
| Spectral Response | 8 to 14µm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 500ms |
| Backlit Display | Yes |
| Display Hold | Yes |
| High/Low Alarms | Yes |
| Alarm Indicators | Yes (Beeping) |
| Max/Min | Yes |
| F/C Switchable | Yes |
| Laser Type | Class II |
| Low Battery Indicator | Yes |
| Power Supply | 9V Battery |
| Product Certifications | CE, ETL, RoHS |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| Dimensions | 6.0 x 4.3 x 1.6" (153 x 108 x 40mm) |
| Weight | 6.5oz (185g) |
What's included with the REED R2300
- Infrared Thermometer
- Battery
R2300 Infrared Thermometer
This infrared thermometer is capable of measuring temperatures between -25.6 to 752°F (-32 to 400°C). Its features include being user selectable (°F or °C), storing maximum & minimum readings, and adjustable high and low alarms.
REED Infrared Thermometers
REED Instruments offers the latest technology in non-contact infrared thermometers (also known as IR thermometers, temperature guns and pyrometers). Whether you're looking for a compact unit to fit in your pocket or have industrial applications requiring a higher temperature range, REED has a wide variety of non-contact temperature instruments to suit your application.
Ideal Applications for the REED R2300
- Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
- Calibration and control of heater and oven temperatures
- Monitoring materials in processes involving heating and/or cooling
- Quality control monitoring
- Research and development applications
- Automotive diagnostics
- Conduct HVAC/R energy audits
