REED R5003 AC Voltage/Current Datalogger
Model: R5003 | UPC: 800837001207
REED R5003 AC Voltage/Current Datalogger
Model: R5003 | UPC: 800837001207
Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. Stores up to 256,000 True RMS measurements with user programmable sampling rates.
REED R5003 Offers
Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. The R5003 can operate remotely with batteries or be plugged in with the included AC adapter. Stored measurements can be downloaded via USB interface and either analyzed with the included software or exported to Microsoft Excel.
Features
- Datalog up to 256,000 AC voltage and current measurements
- Dual input measures 2 voltage/current measurements or 1 of each
- LCD simultaneously displays time/date, current readings and Max/Min readings
- User adjustable sample rate from 1 sec to 24 hrs
- High and low alarms

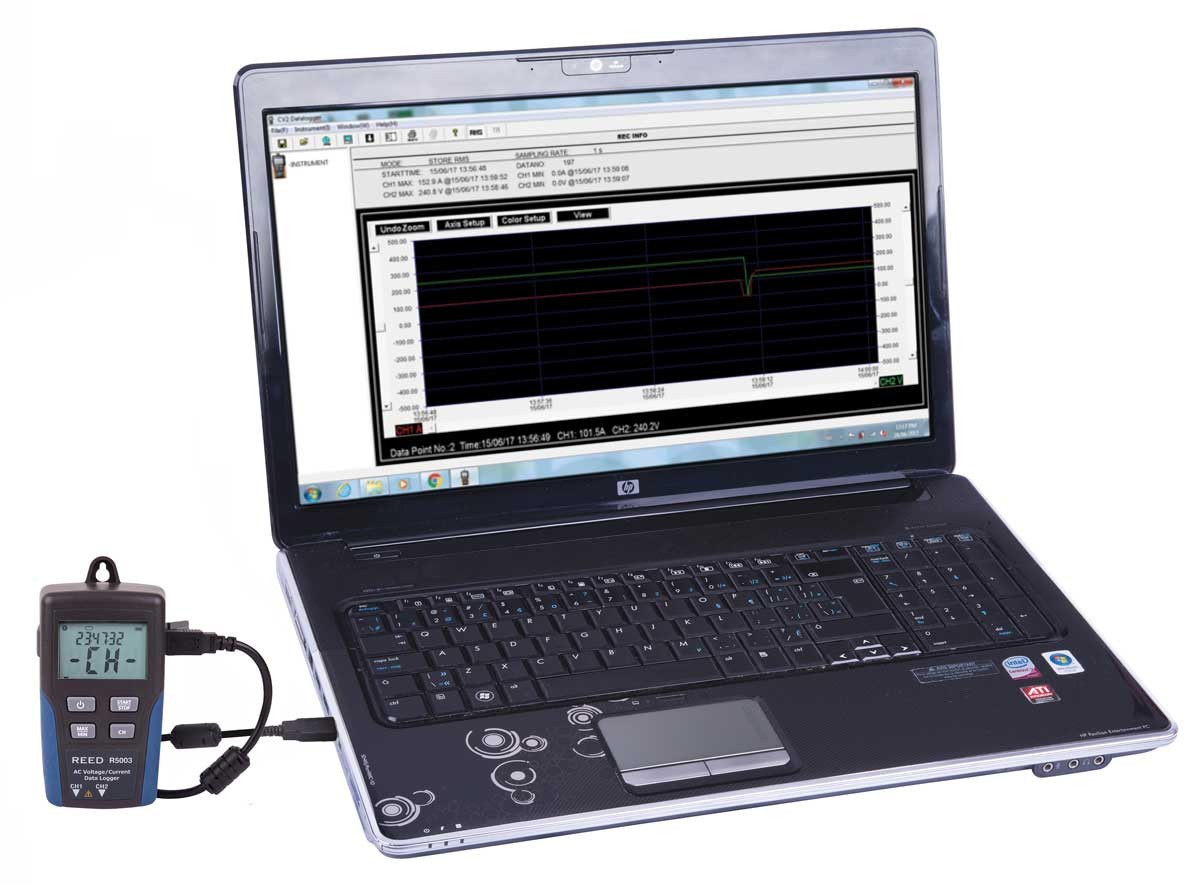

- Download measurements via USB interface and analyze results with included software
- Magnetic back allows instrument and sensors to be secured firmly in a variety of locations
- Low battery indicator and auto shut off
REED R5003 Specifications
| AC Voltage | |
| Range | 10 to 600V |
| Accuracy | ±(2.0% rdg + 1V) |
| Resolution | 0.1V |
| AC Current | |
| Range | 10 to 200A |
| Accuracy | ±(2.0% rdg + 1A) |
| Resolution | 0.1A |
| General Specifications | |
| Channels | Dual channel, TRMS AC Voltage or Current |
| Display | Dual LCD |
| Min/Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | 1 sec to 24 hours |
| Max Datapoints | 256,000 |
| Auto Shut-off | Yes (after 5 mins of inactivity) |
| Low Battery Indicator | Yes |
| Clamp Jaw Opening | 0.5" (12.7mm) |
| Power Supply | 4 AAA Batteries or AC Adapter |
| Battery Life | Sampling Time Dependent |
| PC Connectivity | USB Cable |
| Software | Yes (Included) |
| Software OS Compatibility | Windows 7/8/10/11 |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE |
| Operating Temperature | 0 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 75% |
| Dimensions | 4.5 x 2.5 x 1.3" (114 x 63 x 34 mm) |
| Weight | 8.7oz (248g) |

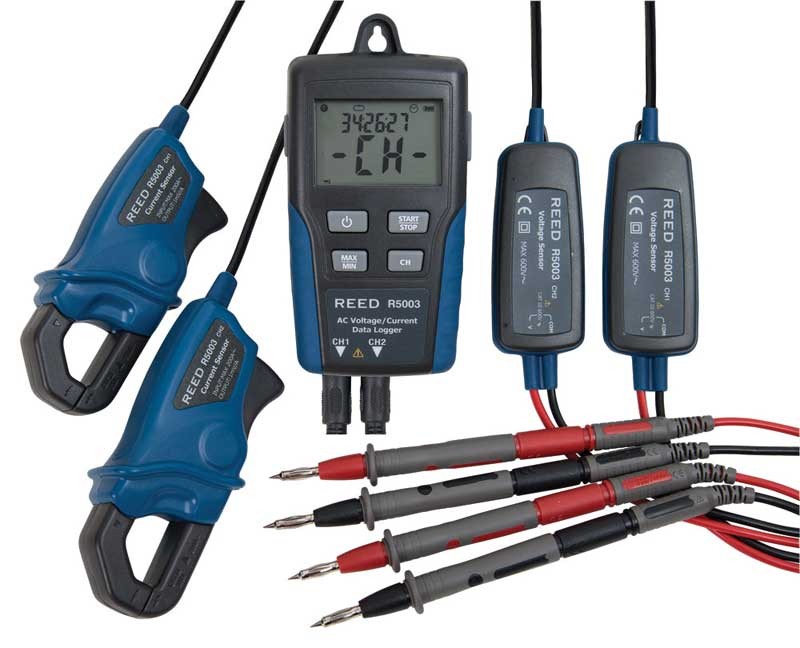

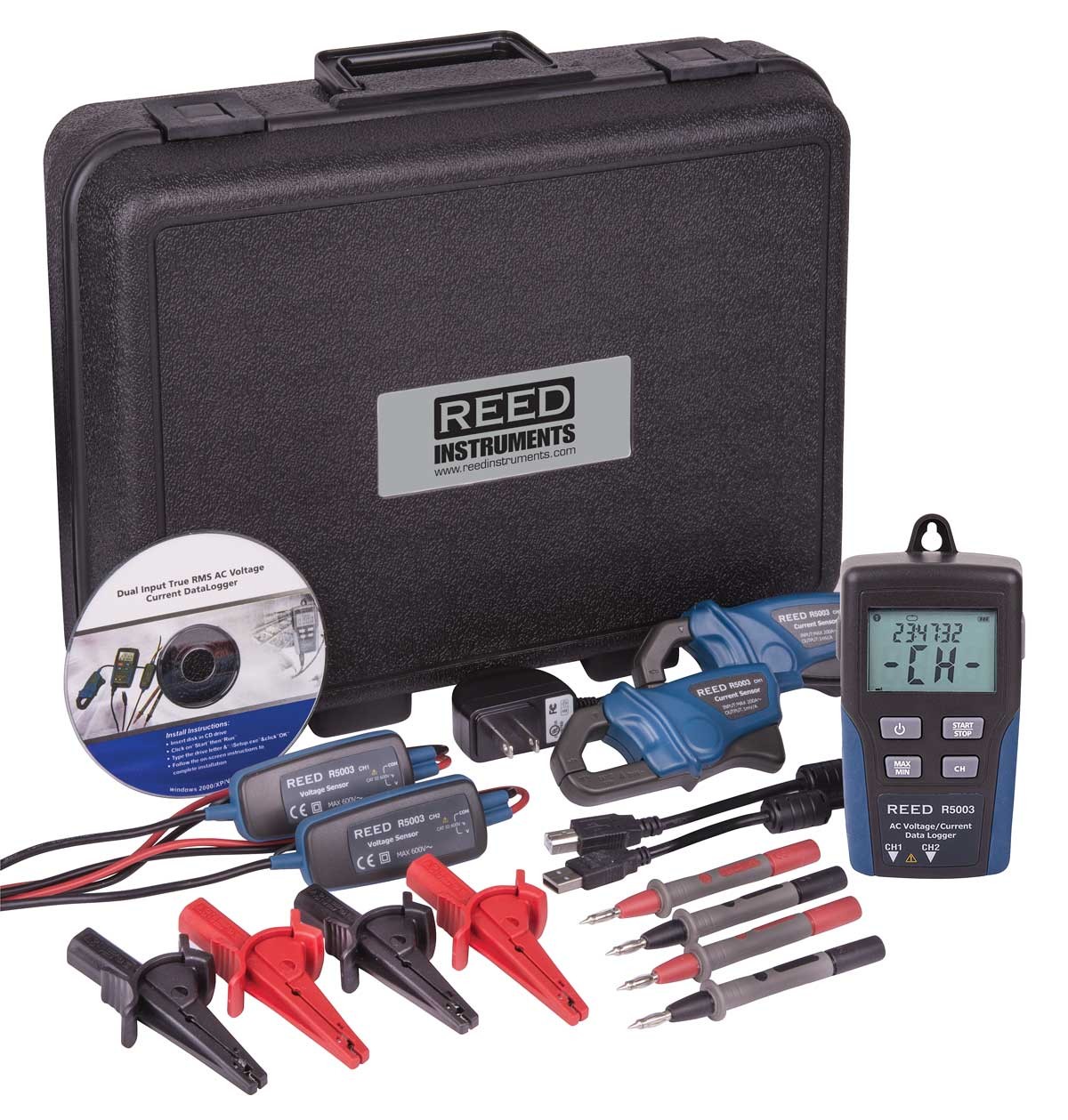

What's included with the REED R5003
- AC Voltage/ Current Data Logger
- AC Current Clamp Sensors (2)
- Voltage Sensors (2)
- Large Alligator Clips (4)
- Basic Test Probes (4)
- USB Cable
- Software
- AC Adapter
- Batteries
