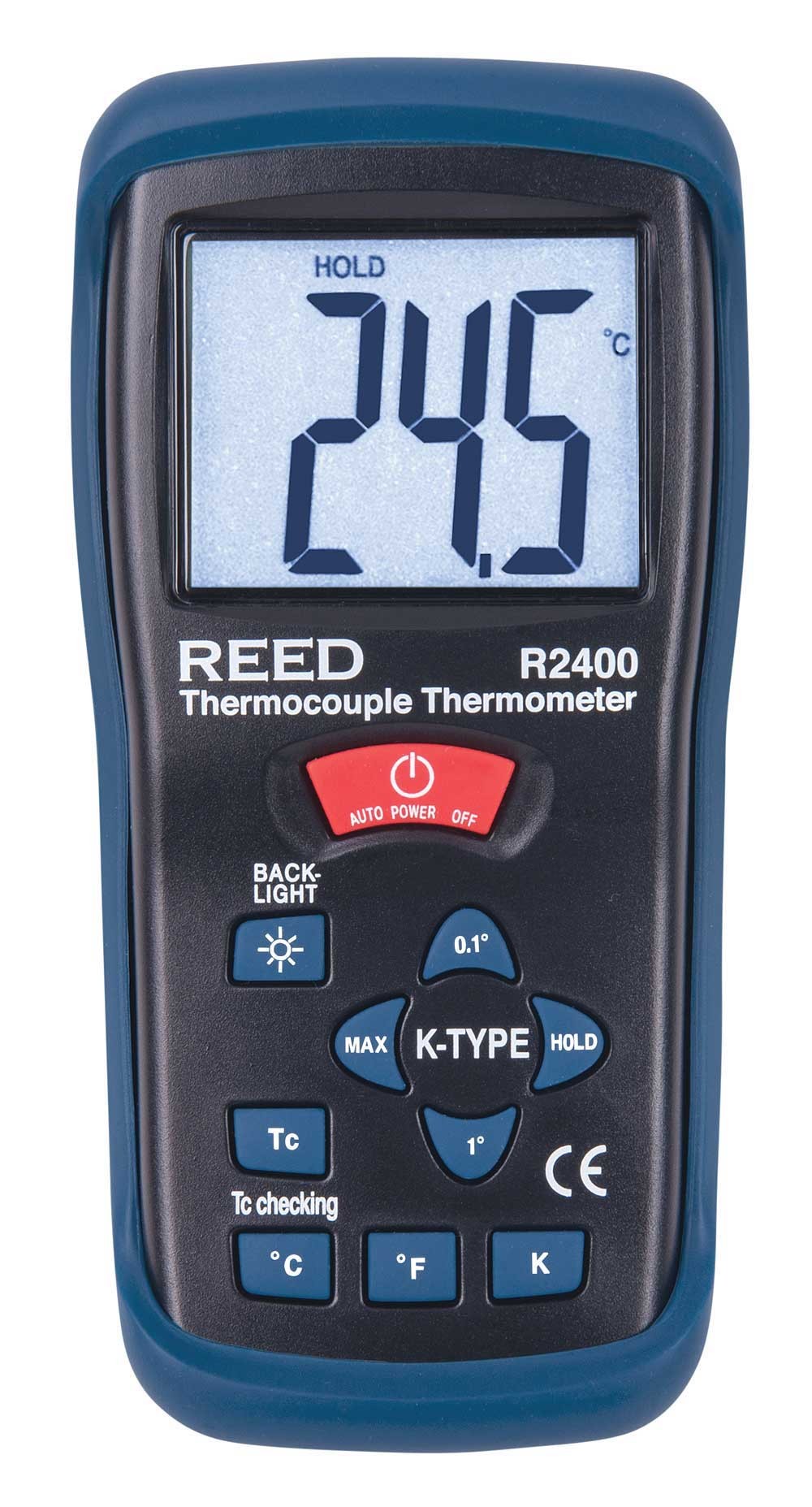

REED R2400 Type K Thermocouple Thermometer
Model: R2400 | UPC: 800837002051
REED R2400 Type K Thermocouple Thermometer
Model: R2400 | UPC: 800837002051
Quick responding, displays temperature in Celsius, Fahrenheit and Kelvin.
REED R2400 Offers
This single input type-k thermocouple thermometer features a backlit LCD display and is capable of measuring -58 to 2000°F (-50 to 1300°C) and 223 to 2000 Kelvin. The R2400 includes a type-k beaded wire probe.
Features
- Type K thermocouple thermometer
- Easy-to-read backlit LCD display
- User selectable °C, °F or Kelvin
- Max and Data Hold functions
- User selectable resolution of 0.1 or 1°F (0.1 or 1°C)
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R2400 Specifications
| Measuring Range | -58 to 2000°F (-50 to 1300°C), 223 to 2000K |
| Accuracy | -58 to 32°F: ±4°F 32 to 2000°F: ±(0.5% rdg+2°F) -50 to 0°C: ±2°C 0 to 1000°C: ±(0.5% rdg+1°C) 1000 to 1300°C: ±(0.8% rdg+1°C) 223 to 273K: ±5K 273 to 2000K: ±(1.0% rdg+2K) |
| Resolution | 0.1 or 1°F/°C, 1K |
| Type | Single Input, Thermocouple Type K |
| Response Time | 1x/sec |
| Display | 3 1/2-digit LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Max | Yes |
| Overrange Indicator | Yes |
| Auto Shut-off | Yes (after 15 mins) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 1 x 9V battery |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Dimensions | 6.4 x 3.0 x 1.5" (162 x 76 x 38.5 mm) |
| Weight | 7.4 oz (210 g) |

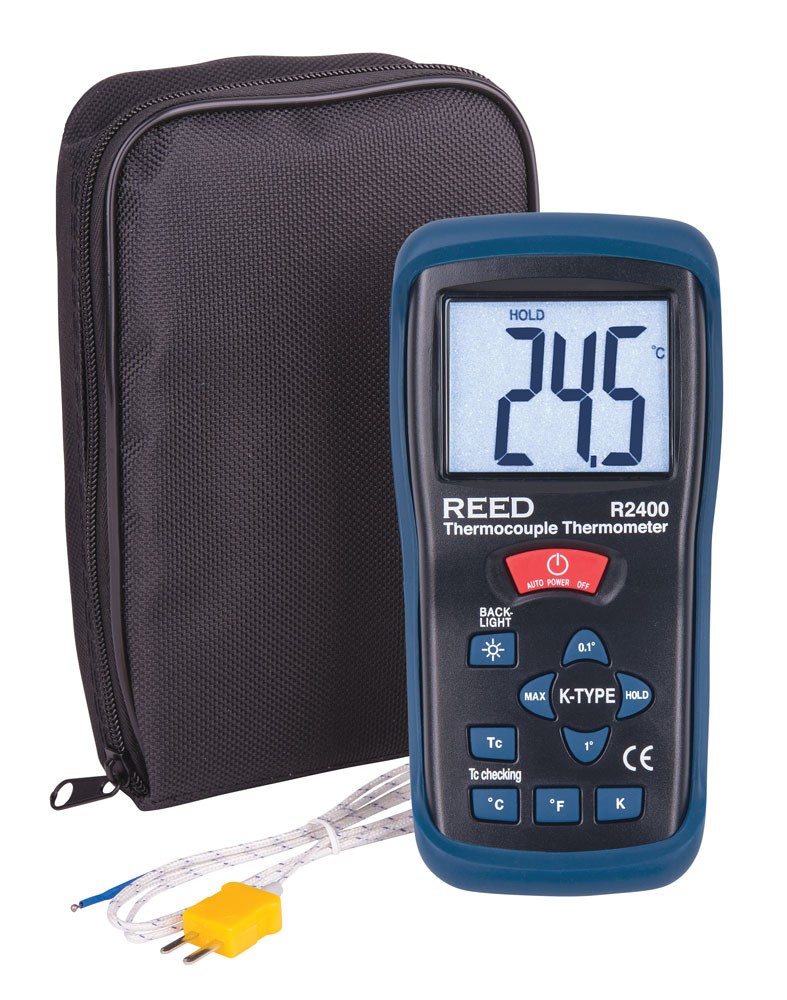

What's included with the REED R2400
- Protective Holster
- Beaded Wire Probe
- Carrying Case
- Battery
R2400 Type K Thermocouple Thermometer
Ideal Applications for the REED R2400
- Medical
- Pharmaceutical
- Industrial and Commercial Temperature Applications
- R&D and Educational Establishments
- Food Service
datasheet for the REED R2400 Type K Thermocouple Thermometer
manual for the REED R2400 Type K Thermocouple Thermometer
Brochure of our REED Automotive productsBrochure of our REED Electronics productsBrochure of our REED Facilities and Building Maintenance productsBrochure of our REED Lab & Water Quality productsBrochure of our REED Manufacturing & Quality Assurance productsBrochure of our REED Restoration and Disaster Recovery products
Click on a category to view a selection of compatible accessories with the REED R2400 Type K Thermocouple Thermometer.
REED CA-05A Medium Soft Carrying Case
Model: CA-05A
Features a main instrument compartment and a side pouch for accessories.
REED R2950 Type K Immersion Probe
Model: R2950
This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.
REED R2940 Type K Air/Gas Probe
Model: R2940
Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.
REED R2930 Type K Right Angle Surface Probe
Model: R2930
This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.
REED R2920 Type K Surface Probe
Model: R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.
REED LS-182 Type K Female Connector
Model: LS-182
This type k female connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED LS-181 Type K Male Connector
Model: LS-181
This type k male connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED R2980 Type K Air Oven/Freezer Thermocouple Probe
Model: R2980
Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.
REED R2970 Type K Pipe Clamp Thermocouple Probe
Model: R2970
This Type-K pipe clamp thermocouple probe is designed to easily grip pipes for quick temperature measurements. The R2970 features a spring-loaded jaw for a secure grip on pipes up to 1.4" (35mm) in diameter.
REED TP-01 Type K Beaded Wire Probe
Model: TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.
REED R2960 Type K Needle Tip Probe
Model: R2960
Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.
REED R1500 Tripod
Model: R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
