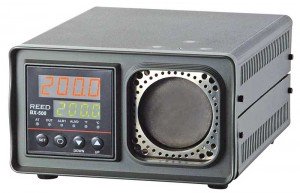

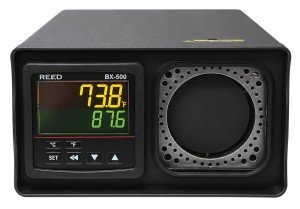

REED BX-500 Infrared (IR) Temperature Calibrator, 932°F
Model: BX-500 | UPC: 800837000217
REED BX-500 Infrared (IR) Temperature Calibrator, 932°F
Model: BX-500 | UPC: 800837000217
This temperature calibrator is for calibrating non-contact infrared thermometers up to 500°C (932°F).
REED BX-500 Offers
This infrared temperature calibrator provides accurate temperatures to calibrate non-contact temperature instruments. The BX-500 is capable of generating temperatures up to 932°F (500°C) and is designed to accommodate various infrared thermometers.
Features
- For calibrating non-contact temperature instruments (infrared thermometers, pyrometers and thermal imagers)
- Wide aperture compensates for optical infrared thermometer variations
- Contact RTD reference well located directly behind the blackbody target to assure accurate results
REED BX-500 Specifications
| Temperature Range | 122 to 932°F (50 to 500°C) |
| Accuracy | ≤212°F (100°C): ±1.6°F (0.8°C) 212 to 392°F (100 to 200°C): ±3.2°F (1.6°C) 392 to 932°F (200 to 500°C): ±5.6°F (2.8°C) |
| Stability | ≤212°F (100°C): ±0.2°F (0.1°C) 212 to 392°F (100 to 200°C): ±0.4°F (0.2°C) 392 to 932°F (200 to 500°C): ±0.8°F (0.4°C) |
| Resolution | 0.1°F (0.1°C) |
| Target Emissivity | 0.95 (fixed) |
| Heating Time | Approx. 30 mins to maximum |
| Cooling Time | Approx. 30 mins to 122°F (100°C) |
| Aperture Diameter | 2.28" (58mm) |
| Display | Dual LED |
| Power Supply | 110VAC, 2.5A |
| Product Certifications | CE |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 15 to 80% |
| Dimensions | 7.1 x 4.5 x 8.8" (180 x 114 x 233mm) |
| Weight | 6.6lbs (3kg) |
What's included with the REED BX-500
- Infrared Calibrator
- Power Cord
BX-500 Infrared Temperature Calibrator
The BX-500 calibrates non-contact infrared thermometers and thermal imagers up to 932°F (500°C). Its wide aperture compensates for optical infrared thermometer variations and the contact RTD reference well assures accurate results.
Ideal Applications for the REED BX-500
Calibrate non-contact temperature instruments; Infrared Thermometers and Thermal Imagers.
datasheet for the REED BX-500 Infrared (IR) Temperature Calibrator, 932°F
manual for the REED BX-500 Infrared (IR) Temperature Calibrator, 932°F
