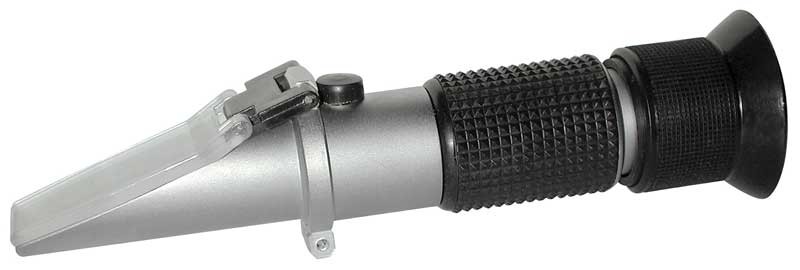

REED R9500 BRIX Refractometer, 0-32%
Model: R9500 | UPC: 800837001603
REED R9500 BRIX Refractometer, 0-32%
Model: R9500 | UPC: 800837001603
This BRIX refractometer shows the concentration percentage of the soluable solids content of a sample. Range: 0 to 32%.
REED R9500 Offers
This brix refractometer shows the concentration (percentage) of sucrose in 2 to 3 drops of a sample. The R9500 is used to measure sugar concentration in fruit juices and has been calibrated to the sucrose content contained in 100g of cane sugar.
Features
- Measures the concentration of sugar in fruit juice (0 to 32% BRIX)
- Easy to operate with simple to read scales
- Requires only 2 or 3 drops of sample
- Automatic Temperature Compensation (ATC)
- Prism and lens with a simple focus adjustment provides repeatable results
- Calibrated to sucrose content contained in 100g of cane sugar
REED R9500 Specifications
| Measuring Range | 0 to 32% (BRIX) |
| Accuracy | ±0.2% |
| Resolution | 0.2 |
| Automatic Temperature Compensation Range | 10 to 30°C |
| Dimensions | 6.5 x 1 x 1.5" (170 x 30 x 40 mm) |
| Weight | 7oz (200g) |
What's included with the REED R9500
- Refractometer
- Cover plate
- Calibration screwdriver
- Cleaning cloth
- Solution/Sample applicator
- Hard carrying case
Measure sucrose content with the REED R9500 Brix Refractometer
Before the fermentation of alcoholic beverages, determine the amount of fermented sugars that will potentially be converted to alcohol via the content of a liquid sample through refraction the easy way with the R9500 Brix Refractometer! It's quick and provides accurate results up to 32% Brix. The R9500 is easy to operate and only requires only 2 or 3 drops of sample - see 0:25 to view how simple it is to read the scales! The featured prism and lens with a simple focus adjustment provides repeatable results. This meter excels in applications within many fields of agriculture - see which ones at 1:14. Need to know what the specifications are? View a quick list at 1:19.
How To: Calibrate a Brix Refractometer
Ensure the repeated accuracy and consistency of your measurements by calibrating your Brix refractometer. Follow along with us to learn how. Here's what you'll need: 1. A screwdriver 2. A solution applicator and cleaning cloth 3. Distilled water For the purpose of this video, we'll be using the R9500 Brix Refractometer. These steps will work for most Brix refractometers.
Ideal Applications for the REED R9500
- Fruit and Citrus Industry
- Juice Factories
- Vineyards
- Food Preparation
- Consumer Use
- Agriculture
