REED R9200 Microwave Leakage Detector

Model: R9200 | UPC: 800837001580

REED R9200 Microwave Leakage Detector-

datasheet manual
Ask an Expert

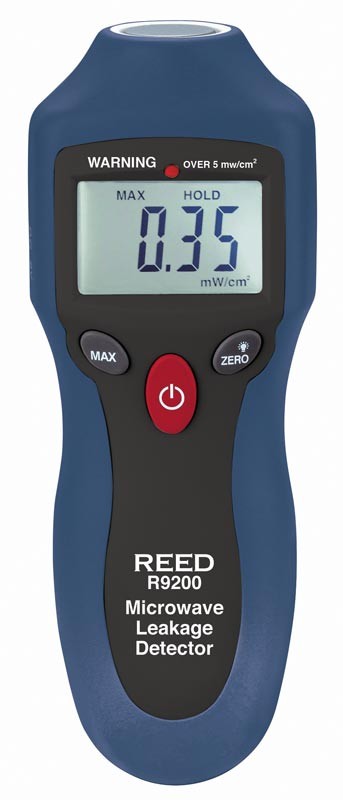

REED R9200 Microwave Leakage Detector

Model: R9200 | UPC: 800837001580

Audible and visual alarms detect low levels of microwave leakage.

REED R9200 Offers

This microwave leakage detector meets EN-61000 standards and is capable of detecting very low levels of radiation. The R9200 features a backlit LCD display and preset alarms (audible and visual) at 5 mW/cm2.

Features

  • Detects very low levels of microwave leakage
  • Quick response and high accuracy
  • Designed for one-handed operation
  • Audible (beep) and visual (flashing LED) alarms at 5 mW/cm2
  • 4-digit, backlit LCD display
  • Max hold function and low battery indicator
  • Zero button for quick adjustment

REED R9200 Specifications

Measuring Range 0 to 9.99 mW/cm2
Accuracy ±1mW/cm2
Resolution 0.01 mW/cm2
Operating Frequency 2.4GHz
Display 4-digit LCD
Backlit Display Yes
Alarm Audible (buzzer) and Visual (LED Light)
Alarm Limit 5 mW/cm2
Max Hold Yes
Zero Button Yes
Response Time 2x per sec.
Power Supply 9V battery
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 6.3 x 2.4 x 1.7" (160 x 60 x 42mm)
Weight 5.3 oz (151g)

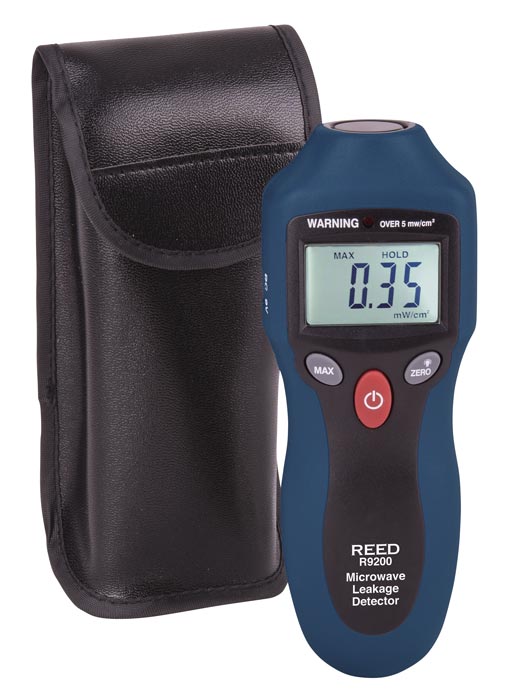

What's included with the REED R9200

  • Microwave Leakage Detector
  • Soft Carrying Case
  • Battery

R9200 Microwave Leakage Detector


The R9200 detects very low levels of microwave leakage with its quick response and high accuracy. The audible and visual alarms at 5 mW/cm² , zero button for quick adjustment, max hold function and low battery indicator are what you can find in this microwave leak detector.

Ideal Applications for the REED R9200

  • Verifying leakage on microwave oven.
datasheet for the REED R9200 Microwave Leakage Detector manual for the REED R9200 Microwave Leakage Detector Brochure of our REED Facilities and Building Maintenance productsBrochure of our REED Health & Safety products
