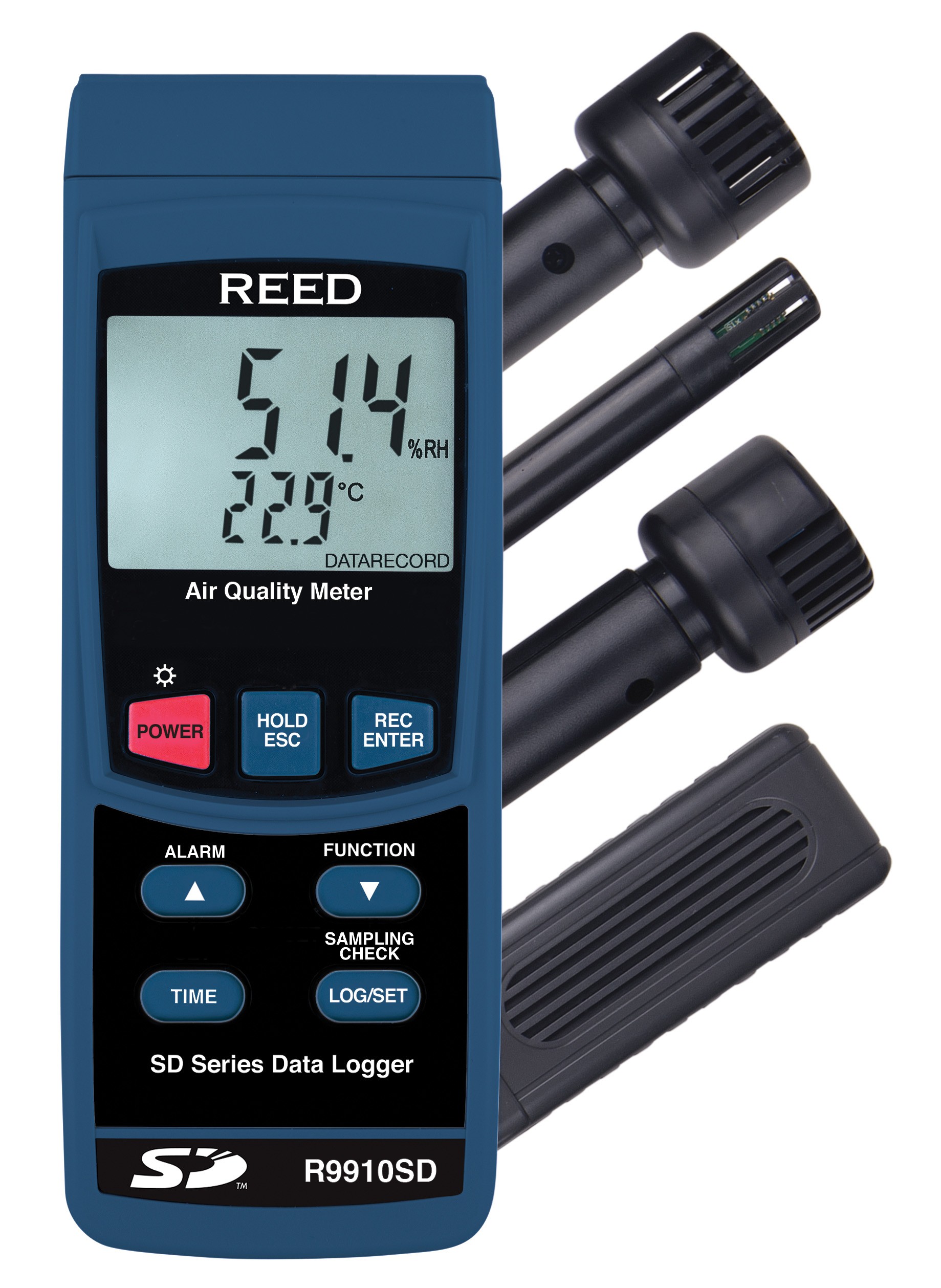

REED R9910SD Data Logging Air Quality Meter
Model: R9910SD | UPC: 800837004949
REED R9910SD Data Logging Air Quality Meter
Model: R9910SD | UPC: 800837004949
Real-time data logger with integrated SD memory card measures/records oxygen, carbon dioxide, carbon monoxide, ambient temperature, dew point and wet bulb temperatures and humidity.
REED R9910SD Offers
The R9910SD is capable of recording readings from 3 probes simultaneously and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 sec to 8 hours. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), temperature and humidity
- Records up to 3 readings simultaneously
- User adjustable audible alarms
- User selectable unit of measure (°C or °F)
- Data hold and Max/Min functions
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 2 secs to 8 hrs
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R9910SD Specifications
| Temperature | |
| Measuring Ranges | 32 to 122.0°F (0 to 50.0°C) Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C) Wet Bulb: -6.9 to 122.0°F (-21.6 to 50°C) |
| Accuracy | ±1.5°F (±0.8°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Ranges | 5 to 95%RH |
| Accuracy | >70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH |
| Resolution | 0.1%RH |
| CO2 | |
| Measuring Ranges | 0 to 4,000 ppm |
| Accuracy | <999 ppm: ±40 ppm >1,000 ppm ≤3000 ppm: ±5% rdg >3,000 ppm: ±250 ppm |
| Resolution | 1 ppm |
| CO | |
| Measuring Ranges | 0 to 1,000 ppm |
| Accuracy | ±(5% + 2 ppm) |
| Resolution | 1 ppm |
| O2 | |
| Measuring Ranges | 0 to 30% O2 |
| Accuracy | ±(1% + 0.2% O2) |
| Resolution | 0.10% |
| General Specifications | |
| Alarm Threshold | <18% O2 |
| Response Time | 1 second |
| Display | 4-digit dual LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1 second to 8 hours, 59 minutes and 59 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 85% |
| Dimensions | Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45mm) Humidity Probe Length: 7.8" (197mm) CO Probe Length: 5.9" (150mm) CO2 Probe Length: 7.5" (190mm) O2 Probe Length: 5.9" (150mm) |
| Weight | 0.8lb (350g) |

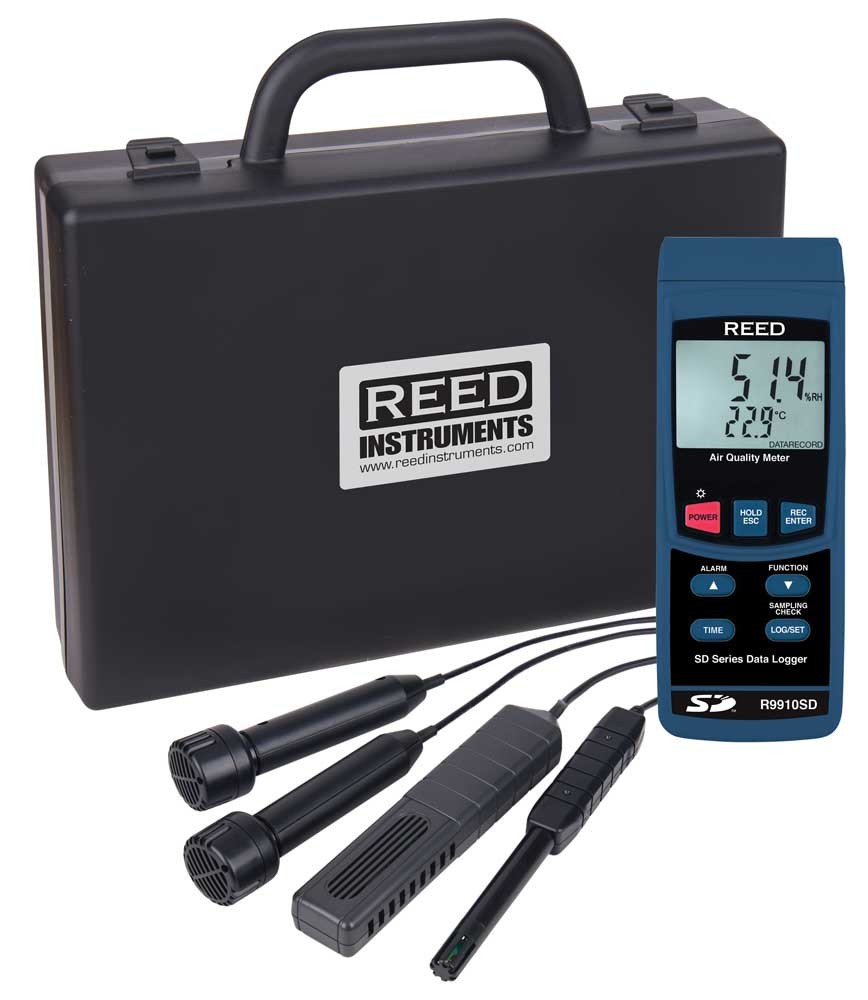

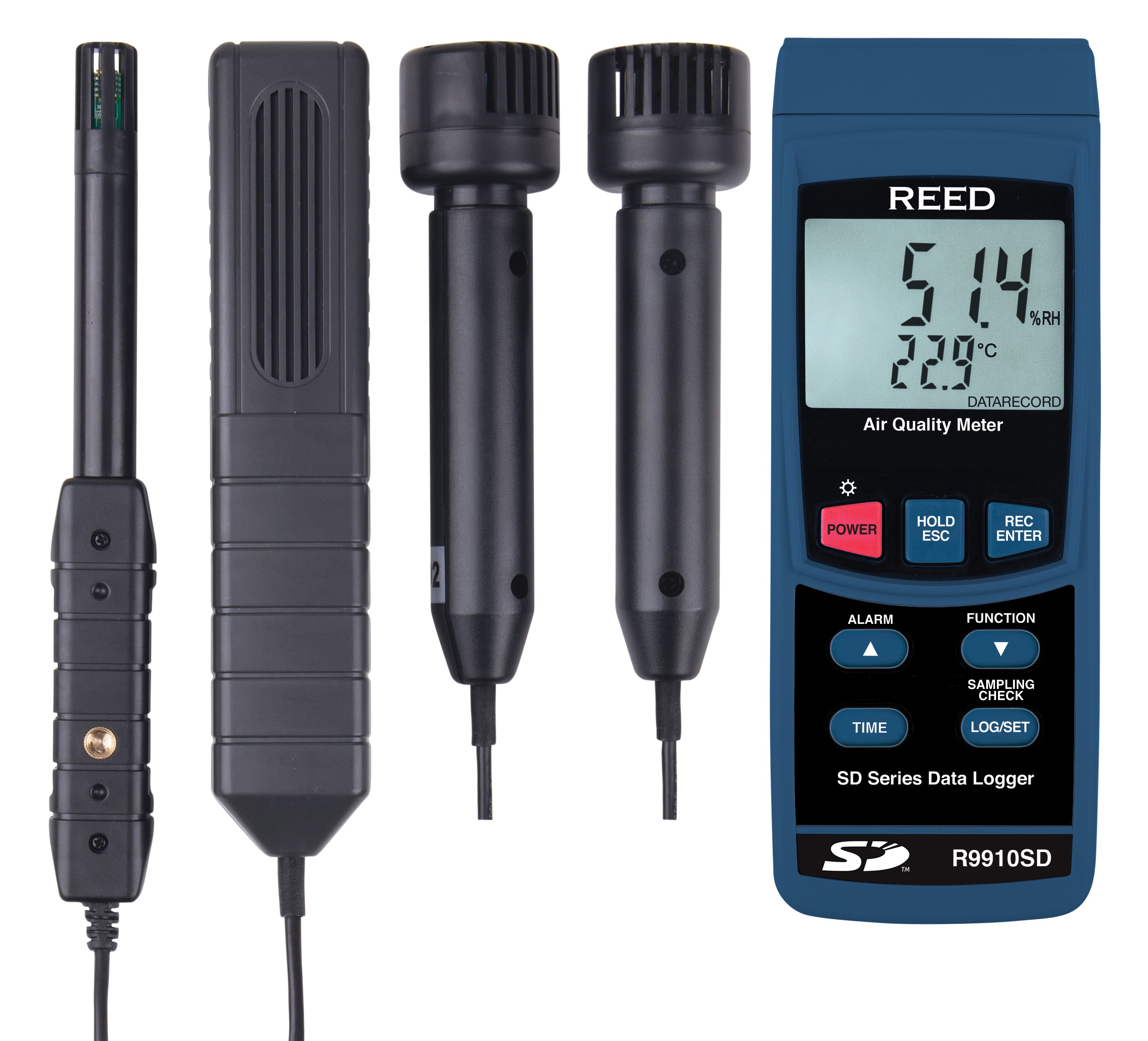

What's included with the REED R9910SD
- Data Logging Air Quality Meter
- Humidity Probe
- Carbon Monoxide Probe
- Carbon Dioxide Probe
- Oxygen Probe
- Hard Carrying Case
- Batteries
Measure the quality of air with the REED R9910SD Data Logging Air Quality Meter
Indoor Air Quality Meters (also known as IAQ meters), monitor a number of factors including carbon dioxide, temperature and humidity - see 0:22. Want to test all 3 at once? No problem! The R9910SD has the capability to record up to 3 readings simultaneously - see 0:34. REED IAQ meters are used every day to monitor environmental conditions in schools, office buildings, factories and hospitals. If you're looking to monitor an environment for an extended period of time, the R9910SD can be mounted on a tripod and set up to datalog based on a user's sampling frequency. Save yourself a lot of work with the data logging features of this model. As a data logger, its capacity to automatically monitor and record environmental parameters over time, allow conditions to be measured, documented, analyzed and validated in 3 easy steps. Check out how in this quick video…Record data, save it on an SD card and quickly generate an Excel file - See 0:56. 1. Insert memory card 2. Record the needed data 3. Insert memory card in PC and open with Excel The REED R9910SD Data Logging Air Quality Meter comes complete with humidity probe, carbon monoxide probe, carbon dioxide probe, oxygen probe, carrying case and batteries. This meter also has a full list of optional accessories… View the complete list of accessories at 1:26. Want to know more about this meter? View a quick list of the specifications at 1:33.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R9910SD
Environmental Monitoring in:
- Schools
- Office buildings
- Greenhouses
- Factories
- Hotels
- Hospitals
- Areas where high levels of carbon dioxide are generated
