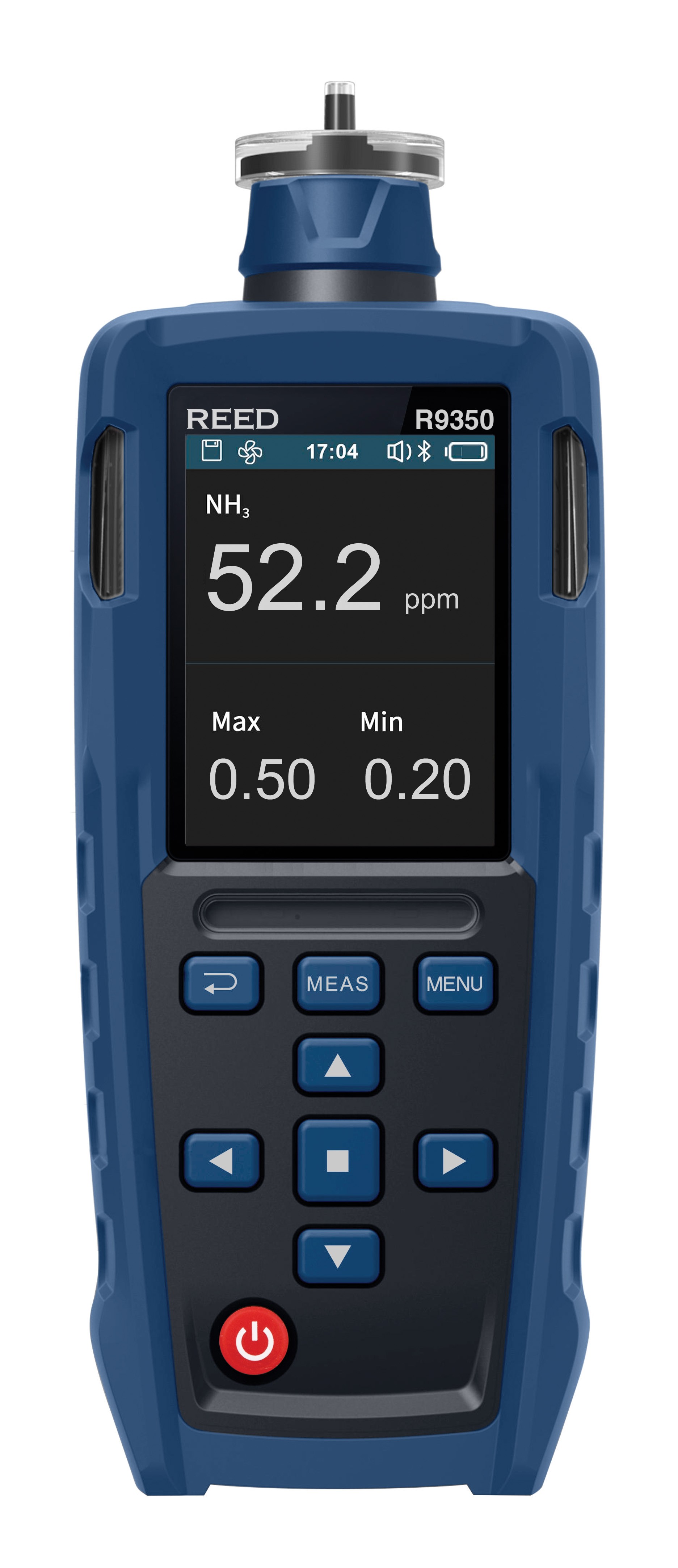

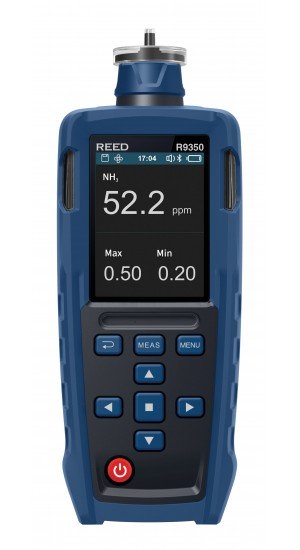

REED R9350 Ammonia Gas Detector, 0 to 100ppm

Model: R9350 | UPC: 800837007124

REED R9350 Ammonia Gas Detector, 0 to 100ppm

Model: R9350 | UPC: 800837007124

Provides fast and precise detection of ammonia concentrations from 0 to 100 ppm in hazardous environments.

REED R9350 Offers

This Ammonia Gas Detector has been designed for accurate and rapid ammonia gas detection from 0 to 100ppm. The R9350 features a 2.8" LCD color display for clear data visualization, real-time clock and date stamping, and a user adjustable alarm to ensure timely notifications.

Features

  • 0 to 100 ppm detection range with built-in pump
  • Easy-to-read 2.8" (71mm) LCD color screen
  • User selectable unit of measure (ppm, mg/m³)
  • Real-time clock and date stamp
  • Certified safe for hazardous environments (Ex ib IIC T4 Gb/ Ex ib IIIC T130°C Db)
  • Audible, visual, and buzzer alarms
  • Telescopic Probe extends up to 3.5' (1.06m)
  • Rechargeable li-ion battery
  • Low battery indicator and auto shut-off

REED R9350 Specifications

Range 0 to 100ppm
Accuracy ±3.0% FS
Resolution 0.1ppm
Pump Pressure 90 to 110kPa
Test Run Time ~90 seconds
General Specifications
Alarms Yes (audible/visual/buzzer)
Unit of Measure ppm, mg/m³
Display 2.8" (71mm) LCD Color Screen
Max Yes
Min Yes
Real-Time Clock and Date Stamp Yes
Belt Clip Yes
Max Probe Length 3.5' (1.06m)
Autoshut off Yes (10 mins, 30 mins, off)
Power Supply Universal AC adapter/charger; 3.7V rechargeable battery
Battery Life Approx. 8-10 hours
Battery Charge Time Approx. 4-5 hours
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature -4 to 104°F (-20 to 40°C)
Operating Humidity 10 to 80%
Storage Temperature -4 to 104°F (-20 to 40°C)
Storage Humidity 10 to 80%
Dimensions 8 x 3 x 2.75" (203 x 76 x 70 mm)
Weight 15.2oz (430g)

What's included with the REED R9350

  • Power Adapter
  • Filters
  • Telescopic Probe
  • Carrying Case

Ideal Applications for the REED R9350

  • Industrial safety monitoring in ammonia storage and handling areas
  • Refrigeration and cooling system inspections
  • Agricultural and livestock operations to detect ammonia in confined spaces
  • Chemical manufacturing and processing facilities
  • Wastewater treatment plants for monitoring ammonia emissions
  • Research and laboratory environments requiring precise ammonia detection

When you purchase a REED product it comes included with a one year warranty. We back our products.
