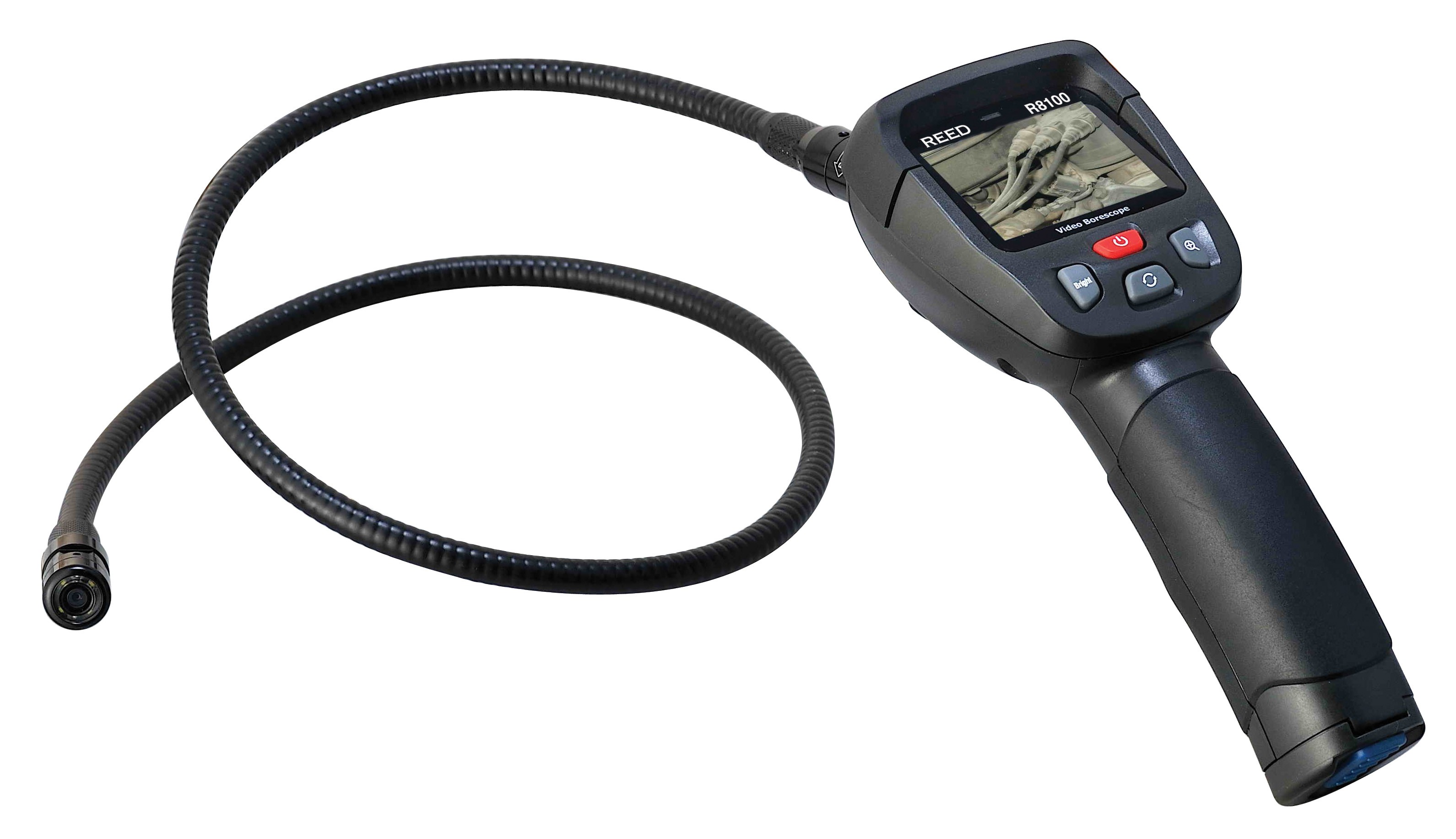

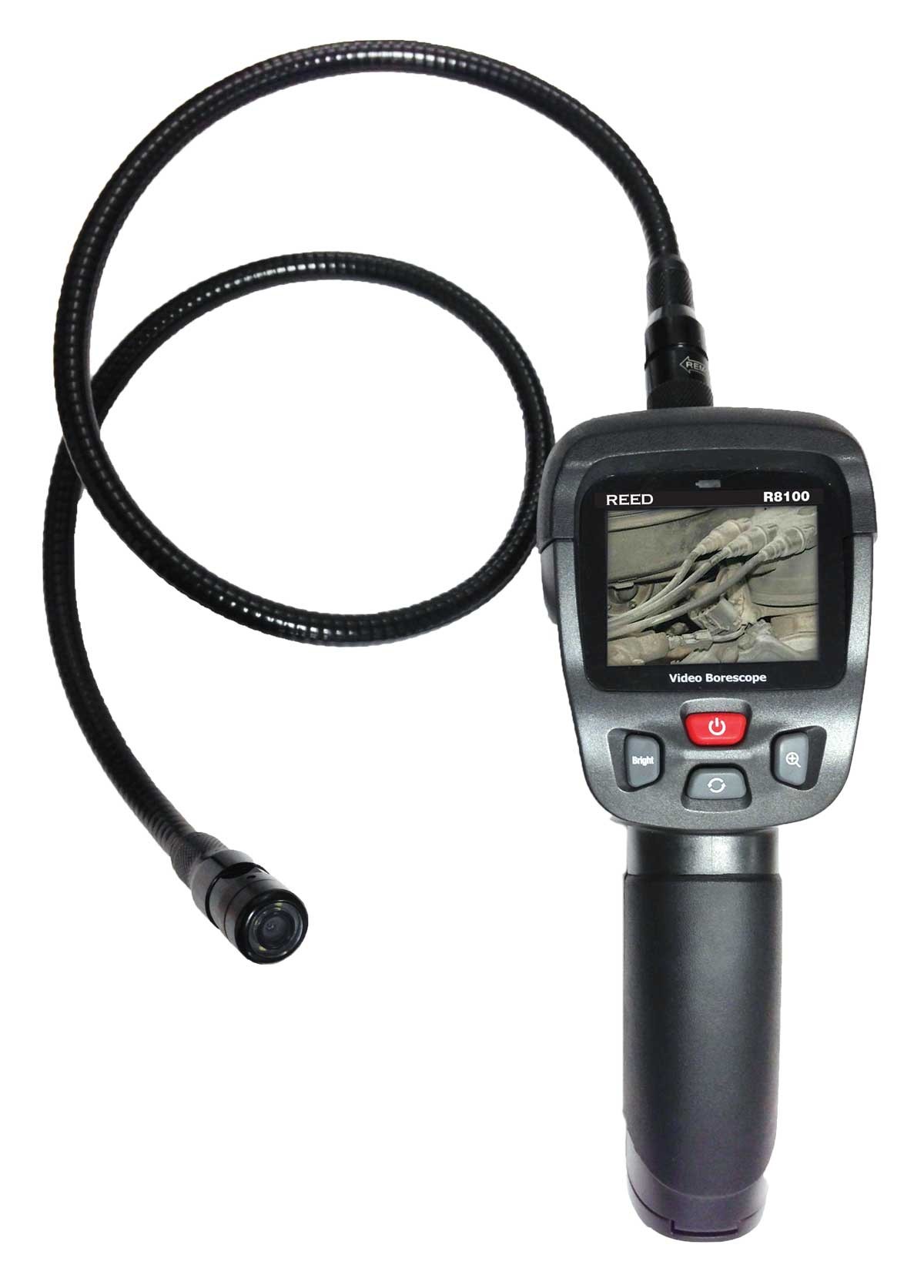

REED R8100 Video Borescope Inspection Camera
Model: R8100 | UPC: 800837001511
REED R8100 Video Borescope Inspection Camera
Model: R8100 | UPC: 800837001511
17mm camera diameter and 2.4" color TFT LCD monitor provides real-time video of hard to see areas.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R8100 Offers
This high resolution video inspection camera features a 39" (1m) gooseneck cable with 17mm camera head and provides real-time imaging on a 2.4" color LCD display. The R8100 has the ability to expand up to 30 ft with optional cable extensions and includes a camera mountable magnet, hook and mirror to assist with specific applications. An optional 9mm camera head can be ordered separately.
Features
- Comfortable pistol grip design
- High resolution 2.4" color TFT LCD monitor
- 17mm waterproof (IP67) camera head
- Gooseneck cable retains configured shape
- Cable expandable up to 30 ft (9.1m) with extensions (optional)
- Four high visibility LED lights provide illumination in dimly lit environments
- 2X zoom and 180° mirror rotation functions
- Low battery indicator
REED R8100 Specifications
| Camera | |
| Camera Resolution | 640 x 480 |
| Camera Diameter | 0.66" (17mm) |
| Viewing Distance | 5.9 to 9.8" (15 to 25cm) |
| Depth of Field | 10mm to infinity |
| Viewing Angle | 0 to 180° |
| General Specifications | |
| Display | 2.4" Color TFT LCD |
| Display Resolution | 480 x 234 |
| Frames per Second (FPS) | 30 |
| Standard Gooseneck/Cable Length | 39" (1m) |
| Zoom | 2X |
| Rotate Display | Yes (180°) |
| LED Brightness Adjustment | Yes (4 white LEDs) |
| Low Battery Indicator | Yes |
| Power Supply | 4 AA Batteries |
| Product Certifications | CE, IP67 (Camera Head) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 85% |
| Dimensions | 9.5 x 3.9 x 6.3" (240 x 100 x 160 mm) |
| Weight | 18.7oz (530g) |
What's included with the REED R8100
- Video Borescope Inspection Camera
- 17mm Camera Head
- Magnet, Hook and Mirror Attachments
- Batteries
- Hard Carrying Case
Ideal Applications for the REED R8100
- Building and home inspection
- Pest control
- HVAC/R and refrigeration
- Visual inspections of aircraft engines
- Steam turbines
- Automotive and truck engines
- Manufacturing of machined or cast parts
- Inspection of critical interior surfaces for burrs, surface finish or complete through-holes
