REED R6050SD Data Logging Thermo-Hygrometer
Model: R6050SD | UPC: 800837004819
REED R6050SD Data Logging Thermo-Hygrometer
Model: R6050SD | UPC: 800837004819
Real-time data logger with integrated SD memory card measures/records ambient temperature, relative humidity, dew point, and wet bulb temperatures as well as contact temperature with an integrated Type J/Type K thermocouple input.
REED R6050SD Offers
The R6050SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.
Features
- Measures relative humidity, ambient temperature and dew point/wet bulb temperatures
- Contact temperature measurement with a type J/K thermocouple option
- Temperature is measured in °C or °F
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R6050SD Specifications
| Temperature | |
| Measuring Ranges | 32 to 122°F (0 to 50°C) |
| Accuracy | ±1.5°F (0.8°C) |
| Resolution | 0.1°F/°C |
| Contact Temperature (Probe sold separately) | |
| Measuring Ranges | Type K: -148 to 2372°F (-100 to 1300°C) Type J: -148 to 2192°F (-100 to 1200°C) |
| Accuracy | ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | 0.1°F/°C |
| Dew Point | |
| Measuring Ranges | -13.5 to 120.1°F (-25.5 to 48.9°C) |
| Accuracy | Sum of temp and RH accuracy |
| Resolution | 0.1°F/°C |
| Wet Bulb | |
| Measuring Ranges | -6.9 to 122.0°F (-21.6 to 50.0°C) |
| Accuracy | Sum of temp and RH accuracy |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Ranges | 5 to 95% RH |
| Accuracy | ±(3% rdg. + 1% RH): ≥70% RH ±3% RH: < 70% RH |
| Resolution | 0.1% RH |
| General Specifications | |
| Display | Dual Display, LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| SD Card Class Compatibility | Class 4 |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Battery Life | Sampling Time Dependent |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| Dimensions | 7 x 2.7 x 1.9" (177 x 68 x 45mm) |
| Weight | 1.13lb (515g) |

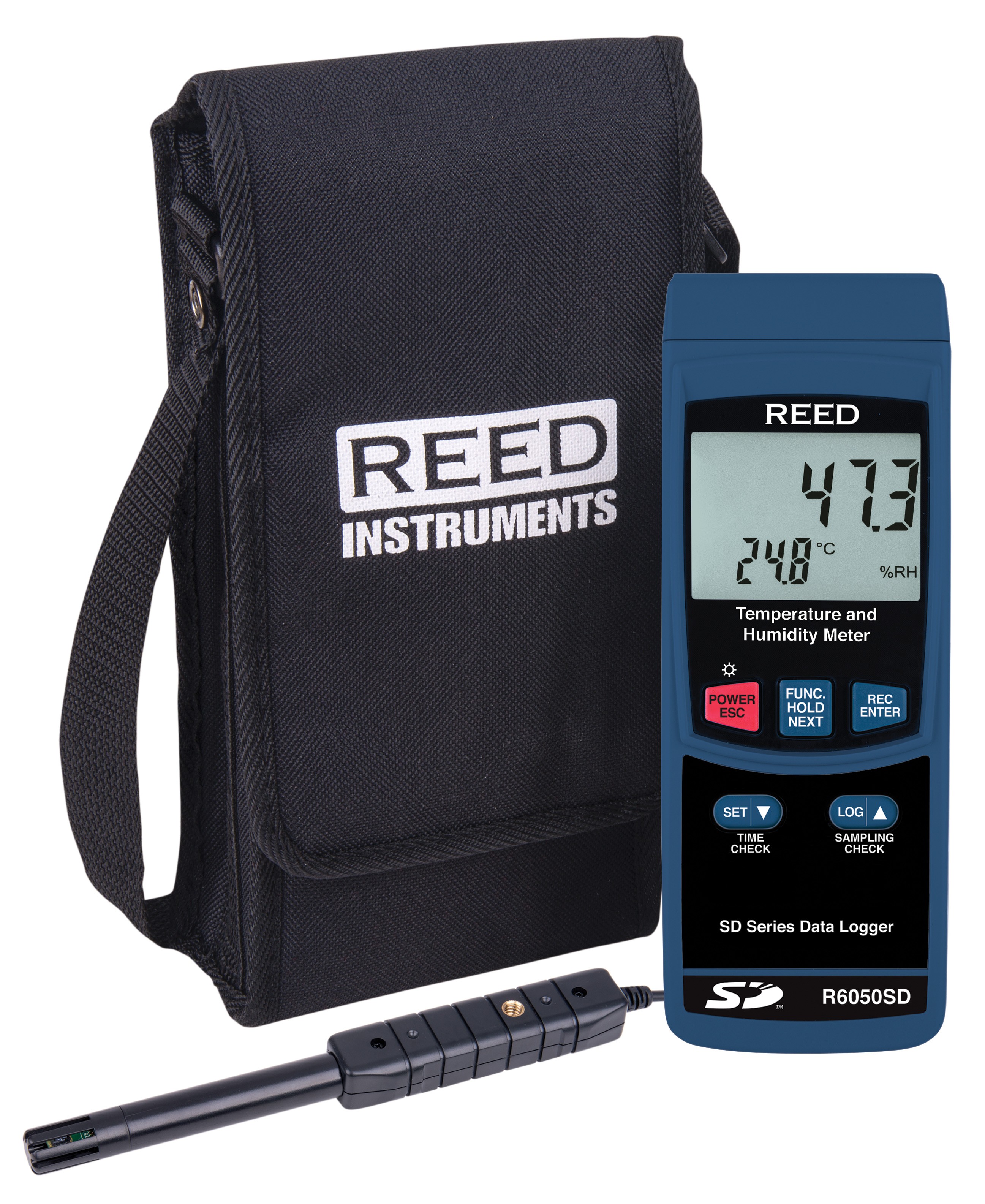

What's included with the REED R6050SD
- Data Logging Thermo-Hygrometer
- Humidity/Temperature Probe
- Soft Carrying Case
- Batteries
Get into humidity with the R6050SD Data Logging Thermo-Hygrometer
The R6050SD Data Logging Thermo-Hygrometer measures and records ambient temperature, relative humidity, dew point, wet bulb temperatures and contact temperatures. Thermo-hygrometers and/or Psychrometers like this one are used every day in laboratories to ensure the right environmental conditions are maintained, in museums to assure that assets are well protected and in other applications where controlled temperature and humidity measurement are vital.
Meet the SD Series Family of Real-Time Data Loggers
Whatever tool you need for any application, the SD series has something for you! Offering 12 diverse data logging meters, there's at least one meter for every category, whether its for measuring temperature (R2450SD), air temperature & velocity (R4000SD & R4500SD), heat stress (R6250SD), relative humidity (R6050SD), air quality (R9910SD), water quality (R3000SD & R3100SD), sound (R8070SD), light and environmental (R8100SD & R4700SD) & vibration (R7000SD).
Ideal Applications for the REED R6050SD
- Environmental studies
- Food distribution
- HVAC/R system installation
- Greenhouses and industrial spaces
- Saunas
- Humidors
- Museums
- Lab monitoring
datasheet for the REED R6050SD Data Logging Thermo-Hygrometer
manual for the REED R6050SD Data Logging Thermo-Hygrometer
Brochure of our REED Facilities and Building Maintenance productsBrochure of our REED Health & Safety productsBrochure of our REED HVAC/R productsBrochure of our REED Lab & Water Quality productsBrochure of our REED Restoration and Disaster Recovery productsBrochure of our REED Library, Museum and Archives products
Click on a category to view a selection of compatible accessories with the REED R6050SD Data Logging Thermo-Hygrometer.
REED CA-05A Medium Soft Carrying Case
Model: CA-05A
Features a main instrument compartment and a side pouch for accessories.
REED R8888 Medium Hard Carrying Case
Model: R8888
Professional grade, injection molded hard plastic case with customizable foam inserts.
REED R1500 Tripod
Model: R1500
Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
REED R2920 Type K Surface Probe
Model: R2920
This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface.
REED R2930 Type K Right Angle Surface Probe
Model: R2930
This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The R2930 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.
REED R2940 Type K Air/Gas Probe
Model: R2940
Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts.
REED R2950 Type K Immersion Probe
Model: R2950
This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels.
REED R2960 Type K Needle Tip Probe
Model: R2960
Medium gauge hypodermic needle tip, used to pierce and measure food, rubbers and solids.
REED LS-182 Type K Female Connector
Model: LS-182
This type k female connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED LS-181 Type K Male Connector
Model: LS-181
This type k male connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.
REED TP-01 Type K Beaded Wire Probe
Model: TP-01
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.
REED R2970 Type K Pipe Clamp Thermocouple Probe
Model: R2970
This Type-K pipe clamp thermocouple probe is designed to easily grip pipes for quick temperature measurements. The R2970 features a spring-loaded jaw for a secure grip on pipes up to 1.4" (35mm) in diameter.
REED R2980 Type K Air Oven/Freezer Thermocouple Probe
Model: R2980
Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.
REED R9933 Humidity Calibration Standard, 33%
Model: R9933
For use with REED R6001, R6050SD, R9900 and 8706.
REED R9975 Humidity Calibration Standard, 75%
Model: R9975
For use with REED R6001, R6050SD, R9900 and 8706.
REED R9980 Humidity Calibration Kit (33% and 75%)
Model: R9980
Kit includes the R9933 (Humidity Calibration Standard, 33%) and R9975 (Humidity Calibration Standard, 75%). For use with REED R6001, R6050SD, R9905 and 8706.
REED R6050SD-PROBE Replacement Temperature & Humidity Probe
Model: R6050SD-PROBE
For use with the REED R6050SD Data Logging Thermo-Hygrometer.
REED RSD-16GB Micro SD Memory Card w/Adapter, 16GB
Model: RSD-16GB
For use with REED SD Series Data Loggers.
