REED R5700 Clamp-On Ground Resistance Tester
Model: R5700 | UPC: 800837002853
REED R5700 Clamp-On Ground Resistance Tester
Model: R5700 | UPC: 800837002853
Enables non-contact measurements of ground conductors without the need for auxiliary ground spikes.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED R5700 Offers

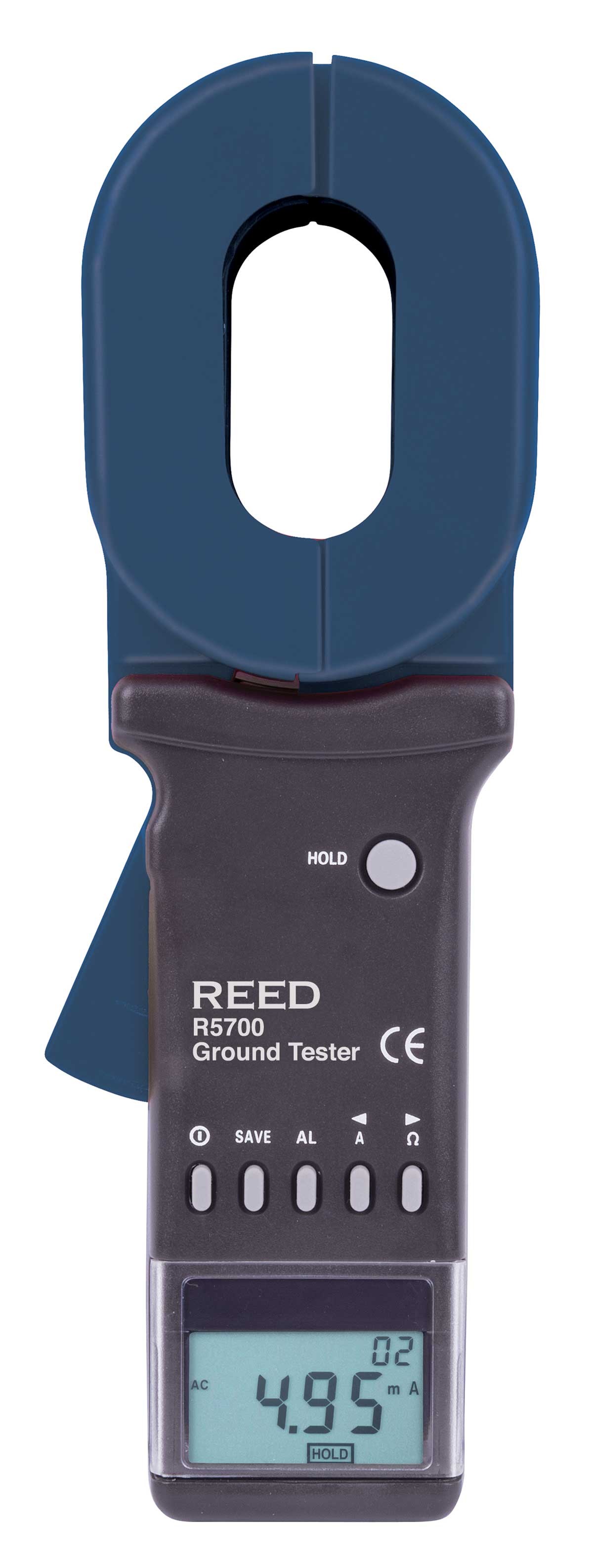

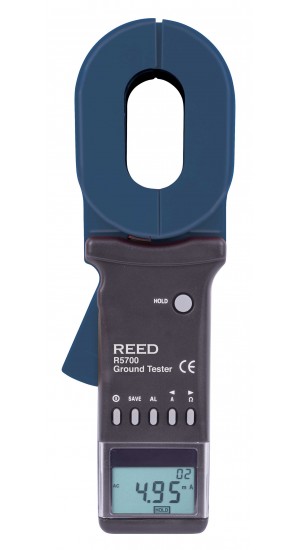

This auto ranging earth resistance clamp meter measures ground resistance and leakage current. The R5700 has internal memory capable of storing up to 99 measurements, allow for a user to set alarm thresholds and features a double molded conductor clamp for added protection.
Features
- Auto-ranging ground resistance and leakage current measurements
- 0.001Ω resolution for low resistance measurements
- 9999-count backlit LCD display
- Internal memory stores up to 99 readings
- User adjustable alarms
- Data hold function
- Durable double molded conductor clamp
- 1.26" (32mm) jaw size for large ground rods
- Low battery indicator and auto shut off
- Cat. III 300V safety rating
REED R5700 Specifications
| Ground Resistance | |
| Ranges | 0.010 to 0.099Ω 0.10 to 0.99Ω 1.0 to 49.9Ω 50.0 to 99.5Ω 100 to 199Ω 200 to 395Ω 400 to 590Ω 600 to 880Ω 900 to 1200Ω |
| Accuracy | 0.010 to 0.099Ω: ±(1% + 0.01Ω) 0.10 to 0.99Ω: ±(1% + 0.01Ω) 1.0 to 49.9Ω: ±(1% + 0.1Ω) 50.0 to 99.5Ω: ±(1.5% + 0.5Ω) 100 to 199Ω: ±(2% + 1Ω) 200 to 395Ω: ±(5% + 5Ω) 400 to 590Ω: ±(10% + 10Ω) 600 to 880: ±(20% + 20Ω) 900 to 1200Ω: ±(25% + 30Ω) |
| Resolution | 0.001Ω 0.01Ω 0.1Ω 1Ω 0.5Ω 1Ω 5Ω 10Ω 20Ω 30Ω |
| Current | |
| Ranges | 0 to 9.95A 10 to 99mA 100 to 300mA 0.30 to 2.99A 3 to 9.9A 10 to 30A |
| Accuracy | 0 to 9.95A: ±(2.5% + 1mA) 10 to 99mA: ±(2.5% + 5mA) 100 to 300mA: ±(2.5% + 10mA) 0.30 to 2.99A: ±(2.5% + 0.1A) 3 to 9.9A: ±(2.5% + 0.3A) 10 to 30A: ±(2.5% + 0.5A) |
| Resolution | 0.5mA, 0.1mA, 1mA, 0.01A, 0.1A, 0.1A |
| General Specifications | |
| Range Selection | Autoranging |
| Sampling Time | 0.5s |
| Display | 9,999 count LCD display |
| Backlit LCD | Yes |
| User Selectable Alarms | Yes |
| Display Hold | Yes |
| Internal Memory | Yes up to 99 data points |
| Autoshut off | Yes (after 5 mins) |
| Power Supply | 4 "AA" Batteries |
| Over Range Indicator | Yes |
| Low Battery Indicator | Yes |
| Jaw Opening | 1.26" (32mm) |
| Overvoltage Category | CAT. III 300V |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 11.2 x 3.3 x 2.2" (285 x 85 x 56mm) |
| Weight | 2.6lbs (1160g) |

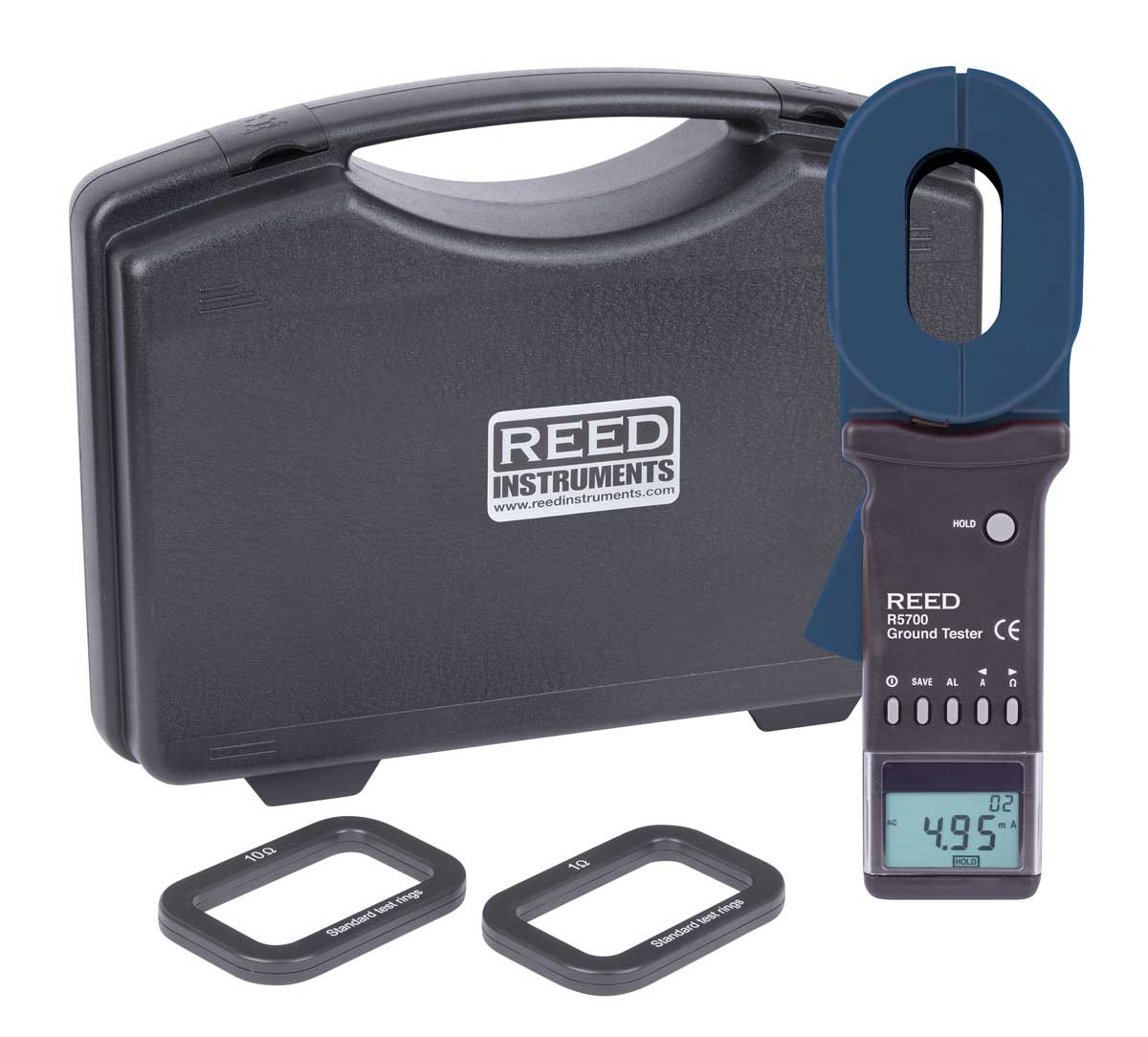

What's included with the REED R5700
- R5700 Ground Resistance Tester
- 2 Resistance Calibration Loops (1Ω and 10Ω)
- Batteries
- Hard Carrying Case
Ideal Applications for the REED R5700
- Ground resistance of lightning arrestors
- Electrical distribution equipment
- Telecommunication systems
- Oil field equipment
- Gas station installations
