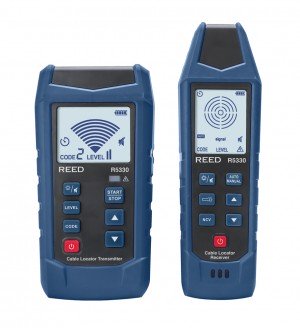

REED R5330 Advanced Cable Locator
Model: R5330 | UPC: 800837006943
REED R5330 Advanced Cable Locator
Model: R5330 | UPC: 800837006943
The R5330 Advanced Cable Locator offers high-precision wire and conductor tracing with adjustable sensitivity and a clear LCD display for accurate signal monitoring.
REED R5330 Offers
This Advanced Cable Locator is a powerful tool for field troubleshooting, wiring diagnostics, and verifying electrical installations. Designed to trace both powered and unpowered wires, cables, and metallic conductors in walls, ceilings, floors, and underground, it offers high precision with its coded transmission and adjustable sensitivity settings. The backlit LCD screen displays essential information such as signal strength, transmission codes, and voltage presence, ensuring accurate monitoring in various environments.
The R5330 is ideal for identifying breaks, short circuits, and open-circuit interruptions in cables, underfloor heating systems, and other conductors. It can also detect faults in radiant heating systems, trace metallic water pipes, heating radiators, and buried conductors, and sort and identify conductor pairs.
Features
- LCD screens display signal strength, transmission code, and voltage presence
- Coded transmission for increased precision
- Audible and visual signal strength indicators with variable tone
- Adjustable sensitivity
- Backlit LCD
- Integrated flashlight supports applications in low lit environments
- Built-in non-contact voltage detector
- Low battery indicator and auto shut-off
REED R5330 Specifications
| Transmitter | |
| External Voltage | 8 to 480V |
| External Voltage Frequency | 50 to 60Hz |
| External Voltage Accuracy | ±(2.5% rdg. +3 dgt.) |
| External Voltage Voltage Detection | 480V AC/DC |
| External Voltage Over Voltage Category | CAT. III 480V |
| Output Signal Frequency | 33kHz |
| Display | LCD |
| Backlit Display | Yes |
| Adjustable Sensitivity | Yes (3 levels) |
| Fuse Protection | Yes (F0.6A 600V) |
| Replaceable Leads | Yes |
| Magnetic Hanging Strap Compatible | Yes (R5900 sold separately) |
| Auto Power Off | Yes |
| Power Supply | 6 x AA Batteries |
| Low Battery Indicator | Yes |
| Battery Life | 10 hours |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Altitude | ≤6561' (2000m) |
| Overvoltage Category | CAT. III 600V |
| Product Certifications | CE, UKCA, RoHS |
| Dimensions | 7.4 x 3.8 x 1.9" (189 x 96 x 48mm) |
| Weight | 18.6oz (528g) |
| Receiver | |
| Output Signal Frequency | 33kHz |
| Detection Depth | Single Pole: (0 to 2.5m) Double Pole: (0 to 0.5m) Voltage Detection: (0 to 0.4m) |
| Analog Bargraph Display | Yes |
| Adjustable Sensitivity | Yes (3 levels) |
| Non-Contact Voltage Detector | Yes (80-1000V, 50/60Hz) |
| Built-in Flashlight | Yes |
| Auto Power Off | Yes |
| Power Supply | 6 x AAA Batteries |
| Low Battery Indicator | Yes |
| Battery Life | 15 hours |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Altitude | ≤6561' (2000m) |
| Product Certifications | CE, UKCA, RoHS |
| Dimensions | 8.9 x 2.7 x 1.5" (226 x 68 x 38mm) |
| Weight | 12.5oz (354g) |
What's included with the REED R5330
- Transmitter
- Receiver
- In-line Test Leads
- Alligator Clips
- Lantern-Tip Test Probes
- Ground Rod
- Batteries
- Carrying Case
Ideal Applications for the REED R5330
- Field troubleshooting and wiring diagnostics
- Verification of electrical installations
- Trace powered and unpowered wires, cables, and conductors in walls, ceilings, floors, and underground
- Identify breaks, short circuits, and interruptions (open-circuits) in cables, conductors, and underfloor heating systems
- Detect faults in floor radiant heating systems and locate short circuits
- Locate and trace metallic water pipes, heating radiators, and buried metallic conductors
- Identify and trace fuses, circuit breakers, and branch circuits within distribution panels
- Perform underground circuit tracing and fault location in electrical circuits
- Find constricted sections in non-conductive pipes (e.g., plastic)
- Sort and identify conductor pairs
