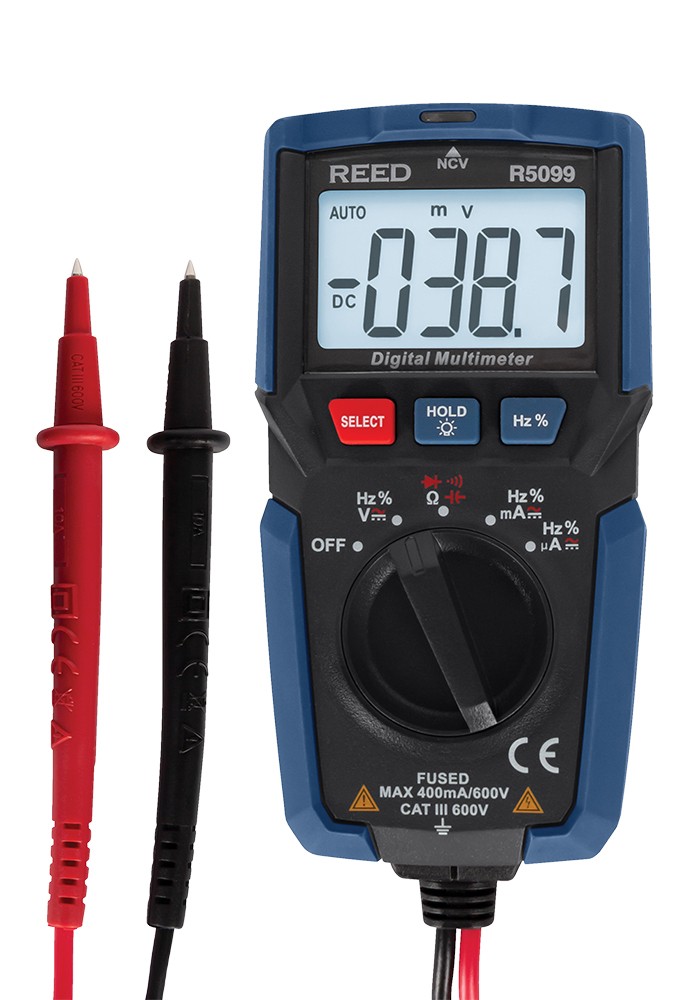

REED R5099 Compact Multimeter with NCV
Model: R5099 | UPC: 800837005380
REED R5099 Compact Multimeter with NCV
Model: R5099 | UPC: 800837005380
Autoranging digital multimeter with built-in non-contact voltage (NCV) detector and 4,000 count backlight LCD display.
REED R5099 Offers
This versatile compact-sized multimeter measures AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial and industrial buildings.
Features
- Measures AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity
- Built-in non-contact voltage detector and double molded plastic housing
- 4,000-count backlit LCD display
- Low battery indicator and auto shut-off
- CAT III 600V safety rating
REED R5099 Specifications
| AC/DC Voltage | |
| Range | AC: 4, 40, 400, 600V DC: 400mV, 4, 40, 400, 600V |
| Accuracy | AC: 4, 40V ±(1.2% rdg. + 5 dgt.) 400, 600V ±(2% rdg.+ 10 dgt.) DC: 400mV ±(1% rdg.+ 8 dgt.) 4, 40V ±(0.5% rdg.+ 5 dgt.) 400, 600V ±(0.8% rdg.+ 5 dgt.) |
| Resolution | AC: 0.01, 0.01, 0.1, 1V DC: 0.1mV, 0.001, 0.01, 0.1, 1V |
| AC/DC Current | |
| Range | 400μA, 4, 40, 400mA |
| Accuracy | AC: 400μA, 4, 40, 400mA ±(2% rdg. + 8 dgt.) DC: 400μA, 4, 40, 400mA ±(1.8% rdg. + 5 dgt.) |
| Resolution | 0.1μA, 0.001, 0.01, 0.1mA |
| Resistance | |
| Range | 400Ω, 4, 40, 400kΩ, 4, 40MΩ |
| Accuracy | 400Ω, 4, 40, 400kΩ: ±(1% rdg. + 5 dgt.) 4MΩ: ±(1.2% rdg. + 10 dgt.) 40MΩ: ±(2% rdg. + 10 dgt.) |
| Resolution | 0.1, 1, 10, 100Ω, 1, 10kΩ |
| Capacitance | |
| Range | 50, 500nF, 5, 50, 100μF |
| Accuracy | 50nF: ±(4% rdg.+ 30 dgt.) 500nF: ±(3% rdg. + 15 dgt.) 5, 50, 100μF: ±(4% rdg. + 10 dgt.) |
| Resolution | 0.01, 0.1, 1, 10, 100nF |
| Frequency | |
| Range | 9.999Hz to 60kHz |
| Accuracy | ±(0.1% rdg. + 5 dgt.) |
| Resolution | 0.001Hz to 0.001MHz |
| General Specifications | |
| Range Selection | Autoranging |
| Display | 4,000 count LCD display |
| Display Hold | Yes |
| Diode Test | Yes |
| Continuity Check | Audible signal if resistance ≤10Ω |
| Non-Contact Voltage Detector | Yes |
| Auto Power Off | Yes (after 30 minutes) |
| Power Supply | 2 x AAA |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | No |
| Overange Indicator | Yes (OL) |
| Overvoltage Category | CAT III 600V |
| Product Certifications | CE |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Dimensions | 4.4 x 2.3 x 1.4" (112 x 58 x 35mm) |
| Weight | 6.3oz (180g) |
What's included with the REED R5099
- Compact Multimeter
- Test Leads
- Batteries
REED R5099 Compact Multimeter with NCV
Measure AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity with this versatile, compact-sized multimeter which features a built-in non-contact voltage detector that quickly detects live voltage on electrical circuits, and double molded plastic housing. In addition, it has a 4,000-count backlit LCD display, a low battery indicator and auto shut-off, and a CAT III 600V safety rating.
How To: Test for Continuity with a Multimeter
If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters.
Ideal Applications for the REED R5099
- Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
