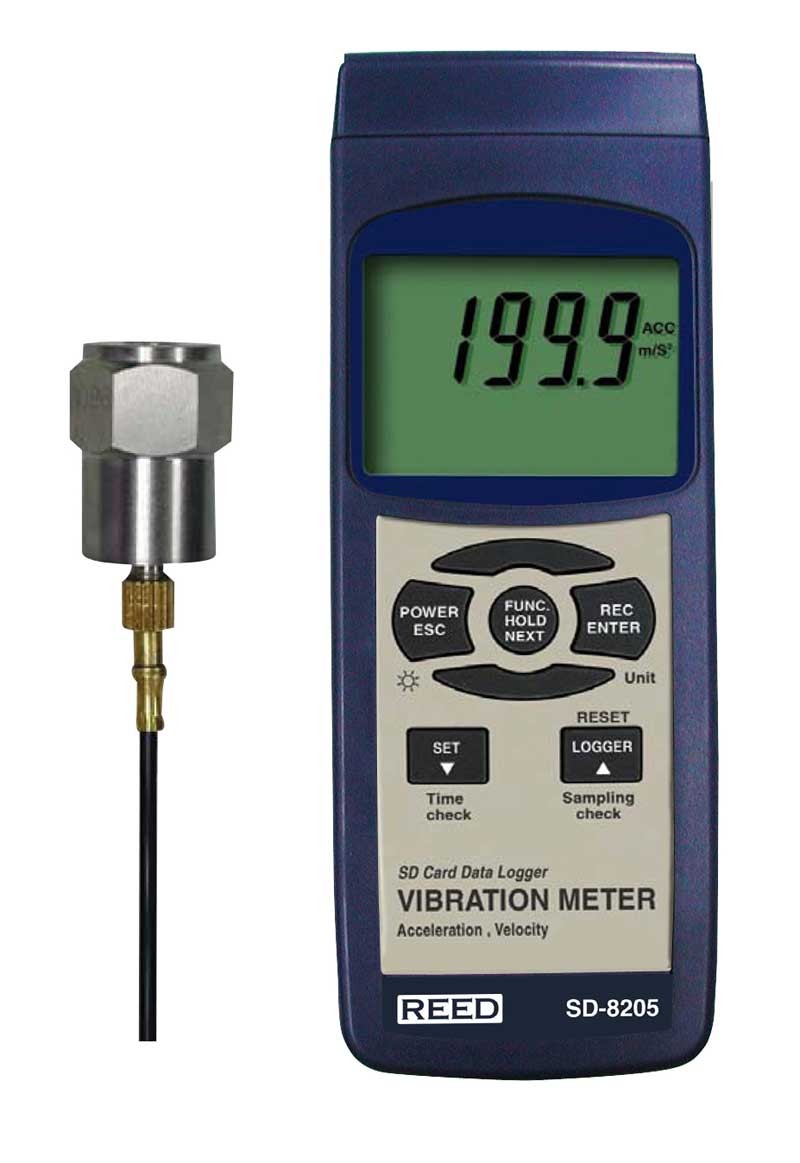

REED SD-8205 Data Logging Vibration Meter
Model: SD-8205 | UPC: 800837001924
REED SD-8205 Data Logging Vibration Meter
Model: SD-8205 | UPC: 800837001924
Real-time data logger with integrated SD memory card (optional) measures/records velocity and acceleration to determine vibration levels in machinery.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED SD-8205 Offers
This SD series datalogging vibration meter measures velocity and acceleration to determine vibration levels in machinery. The SD-8205 meets ISO1954 standards and features RMS, Peak hold, and Max/Min functions. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.
Features
- Measures velocity and acceleration to determine vibration level
- User selectable unit of measure (metric or imperial)
- RMS, Peak hold, Data hold and Max/Min functions
- 10Hz to 1kHz frequency range
- Basic accuracy of +/-5%

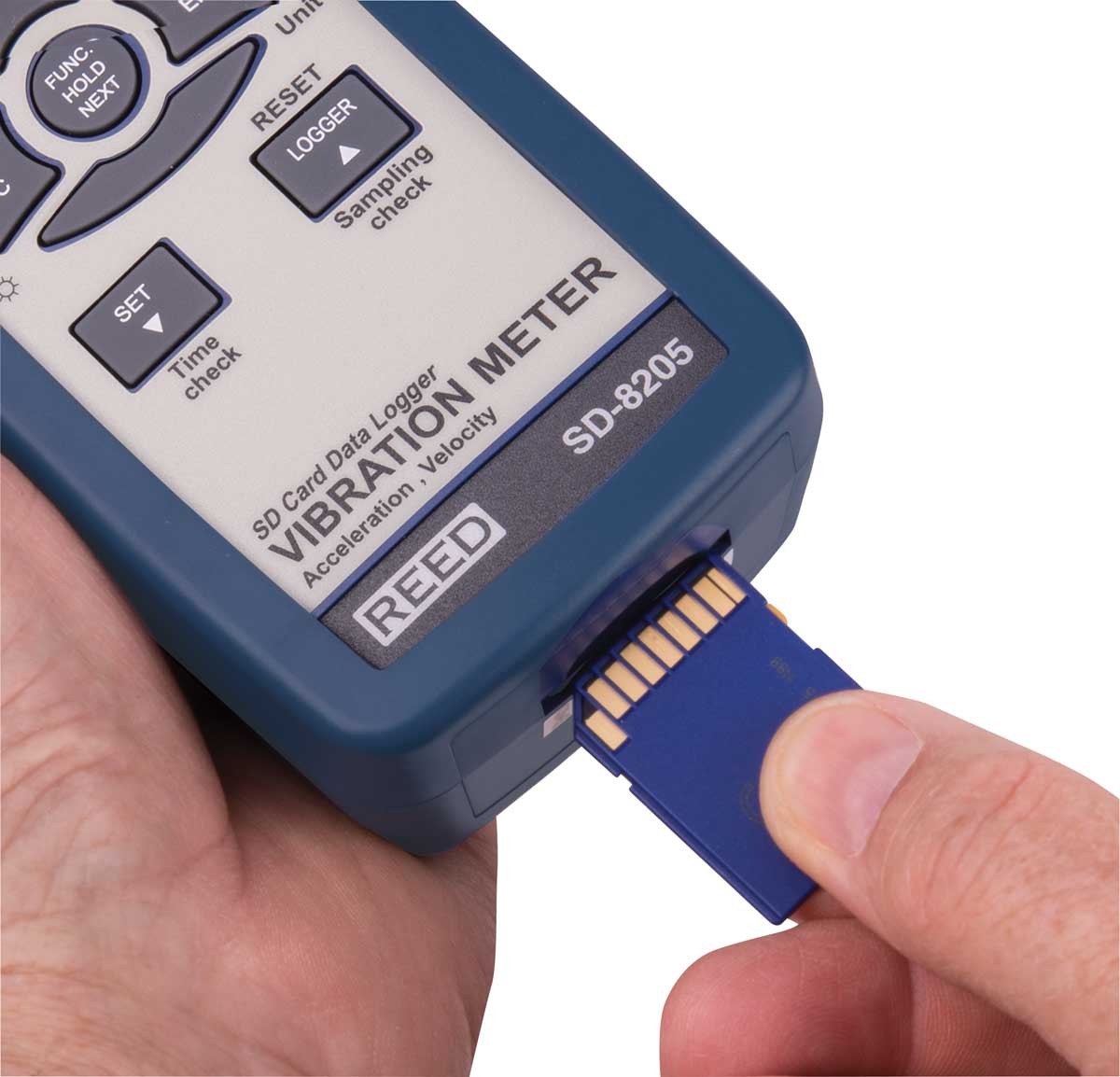

- Real-time datalogger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Optional PC software features live tracking via USB connection
- Tripod mount for long-term monitoring
- Meets ISO1954 standards
- Low battery indicator and auto shut off
REED SD-8205 Specifications
| Acceleration | |
| Measuring Range | 0.5 to 199.9 m/s² 0.05 to 20.39 g 2 to 656ft/s² |
| Accuracy | ±(5% + 2 dgt) |
| Resolution | 0.1m/s² 0.01 g 1 ft/s² |
| Velocity | |
| Measuring Range | 0.5 to 199.9 mm/s 0.05 to 19.99 cm/s 0.02 to 7.87 in/s |
| Accuracy | ±(5% + 2 dgt) |
| Resolution | 0.1 mm/s 0.01 cm/s 0.01 in/s |
| General Specifications | |
| Response Time | 1 sec |
| Frequency Range | 10Hz - 1KHz |
| Display | 4-digit LCD |
| Backlit Display | Yes |
| RMS, Peak and Max Hold Measurements | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Zero Adjustment | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s) |
| External Memory | Yes, expandable up to 16Gb with SD card (optional) |
| Auto Shut-off | Yes (after 10 mins/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Probe Cable Length | 47.2" (1.2m) |
| Power Supply | 6 x AA batteries or AC Adapter (optional) |
| Output | Yes |
| PC Connectivity | USB Cable (optional) |
| Software | SW-U801-WIN Software (optional) |
| Software OS Compatibility | Windows XP / Vista / 7 |
| Product Certifications | CE |
| Operating Temperature | 0 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-85% |
| Dimensions | Instrument: 9.7 x 2.7 x 1.8" (203 x 76 x 38 mm) Probe: 1.5 x 0.6" (37 x 16 mm) |
| Weight | Instrument: 17.3oz (515g) Probe: 3.5oz (99g) |

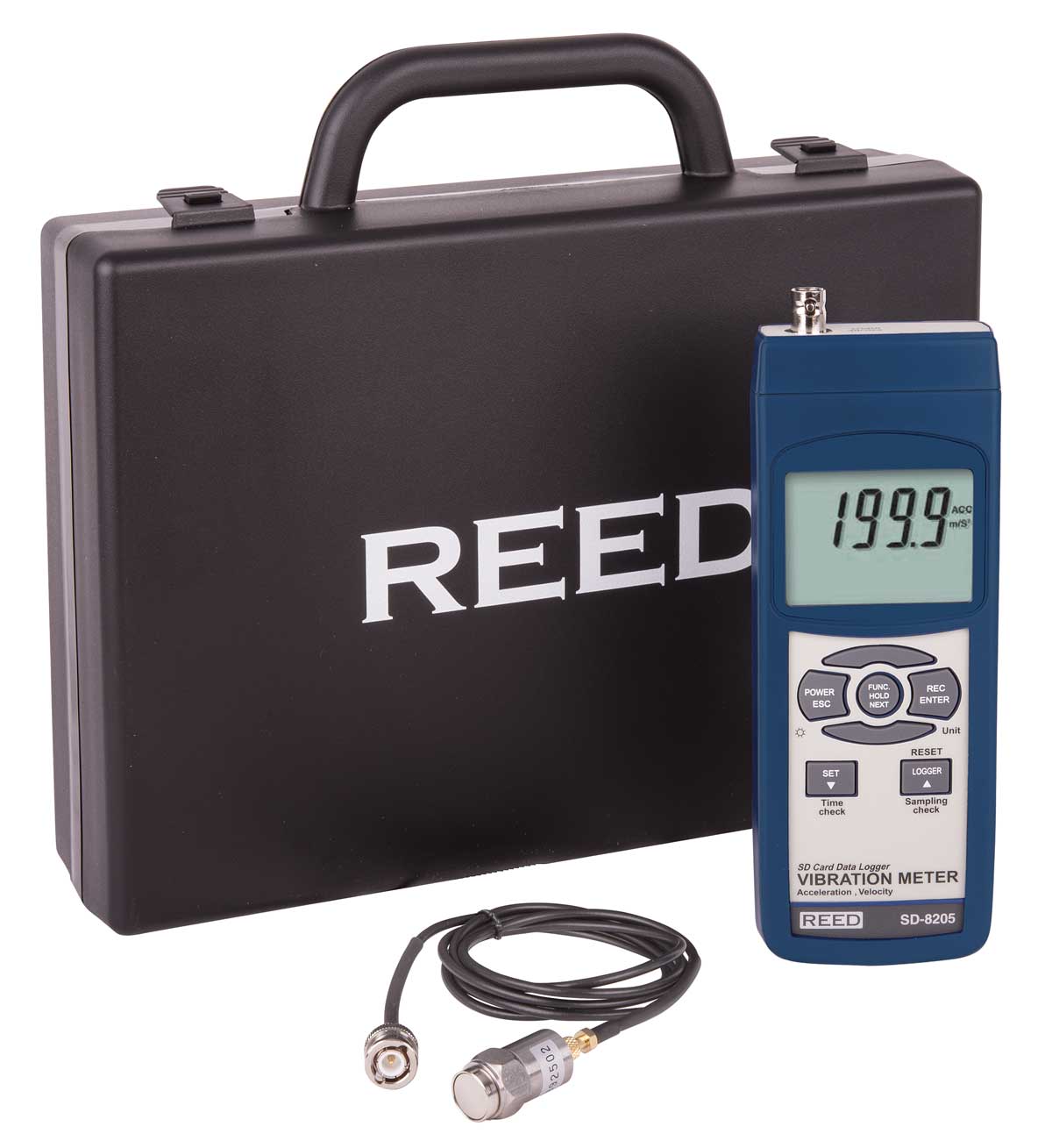

What's included with the REED SD-8205
- Vibration Meter, Datalogger
- Vibration Probe with 47.2" (1.2m) Cable
- Hard Carrying Case
- Batteries
Ideal Applications for the REED SD-8205
- Evaluation of rotational industrial equipment (fans, pumps, turbines, compressors, conveyors, motors and bearings)
- Equipment shock and pulsation checks
- Preventative maintenance programs
- Power hand tools and transportation equipment
