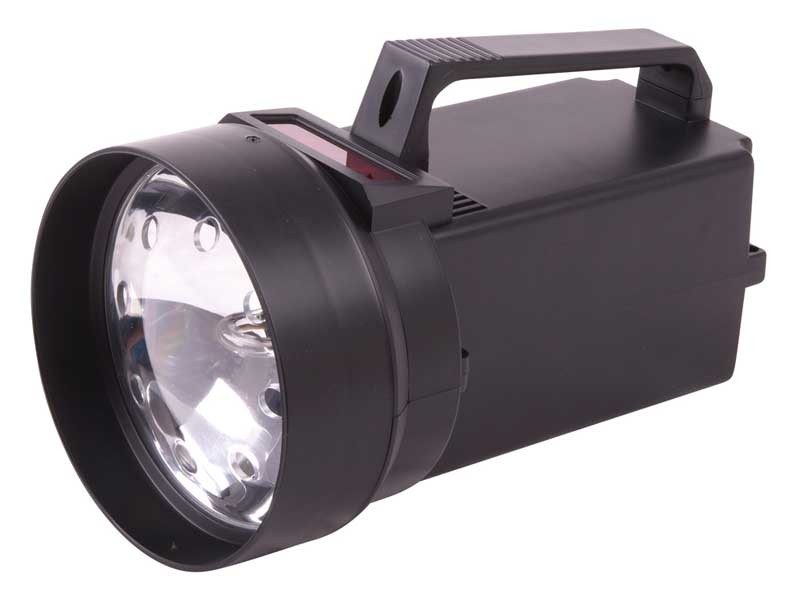

REED K4020 Digital Stroboscope, 110V
Model: K4020 | UPC: 800837000675
REED K4020 Digital Stroboscope, 110V
Model: K4020 | UPC: 800837000675
High accuracy, includes tripod mount for stationary use.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED K4020 Offers
This digital stroboscope freezes the motion and measures the speed of a rotating object, without contact. The K4020 features flash rate speeds from 100 to 10,000 RPM, a xenon light bulb and bright LED display.
Features
- Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (FPM)
- Basic accuracy of ±0.05%
- 4-digit LED display
- 5 to 30 minute duty cycle (RPM dependent)
- Tripod mount for stationary use
- 6 foot power cord
REED K4020 Specifications
| Flash Range | 100 to 10,000 RPM |
| Resolution | 1 RPM |
| Basic Accuracy | ±(0.05% + 1 dgt.) |
| Flash Tube Specifications | |
| Type | Xenon lamp |
| Flash Duration | Approx. 60 to 1000 µs |
| Flash Color | Xenon white 6,500°K |
| Flash Energy | 4 Watt-seconds (joules) |
| Beam Angle | 80 degrees |
| General Specifications | |
| Response Time | <1 sec |
| Sampling Time | 1x/sec |
| Display Size/Type | 4 Digit LED Display |
| Tripod Mount | Yes |
| Power Supply | 110VAC, 50/60 Hz |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10-80% |
| Dimensions | 8.3 x 4.8 x 4.8" (201 x 120 x 120 mm) |
| Weight | 2.2lbs (1kg) |
What's included with the REED K4020
- Digital Stroboscope
- Light Bulb
- Power Cord
High Accuracy K4020 Digital Stroboscope
Observe motors and other rotating machinery with digital stroboscopes. The REED K4020 measures the speed of moving gears, fans, centrifuges, pumps, motors and other rotational equipment.
Ideal Applications for the REED K4020
Measure speed of moving gears, fans, centrifuges, pumps, motors and other rotational equipment.
