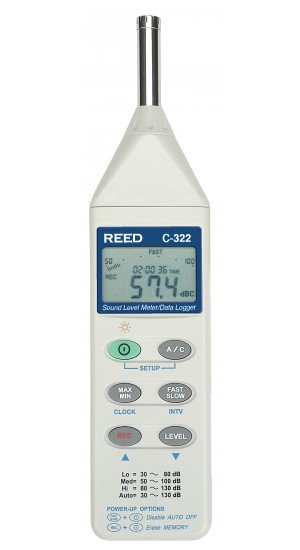

REED C-322 Sound Level Meter/Data Logger, 32 to 130dB
Model: C-322
REED C-322 Sound Level Meter/Data Logger, 32 to 130dB
Model: C-322
This datalogging sound level meter records up to 32,000 readings and is auto-ranging from 30 to 130 dB.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
REED C-322 Offers
Features
- IEC651 Type II
- Auto-ranging from 30 to 130 dB
- Dynamic range of 50 dB
- 32,000 record datalogger
- User selectable sampling intervals
- Real-time clock logs each data point with time and date
- 4-digit backlit display with analog bar graph
- AC and DC output
- Max/Min function
- Auto power off
REED C-322 Specifications
| Measuring Range | 32 to 80 dB, 50 to 100 dB, 80 to 130 dB |
| Resolution | 0.1 dB |
| Accuracy | ±1.5 dB @ 94 dB |
| Frequency Range | 31.5 Hz to 8 kHz |
| Power Supply | 1 x 9V alkaline battery |
| Battery Life | 120 hours typical |
| Dimensions | 275 x 64 x 30mm (10.8 x 2.5 x 1.2") |
| Weight | 285g (0.55lb) |
What's included with the REED C-322
- C-322 Sound Level Meter/Data Logger
- Calibration Screwdriver
- Windshield Ball
- RS232 Cable
- Windows Datalogging Software
- Carrying Case
- Battery
Ideal Applications for the REED C-322
- Measure and log the amount of sound that is happening in a specific location
- Monitor your work conditions
- Environmental impact studies
