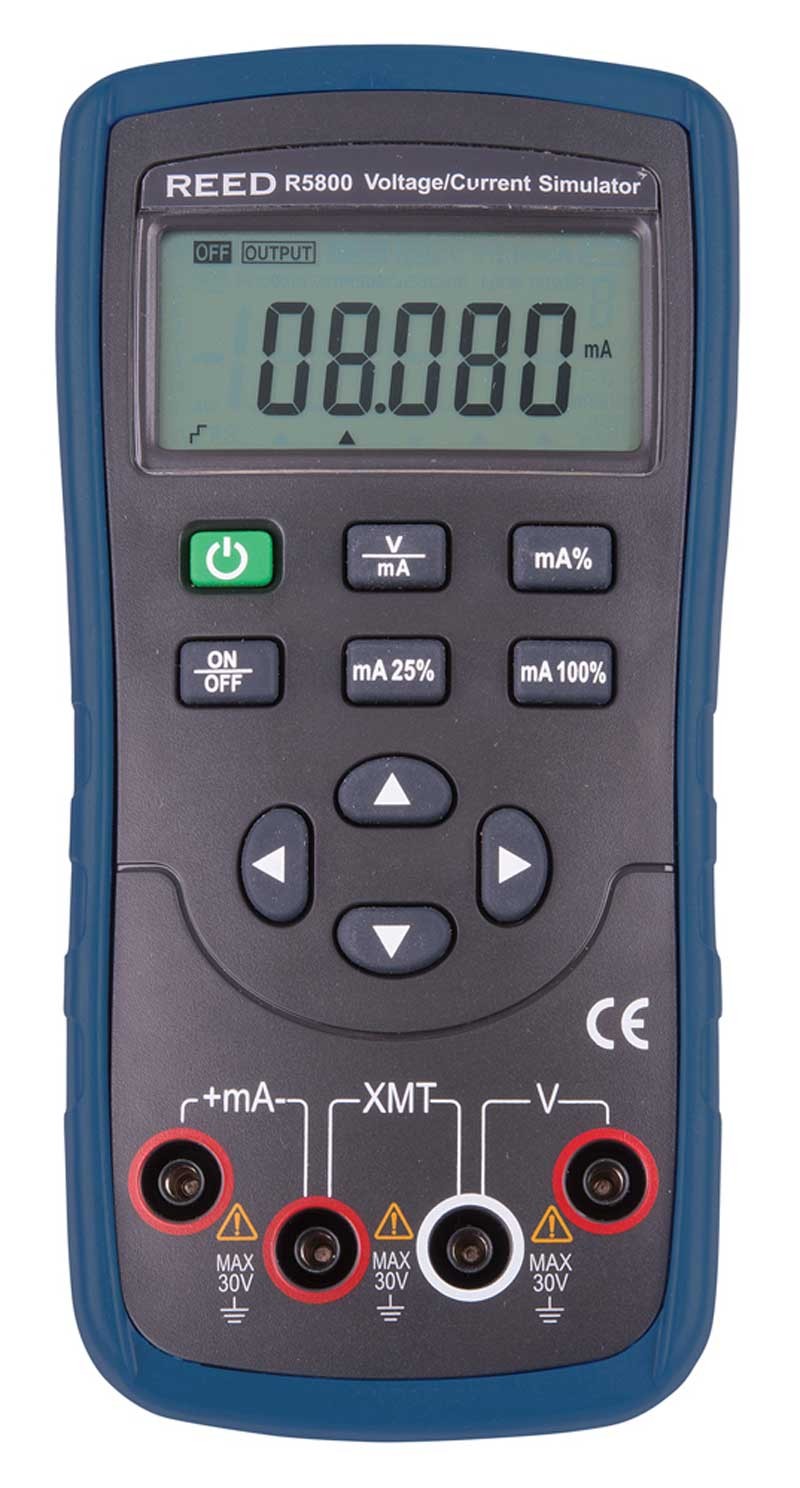

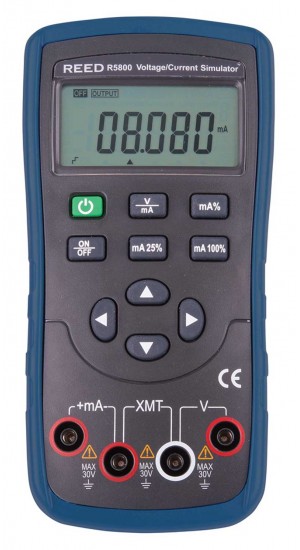

REED R5800 Voltage/Current Simulator

Model: R5800 | UPC: 800837002693

This voltage/current simulator sources voltage and current and has a 5 digit LCD readout.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R5805 Voltage/Current Simulator

Model: R5805

This voltage/current simulator sources voltage and current and has a 6-digit LCD readout.

Learn More

REED R5800 Offers

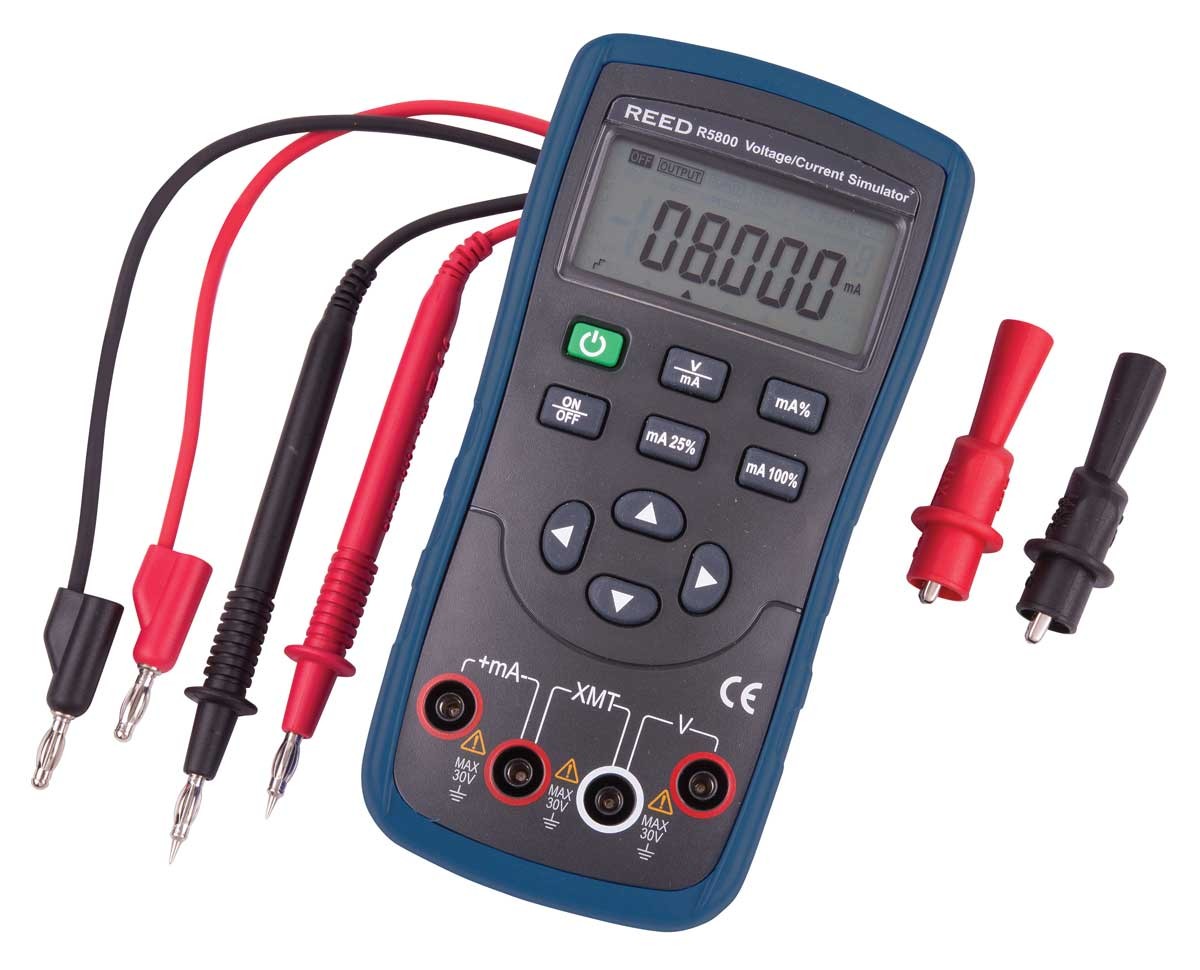

This voltage/current simulator is capable of sourcing voltage and current. The R5800 features an easy-to-read 5-digit LCD display, protective boot and kickstand.

Features

Sources voltage and current
5-digit LCD display
Automatic calibration
Low battery indicator and auto shut off

REED R5800 Specifications

DC Voltage
Range	10V
Output Range	0.000 to 11.000V
Resolution	1mV
Accuracy	±0.05% of set value ±2mV
DC Current
Range	20mA
Output Range	0.000 to 22.000mA
Resolution	0.001mA
Accuracy	±0.05% of set value ±4μA
Analog Transducer
Range	-20mA
Output Range	0.000 to -22.000mA
Resolution	0.001mA
Accuracy	±0.05% of set value ±4μA
Loop Power
Range	24V
Accuracy	±10%
General Specifications
Display	5-Digit LCD
Kick Stand	Yes
Battery Life	Approx. 20 hours
Power Supply	2 AA Batteries
Auto shut off	Yes (after 15 mins/off)
Low Battery Indicator	Yes
Replaceable Test Leads	Yes
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity Range	0 to 85%
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Weight	8.2oz (500g)
