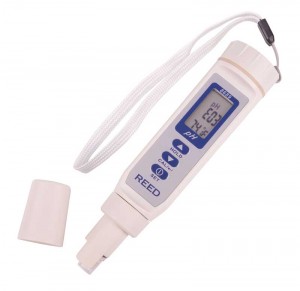

REED 8689 pH Meter

Model: 8689 | UPC: 800837000033

REED 8689 pH Meter-

◀ ▶

datasheet manual

Ask an Expert

REED 8689 pH Meter

Model: 8689 | UPC: 800837000033

High accuracy, compact IP65 waterproof housing with replaceable electrode.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

REED 8689 Offers

This Digital pH pen displays both temperature and pH simultaneously on a dual LCD display. The 8689 features automatic temperature compensation for accurate readings and includes easy one touch calibration.

Features

Dual LCD displays temperature and pH measurements
User selectable °F or °C
Automatic temperature compensation
One touch calibration with adjustable points
Easily replaceable pH electrode module
Data hold function
Waterproof housing (IP65)
Protective cap keeps sensor moistened
Low battery indicator and auto shut off

REED 8689 Specifications

Temperature
Measuring Range	32 to 140°F (0 to 60°C)
Accuracy	±1.8°F (1°C)
Resolution	0.1°F/°C
pH
Measuring Range	0.00 to 14.00
Accuracy	±0.05 pH
Resolution	0.01 pH
General Specifications
Display	Dual Display, LCD
Data Hold	Yes
Auto Shut-off	Yes (after 20 mins)
Waterproof	Yes (IP65)
Low Battery Indicator	Yes
Power Supply	4 x LR44 Cell Batteries
Product Certifications	CE
Operating Temperature	32 to 140°F (0 to 60°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10-80%
Dimensions	6.9 x 1.5 x 1.5" (176 x 39 x 39mm)
Weight	3.9 oz (110 g)
