REED RINDUST-KIT Industrial Combo Kit

Model: RINDUST-KIT

REED RINDUST-KIT Industrial Combo Kit

Downloads:
datasheet
Ask an Expert Find This Product Near You

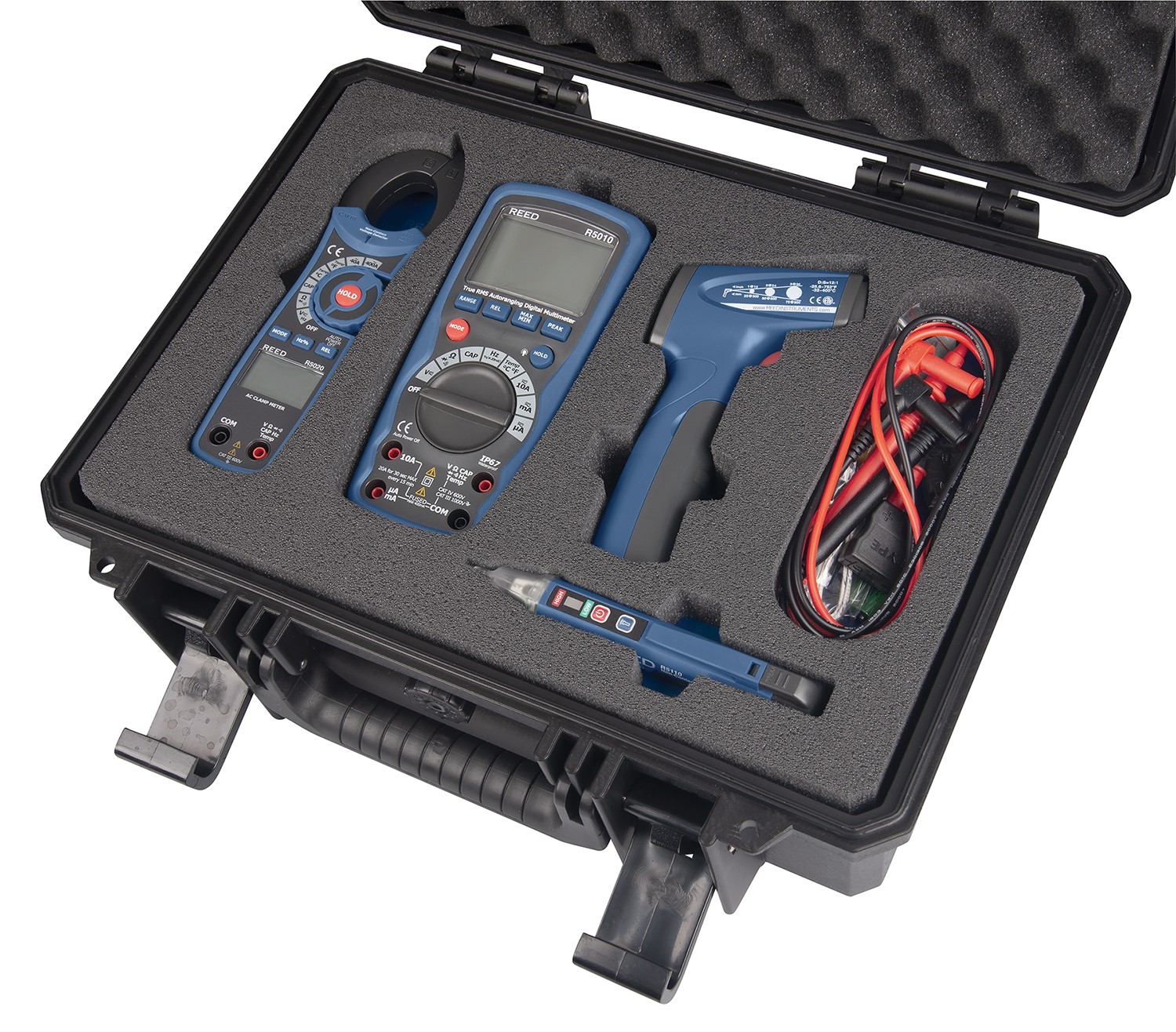

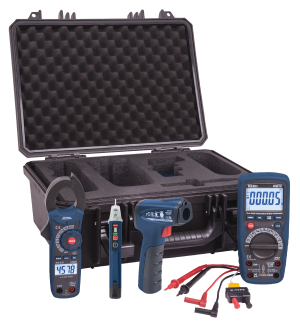

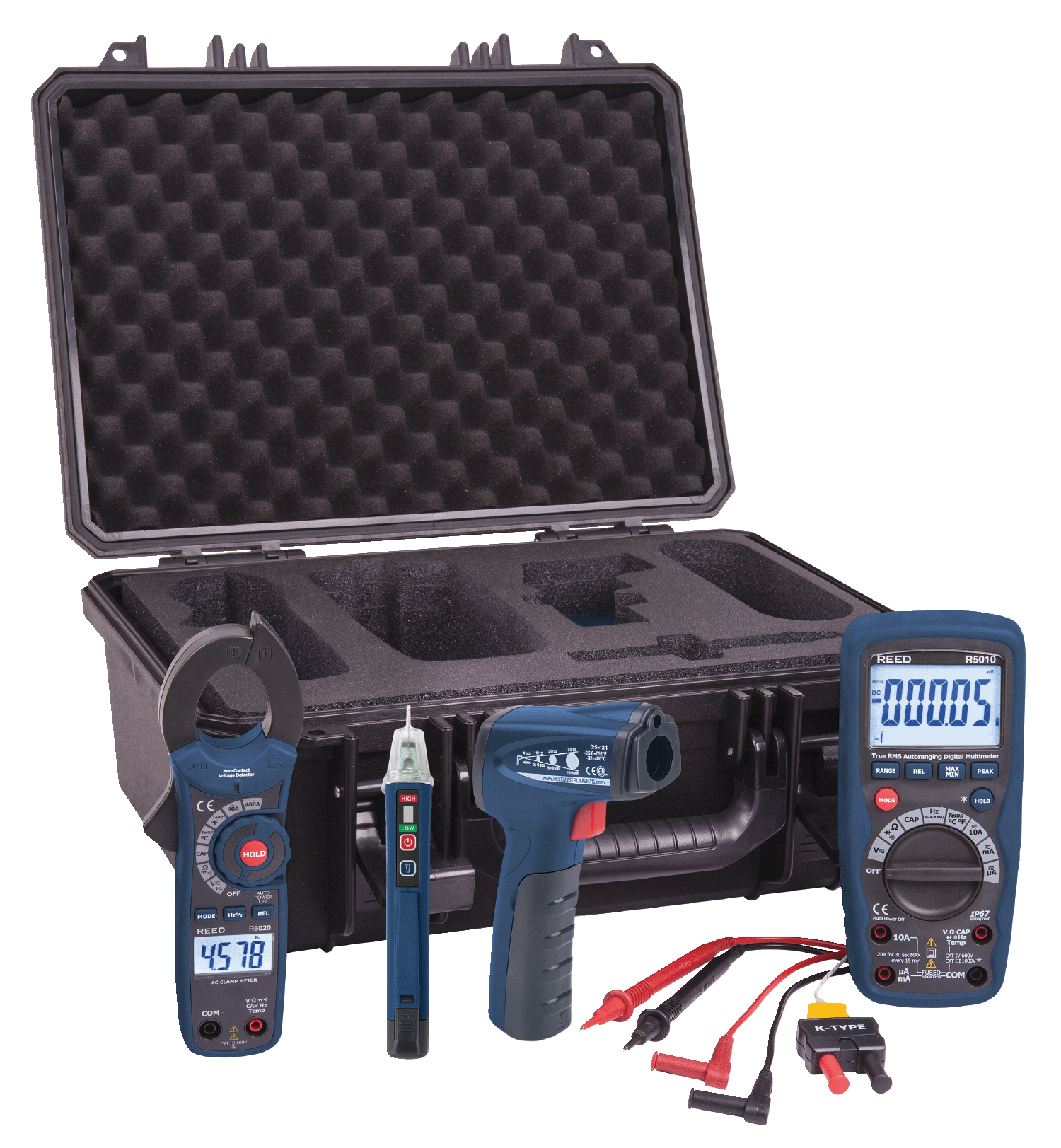

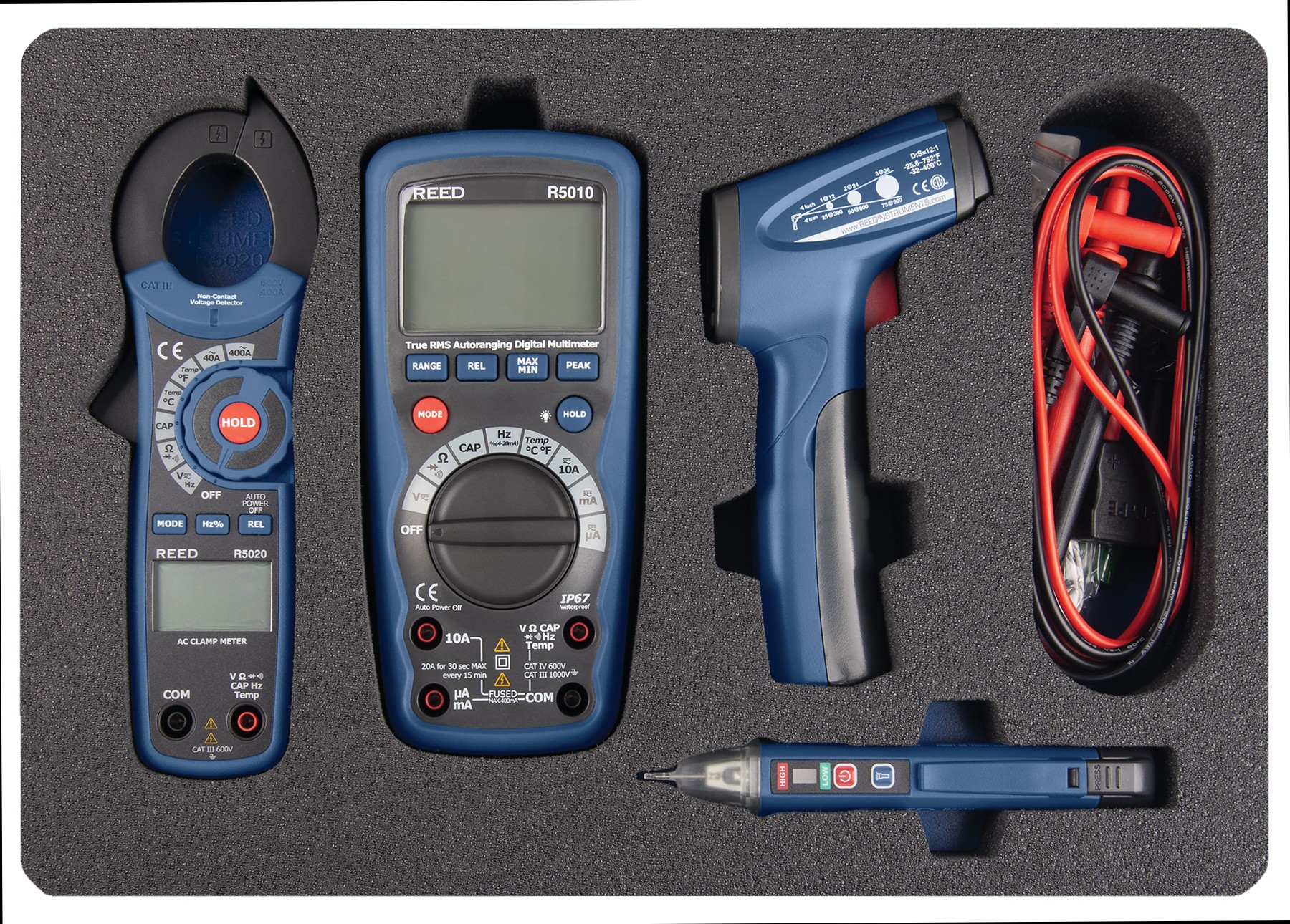

This Industrial Combo Kit includes the tools required for your plant maintenance needs. The RINDUST-KIT includes a Multimeter, Clamp Meter, AC Voltage Detector, Infrared Thermometer and Hard Carrying Case. The carrying case features a customized foam insert built specifically to store and protect the included instruments.

REED RINDUST-KIT Offers

REED R5010 True RMS Waterproof Digital Multimeter

This True RMS autoranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph.

Features

  • True RMS measures frequency, resistance, capacitance and temperature
  • Diode check and continuity functions
  • Backlit LCD readout with analog bar graph
  • 4-20 mA process loop measurements with % readout
  • Data hold, Max/Min and Peak capture mode
  • IP67 dust and waterproof
  • Cat. IV 600V, Cat. III 1000V safety rating

REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector

This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Features

  • Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature
  • 4000-count LCD display with low battery and overrange indicators
  • Built-in non-contact voltage detector with LED indicator
  • Display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing
  • Cat. III 600V safety rating

REED R2002 Infrared Thermometer

This pocket-sized compact infrared thermometer features on screen min/max temperature readings and a backlit display allowing you to take measurements in low-light environments. The R2002 also features an 8:1 distance to spot ratio and is capable of measuring temperature applications up to 932°F (500°C).

Features

  • Built-in laser pointer identifies target area
  • Compact size
  • 8:1 distance to spot size ratio
  • User selectable °F or °C
  • Fixed emissivity covers 90% of applications
  • Automatic data hold with on-screen min/max readings
  • Backlit display
  • Low battery indication and auto shut off

REED R5100 AC Voltage Detector

This instrument is capable of detecting the presence of AC voltage from a safe distance. The R5100 features audible/visual indicators, a built-in flashlight and convenient pocket clip.

Features

  • Suitable for outlets or against insulated wire
  • Built-in flashlight
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators when voltage present
  • For use on 50/60Hz circuits
  • Pocket clip
  • Auto shut off
  • CE and UL approved
  • Cat. III 1000V, Cat. IV 600V safety ratings

REED AD-1 Thermocouple Adapter

For use with REED multimeters and clamp meters with contact temperature functionality. Measurement accuracy and temperature range are dependent upon probe.


REED TP-01 Type K Thermocouple Wire Probe

Features

  • Measurement range: -40 to 482°F (-40 to 250°C)
  • For general purpose temperature applications
  • Fast response time
  • Compatible with Type-K temperature measuring instruments
  • 38" (96.5cm) wire length

REED TL-88-1 Safety Test Lead Set, Double Insulated

Features

  • Sharp points for piercing insulation
  • Stainless steel tips
  • Ergonomic comfort grip
  • 48" (1.2m) long
  • 0.2" (5mm) tip length
  • 6.1" (155mm) probe length
  • 1000V, 10A
  • CAT III. 1000V and CAT IV. 600V
  • CE certified

REED R8890 Deluxe Hard Carrying Case, 15.7 x 12.6 x 6.7"

Features

  • Customizable foam interior
  • O-ring creates watertight seal
  • Pressure equalization valve
  • Double latch & lock system
  • Internal dimensions: 14.2 x 10.1 x 4.5" ( 361 x 257 x 114mm)
  • External dimensions: 15.7 x 12.6 x 6.7" (399 x 320 x 170mm)
  • Weight: 6lbs (2.72kg)

REED R5010 Specifications

AC/DC Voltage
Range AC: 400mV, 4, 40, 400, 1000V
DC: 400mV, 4, 40, 400, 1000V
Accuracy AC: 400mV ±(1.0% rdg. + 5 dgt.)
4, 40, 400, 1000V ±(1.0% rdg. + 3 dgt.)
DC: 400mV/4,40,400V ±(0.06% rdg. + 2 dgt.)
1000V ±(0.1% rdg. + 5 dgt.)
Resolution AC: 0.1mV, 0.001, 0.01, 1V
DC: 0.01mV, 0.0001, 0.01, 0.1V
AC/DC Current
Range 400, 4000µA, 40, 400mA, 10A
Accuracy AC: ±(1.5% rdg. + 3 dgt.)
DC: ±(1.0% rdg. + 3 dgt.)
Resolution AC: 0.1, 1µA, 0.01,0.1mA, 0.01A
DC: 0.01, 0.1µA, 0.001,0.01mA, 0.001A
Resistance
Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy 400Ω: ±(0.3% rdg. + 9 dgt.)
4, 40, 400kΩ, 4MΩ: ±(0.3% rdg. + 4 dgt.)
40MΩ: ±(2.0% rdg. + 10 dgt.)
Resolution 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.001MΩ
Capacitance
Range 40, 400nF, 4, 40, 400, 4000µF, 40mF
Accuracy 40, 400nF: ±(3.5% rdg. + 40 dgt.)
4, 40, 400µF: ±(3.5% rdg. + 10 dgt.)
4000µF, 40mF: ±(5% rdg. + 10 dgt.)
Resolution 0.001, 0.01nF, 0.0001, 0.001, 0.01, 0.1µF, 0.001mF
Frequency
Range 40, 400Hz, 4, 40, 400kHz, 4, 40, 100MHz
Accuracy ±(0.1% rdg. + 1 dgt.)
Resolution 0.00, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001, 0.01MHz
Temperature
Range -58 to 1832°F (-50 to 1000°C)
Accuracy ±(1.0% rdg. + 4.5°F)
±(1.0% rdg. + 2.5°C)
Resolution 1°F, 1°C
4-20mA%
Range -25 to 125%
Accuracy ±(50 dgt.)
Resolution 0.01%
General Specifications
Range Selection Autoranging/Manual
True RMS Yes
Display 40,000 count LCD display
Display Hold Yes
Max/Min Yes
Peak Hold Yes
Relative Mode Yes
Diode Test Yes
Backlit Display Yes
Digital Analog Bargraph Yes
Continuity Check Audible signal if resistance ≤35Ω
Duty Cycle Yes (0.1 - 99.9%)
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply 9V Battery
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Overvoltage Category CAT. IV 600V, CAT. III 1000V
Product Certifications CE, IP67, Drop Tested (2M)
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.4 x 3.2 x 2.0" (187 x 81 x 50mm)
Weight 12oz (342g)

This REED RINDUST-KIT Kit Includes


REED R5010 True RMS AC/DC Multimeter & Temperature

REED R5010 True RMS AC/DC Multimeter & Temperature

This multimeter is UL approved, has a 40,000 count display for precise numbers in the field.


REED R5020 AC Clamp Meter

REED R5020 AC Clamp Meter

Measures AC current (40-400A), AC voltage (4-600V), and DC voltage (400mV-600V). In addition, it also measures resistance and capacitance - as well as temperature, with the include Type K thermocouple probe.


REED R2002 Infrared Thermometer

REED R2002 Infrared Thermometer

The Infrared Thermometer features a built-in laser pointer that assists in identifying the target area and thus provides a quick and precise technique for measuring surface temperatures without contact.


REED R5100 AC Voltage Detector

REED R5100 AC Voltage Detector

Durable double molded plastic housing.


REED AD-1 Thermocouple Adapter

REED AD-1 Thermocouple Adapter

This adapter converts any type K temperature probe with a mini connector to standard 3/4" banana jacks.


REED TP-01 Type K Thermocouple Wire Probe

REED TP-01 Type K Thermocouple Wire Probe

Terminated with a standard mini-connector. Connector is color coded according to ANSI standards for identification.


REED TL-88-1 Safety Test Lead Set, Double Insulated

REED TL-88-1 Safety Test Lead Set, Double Insulated

Right angle and straight end flexible leads with shrouded banana plugs.


REED R8890 Deluxe Hard Carrying Case

REED R8890 Deluxe Hard Carrying Case, 15.7 x 12.6 x 6.7"

Professional grade, injection molded hard plastic case with customizable foam inserts.

Calibration Lab

When you purchase a REED product it comes included with a one year warranty. We back our products.
