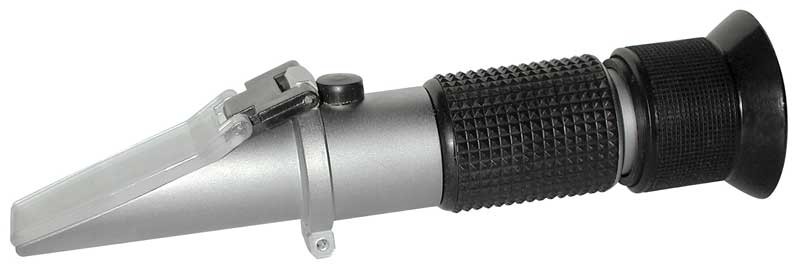

REED R9700 Battery/Antifreeze Refractometer with ATC, C°

Model: R9700

REED R9700 Battery/Antifreeze Refractometer with ATC, C°-


Downloads: datasheet manual
Ask an Expert Find This Product Near You


Monitor the freezing point of both Ethylene Glycol and Propylene Glycol in your battery with this coolant checker.

REED R9700 Offers

This battery coolant/glycol refractometer features Automatic Temperature Compensation (ATC) and monitors the freezing point of both Ethylene Glycol and Propylene Glycol. In addition the R9700 indicates battery recharge level.

Features

  • Measures the freezing point of automotive coolants plus battery charge condition
  • Provides accurate and repeatable measurements of % Ethylene Glycol and Propylene Glycol and C° on easy to read scale
  • Automatic Temperature Compensation (ATC)
  • Requires only 2 or 3 drops of sample

REED R9700 Specifications

Propylene and Ethylene Glycol Measuring Range -50 to 0°C
Resolution 1°C
Specific Gravity of Battery Acid 1.15 to 1.30
Minimum Scale Division 5°C
Automatic Temperature Compensation Range 10 to 30°C
Dimensions 6.5 x 1 x 1.5" (170 x 30 x 40 mm)
Weight 7oz (200g)

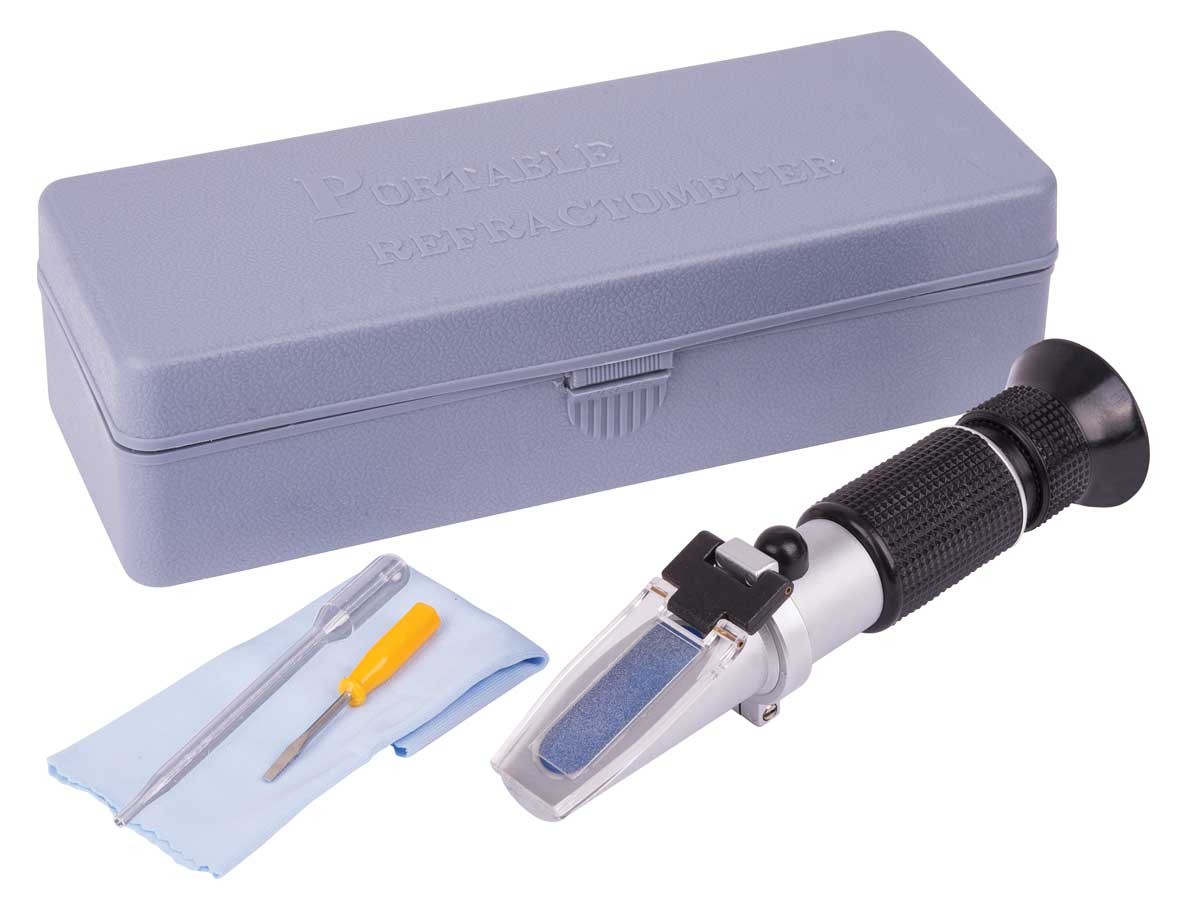

What's included with the REED R9700

  • Refractometer
  • Cover plate
  • Calibration screwdriver
  • Cleaning cloth
  • Solution/Sample applicator
  • Hard carrying case

Ideal Applications for the REED R9700

  • Gas Stations
  • Automotive service shops

Click on a category to view a selection of compatible accessories with the REED R9700 Battery/Antifreeze Refractometer with ATC, C°.

REED RPDPA1 Replacement Refractometer Lens Cover

Model: RPDPA1

Protect your refractometer lens with this cover. For use with REED R9500, R9600 and R9700 refractometers.
