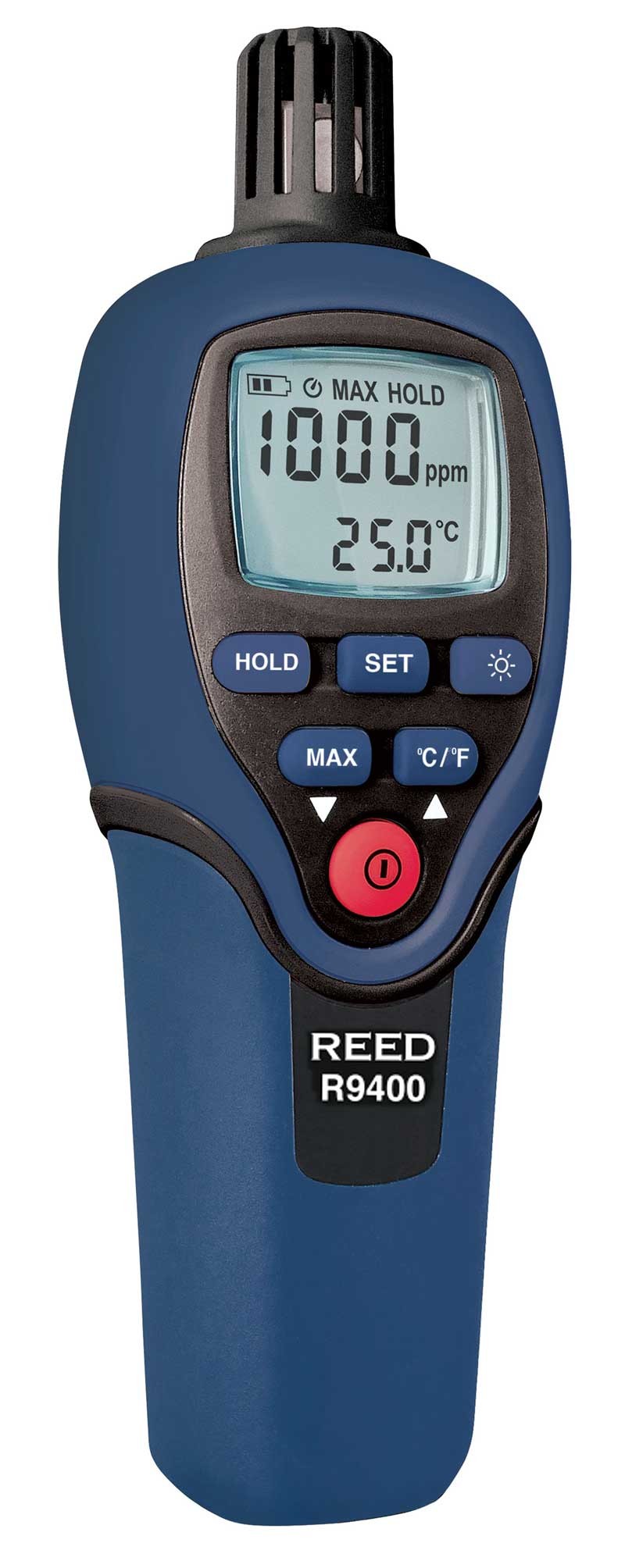

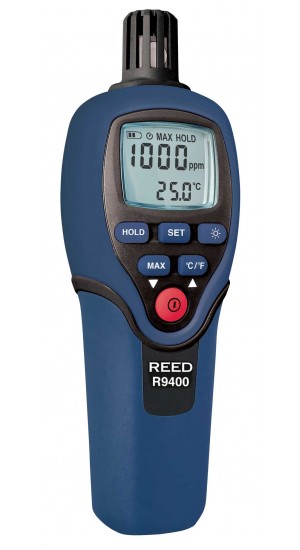

REED R9400 Carbon Monoxide Meter with Temperature

Model: R9400

REED R9400 Carbon Monoxide Meter with Temperature-

Downloads: manual datasheet
Ask an Expert Find This Product Near You

Dual LCD simultaneously displays carbon monixde (CO) and ambient temperature.

REED R9400 Offers

This carbon monoxide meter is capable of detecting concentrations up to 1000ppm. The R9400 features a backlit LCD display with data hold/max functions and user adjustable alarm limit.


  • Backlit LCD displays CO levels from 0 to 1000ppm and ambient temperature
  • User adjustable alarm limit (audible beep frequency increases as CO level rises)
  • Quick response and high accuracy
  • Data hold and max functions
  • Self test sequence on start-up
  • Low battery indicator and auto shut off

REED R9400 Specifications

Carbon Monoxide
Measuring Range 1 to 1000 ppm
Accuracy ±5% or ±5 ppm
Resolution 1 ppm
Sensor Type Stabilized electrochemical sensor
Measuring Range -4 to 158°F (-20 to 70°C)
Accuracy ±1.5°F (0.8°C)
Resolution 0.1°F (0.1°C)
Sensor Type Thermistor
General Specifications
Display 4-digit, dual LCD
Backlit Display Yes
F/C Switchable Yes
Alarm Audible (buzzer)
Alarm Limit User Adjustable
Max Hold Yes
Display Hold Yes
Warm-up Time 60 seconds
Response Time 2x per sec.
Auto Shut-off Yes (after 30 mins, off)
Power Supply 4 AA batteries
Battery Life Approx. 200 hours
Low Battery Indicator Yes
Product Certifications CE
Probe Length 16" (406mm)
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 7.5 x 2.6 x 1.7" (190 x 65 x 45mm)
Weight 8.3 oz (235g)

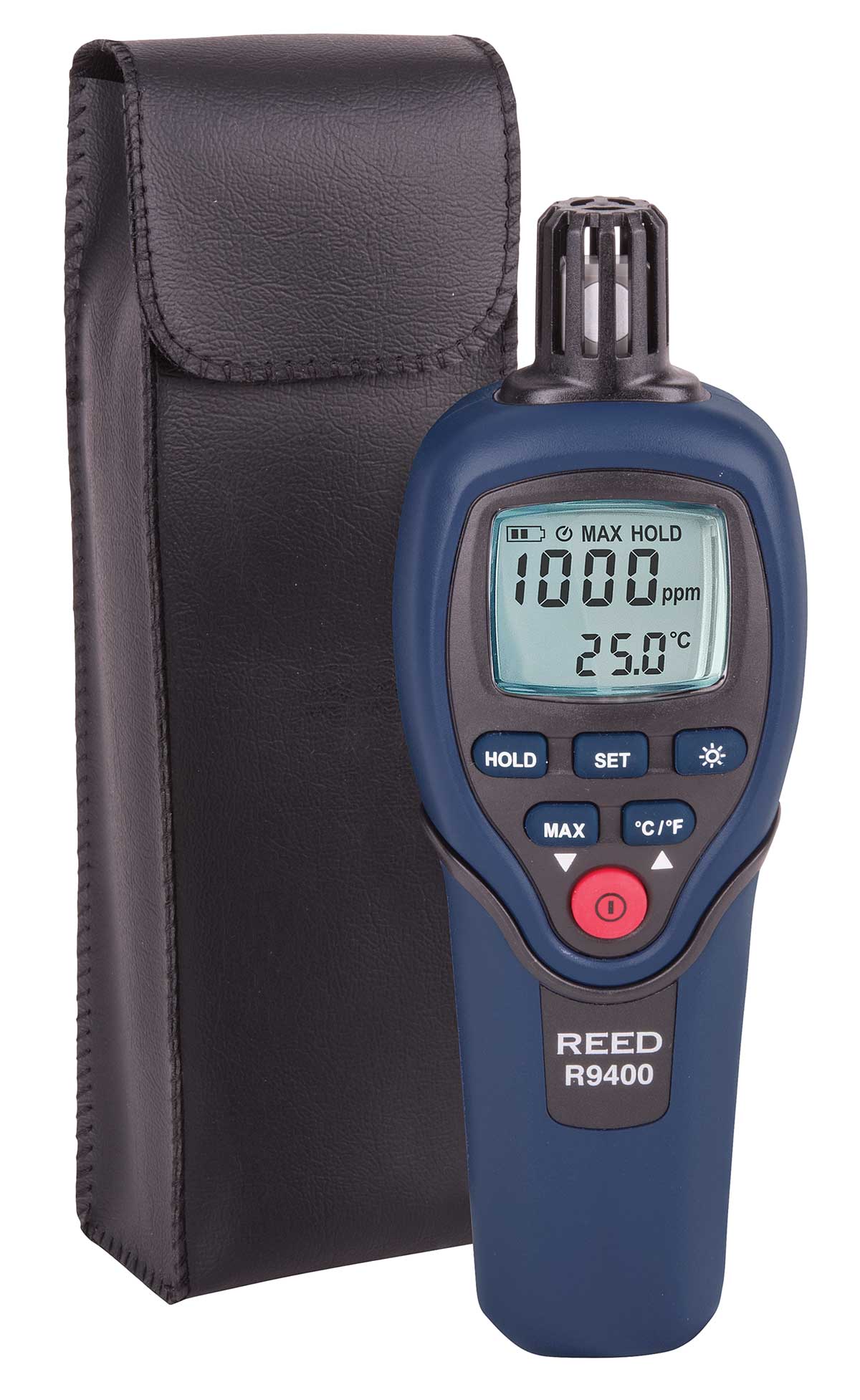

What's included with the REED R9400

  • Carbon Monoxide Meter with Temperature
  • Batteries
  • Soft Carrying Case

Ideal Applications for the REED R9400

  • Residential and commercial safety.
  • Verifying furnaces, cookers, water boilers and gas room heaters.
