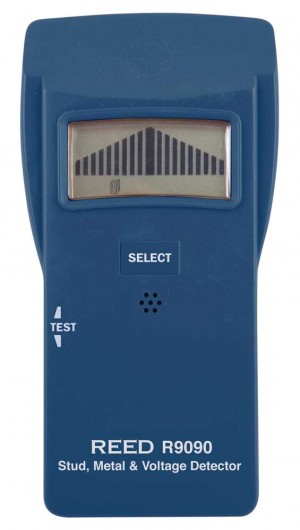

REED R9090 Stud, Metal and Voltage Detector

Model: R9090

REED R9090 Stud, Metal and Voltage Detector-

Downloads: manual datasheet
Ask an Expert Find This Product Near You

Find studs, metal and detect the presence of AC voltage with this 3-in-1 multi-scanner. Features an LCD display with bargraph allowing for quick and accurate detection.

REED R9090 Offers


  • 3-in-1 stud, metal and AC voltage detector
  • Ergonomically designed for comfort and grip
  • Bargraph allows for quick and accurate detection
  • Easy operation
  • Auto power off

REED R9090 Specifications

Detection Depth
Stud Up to 0.98” (25mm)
Metal Up to 2.56” (65mm)
Voltage Up to 1.96” (50mm)
General Specifications
Display LCD Display with bargraph
Auto Power Off Yes (after 20 seconds)
Low Battery Indicator Yes
Power Supply 9V Battery
Product Certifications CE
Operating Temperature 19.4 to 104°F (-7 to 40°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Dimensions 6.3 x 3.2 x 1.3" (159 x 82 x 32mm)
Weight 7.2 oz (203 g)

What's included with the REED R9090

  • Stud, Metal and Voltage Detector
  • Battery

R9090 3-in-1 Stud, Metal & Voltage Detector

Ideal Applications for the REED R9090

  • Hang household items (mirrors, pictures and shelves)
  • Trace hot wires behind building materials
  • Locate metallic pipes in concrete

Click on a category to view a selection of compatible accessories with the REED R9090 Stud, Metal and Voltage Detector.

REED CA-05A Medium Soft Carrying Case

Model: CA-05A

Features a main instrument compartment and a side pouch for accessories.
