REED R9030 Hardness Tester, Pen-Style

Model: R9030

REED R9030 Hardness Tester, Pen-Style-


Downloads: datasheet manual
Ask an Expert Find This Product Near You


Displays measurements in Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS) hardness values.

REED R9030 Offers

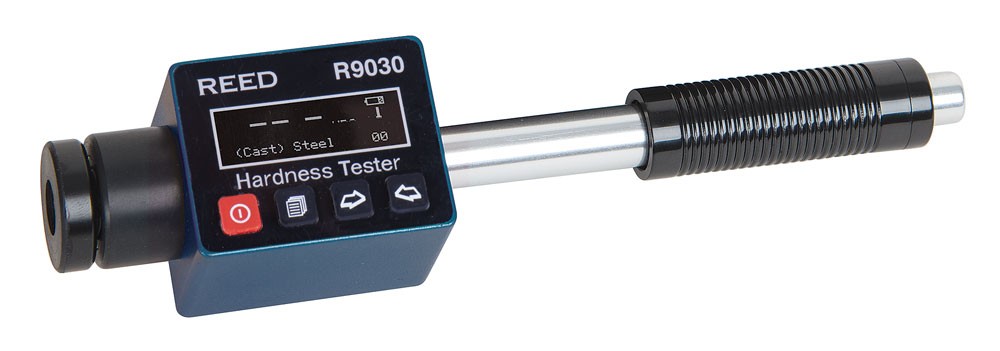

This rebound hardness tester features a universal D impact device and is capable of displaying measurements in 7 hardness scales. The R9030 features a rechargeable battery, internal memory to store up to 350 measurements and software to further analyse saved data.

Features

  • Measures a wide range of materials including; cast steel, alloy steel, stainless steel, aluminum, bronze, copper and cast irons.
  • Measures 7 types of hardness scales; Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS)
  • Compact pen style design
  • Bright OLED display
  • Real-time clock and internal memory stores up to 350 measurements

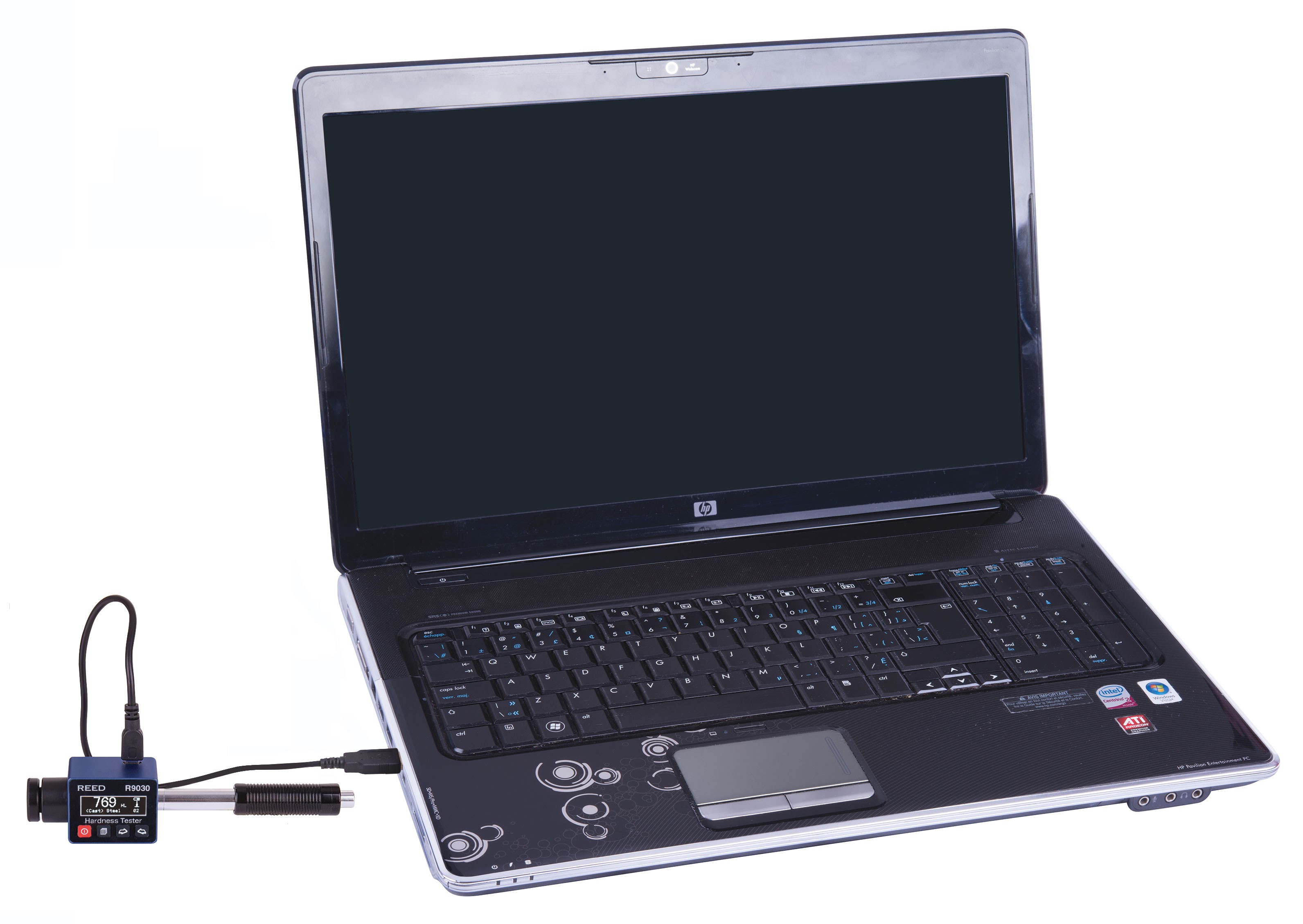

  • USB connectivity and software allows for further measurement analysis
  • Rechargeable lithium battery
  • Low battery indicator

REED R9030 Specifications

Hardness Scales Rockwell (HRA, HRB, HRC)
Brinell (HB)
Leeb (HLD)
Vickers (HV)
Shore (HS)
Measuring Ranges HRA:  59 to 85
HRB: 13 to 100
HRC: 20 to 68
HB:  19 to 651
HLD: 170 to 960
HV:  80 to 967
HS:  30 to 100
Measuring Direction 360°
Sampling Time Less than 1 sec (when triggered)
Display Dot Matrix OLED
Battery Life Approx. 40 hours
Low Battery Indicator Yes
Power Supply Rechargeable Lithium Ion Battery
Charge Time Approx. 2 hours
Internal Memory Yes (up to 350 readings)
PC Connectivity USB Cable
Software   Yes (Included)
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 0 to 90%
Dimensions 5.7 x 1.3 x 1" (146 x 32 x 26 mm)
Weight 5.6oz (160g)

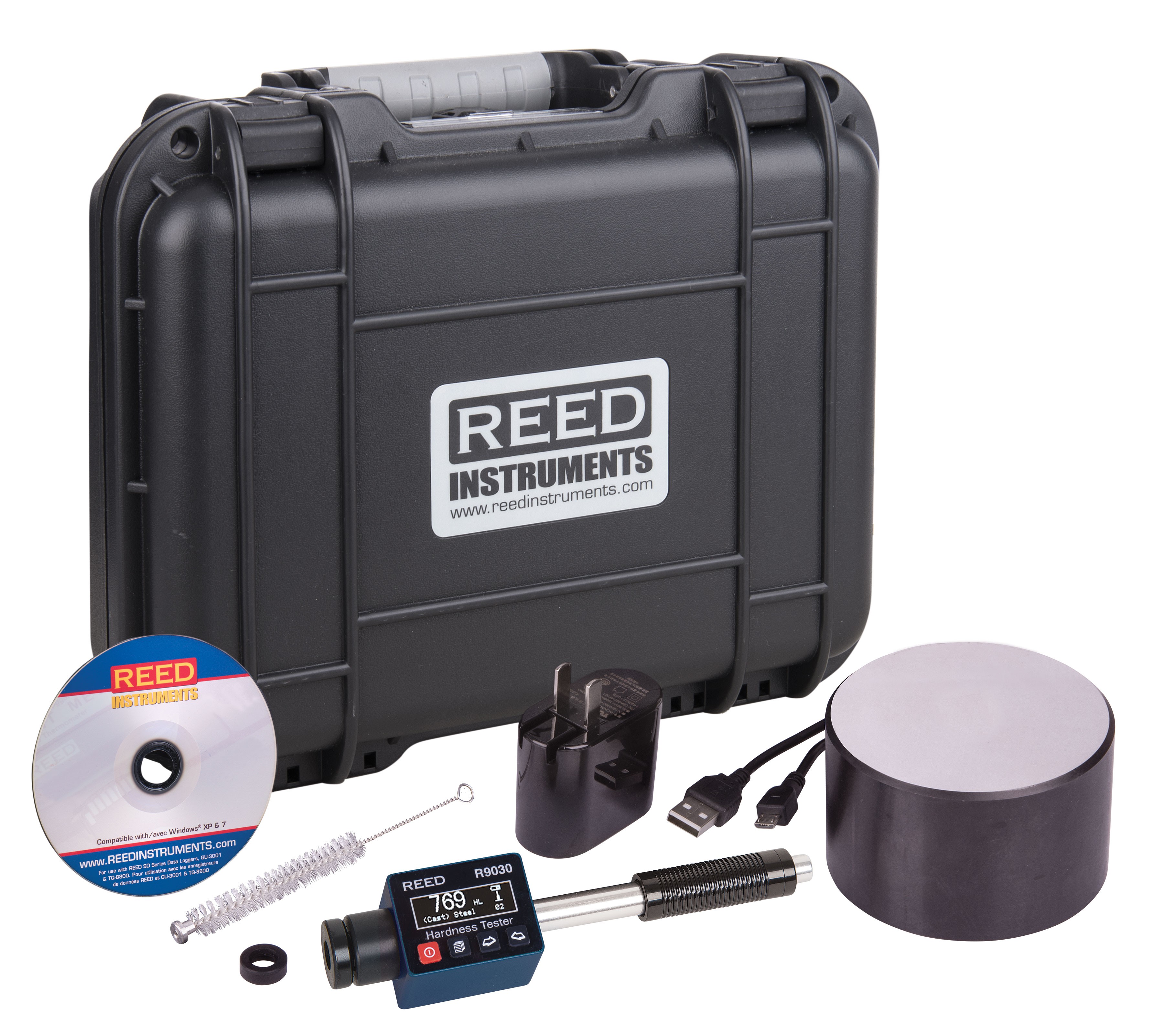

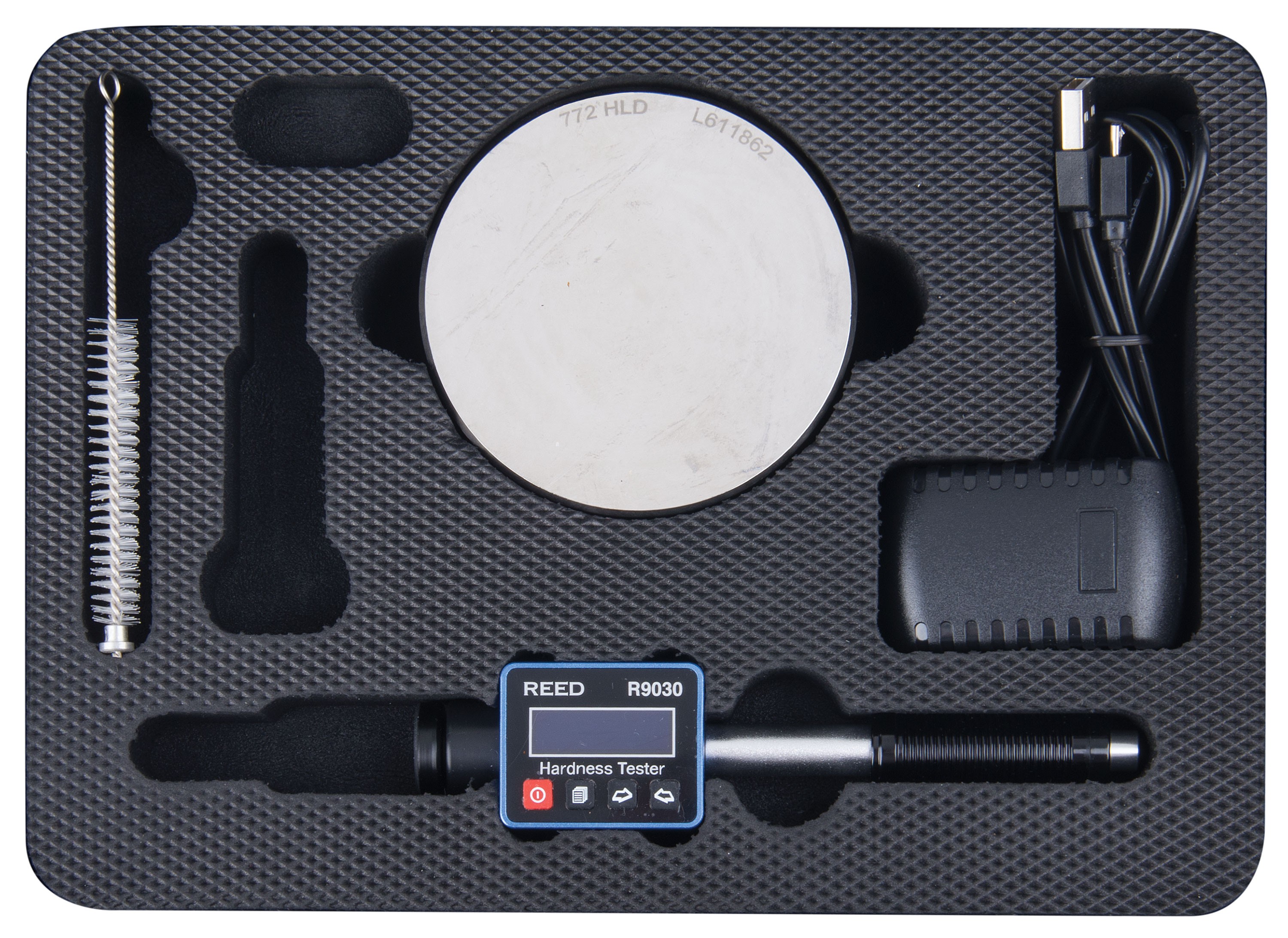

What's included with the REED R9030

  • Hardness Tester
  • D Impact Device
  • Leeb Test Block
  • Small Supporting Ring
  • Nylon Brush
  • AC Adapter
  • USB Cable
  • Software
  • Hard Carrying Case

Ideal Applications for the REED R9030

  • Ideal for hardness testing of large and heavy objects
  • In production lines of mass produced components
  • Materials identification in stores and warehouses
  • In locations with difficult access, or in confined spaces

Click on a category to view a selection of compatible accessories with the REED R9030 Hardness Tester, Pen-Style.

REED R8888 Deluxe Hard Carrying Case, 12 x 9.6 x 5.4"

Model: R8888

Professional grade, injection molded hard plastic case with customizable foam inserts.

REED R9030 Hardness Tester, Pen-Style Reviews:

Quality Manager

By: John Richardson - Monday, December 4th 2017

We have the R9030. Operating instructions show how to turn instrument on but should also describe/show how to operate the instrument.
Recommendation: Yes, I would recommend this product.


Calibration Lab
When you purchase a REED product it comes included with a one year warranty. We back our products.
