REED R9000 HD Video Inspection Camera System

Model: R9000

REED R9000 HD Video Inspection Camera System-


Downloads: datasheet manual
Ask an Expert Find This Product Near You

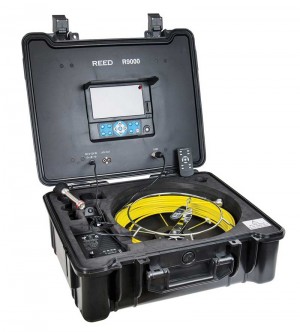

Complete HD video inspection system with 65.6ft (20m) cable, 7" TFT LCD monitor and ability to record video and audio.

REED R9000 Offers

This high resolution video inspection system features a 65.6ft (20m) meter cable built into a portable carrying case. The R9000 is capable of saving images and recording video/audio on internal memory or on an external memory card (sold seperately). This video inspection system is commonly used to determine the condition of small diameter sewer lines and household connection pipes. The R9000 includes a rechargeable lithium-ion battery and a car charger for continuous use in the field.

Features

  • Complete video inspection system built in a hard carrying case
  • Camera and video functions save high resolution images and records video/audio
  • Twelve high visibility LED lights provide illumination in dimly lit environments
  • Scratch-resistant sapphire lens and durable stainless steel camera housing
  • 65.6ft (20m) cable mounted on cable reel
  • High resolution 16:9 7" TFT LCD display
  • Video and audio output
  • Rechargeable lithium-ion battery and car charger
  • Sun visor is included to act as a sun shield for outdoor inspections
  • 90° mirror rotation and low battery indicator

REED R9000 Specifications

Camera
Camera Resolution 800 x 480
Camera Diameter 0.91" (23mm)
Camera Length 4.7" (120mm)
Lens/Housing Material Saphire / Stainless Steel
Viewing Distance 7.9 to 39.4" (20 to 100cm)
Depth of Field 100cm to infinity
Viewing Angle 0 to 140°
General Specifications
Display 7" Color TFT LCD (16x9)
Display Resolution 800 x 480
Frames per Second (FPS) 30
Standard Gooseneck/Cable Length 65.6' (20m)
Cable Diameter 0.2" (5.2mm)
Rotate Display Yes (90°)
Playback Photo, Video and Audio
Memory Internal / SD Card
TV Out PAL / NTSC
Data Output USB / SD Card
LED Brightness Adjustment Yes (12 white LEDs)
Low Battery Indicator Yes
Power Supply Rechargeable Li-ion Battery, AC Adapter, Car Charger
On-Screen Supported Languages English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
Product Certifications CE, IP67 (Camera Head)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature 4 to 140°F (-20 to 60°C)
Operating Humidity Range 30 to 90%
Dimensions 22.7 x 10.4 x 20.4" (575 x 265 x 520 mm)
Weight 22lbs (10kg)

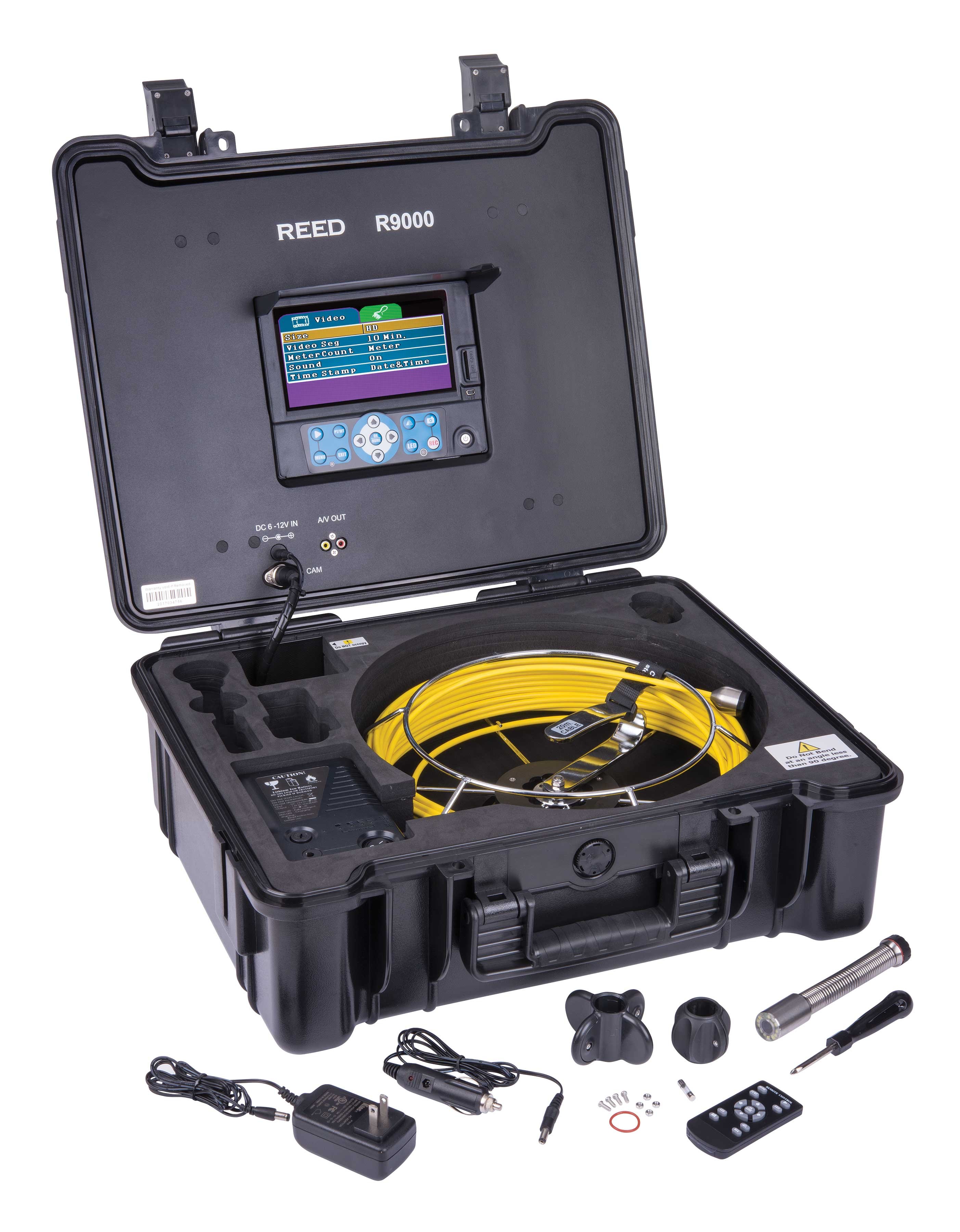

What's included with the REED R9000

  • HD Video Inspection System
  • Camera Head

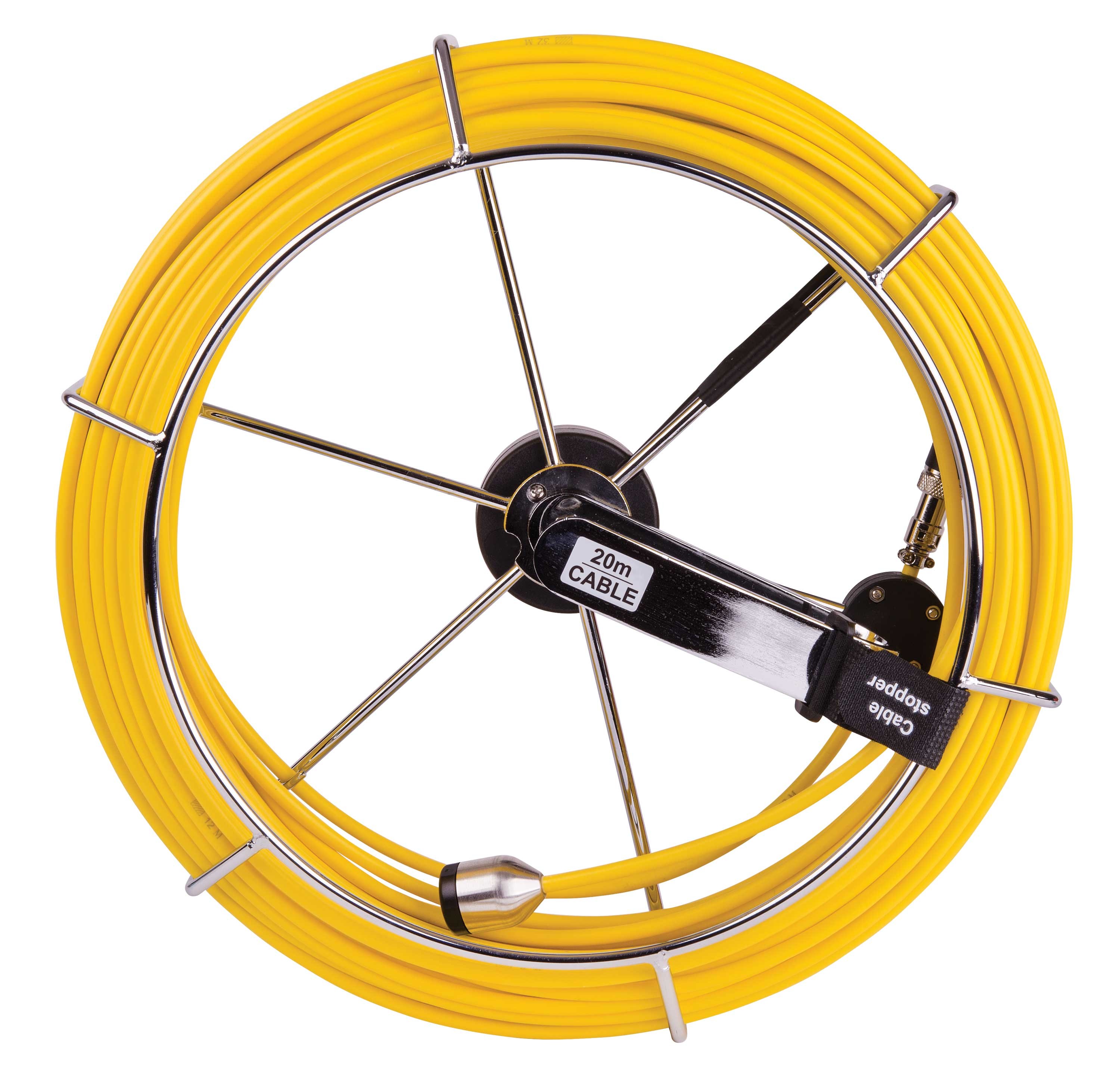

  • 20m Cable Reel and Push Cable
  • Remote Control
  • Hard Carrying Case with built-in DVR

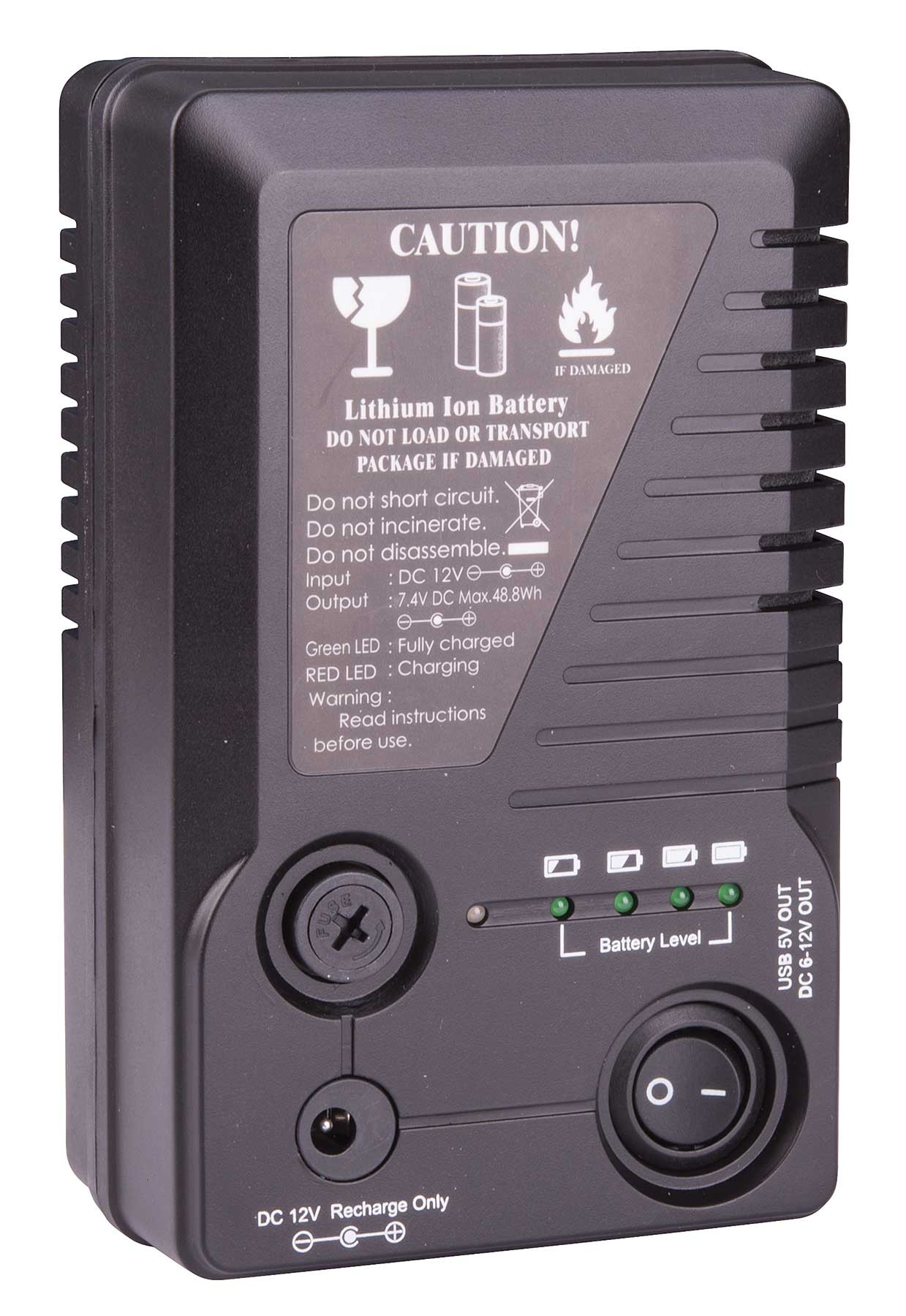

  • Battery Pack and Cable
  • Car Charger
  • Fuse (x2)
  • Ball Guide (x2)
  • Plastic Skid
  • Screw (x2)
  • Nut (x2)
  • Waterproof Ring and Adapters
  • Screwdriver

Ideal Applications for the REED R9000

  • Sewer and pipe inspection
  • Building ducts/HVAC inspections
  • Well inspections
  • Building and home inspection

Click on a category to view a selection of compatible accessories with the REED R9000 HD Video Inspection Camera System.

REED R9000-RCH Replacement Camera Head for R9000 HD Video Inspection Camera System

Model: R9000-RCH

Replacement camera head for R9000 Video Inspection Camera System.

REED R9000-40M Cable for R9000 HD Video Inspection Camera System, 131.2' (40m)

Model: R9000-40M

Extended length cable for R9000. Cable is pre-mounted on reel for easy installation.

REED R9000-CAMT Camera head with 512hz Transmitter for R9000 HD Video Inspection Camera System

Model: R9000-CAMT

Optional camera head with built-in 512hz transmitter. The R9000-CAMT can be used with the R9000-RCV accessory to quickly pinpoint camera location below the ground.

REED R9000-RCV Receiver for R9000 HD Video Inspection Camera System, 512hz

Model: R9000-RCV

This portable receiver can be used with the R9000 HD Video Inspection Camera system and 512Hz Camera Head (R9000-CAMT) to pinpoint underground camera location and quickly identify issues. R9000 and R9000-CAMT sold separately.
