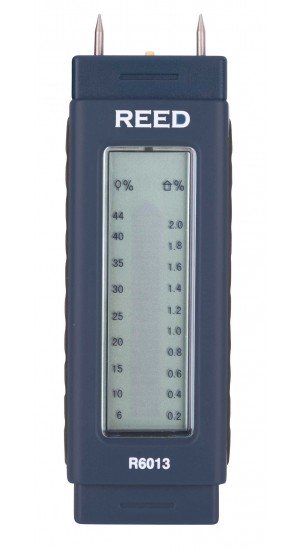

REED R6013 Pocket Size Moisture Detector

Model: R6013

REED R6013 Pocket Size Moisture Detector

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Large LCD displays moisture in wood and other building materials.

REED R6013 Offers

This compact moisture detector uses electrical resistance to measure the moisture content of sawn timber, cardboard paper, hardened materials like plaster, concrete and mortar.

Features

  • Measures wood and building material moisture
  • Detects moisture in sawn timber, sheet rock, cardboard, plaster, concrete and mortar
  • Compact size with belt clip
  • Durable impact-proof plastic housing
  • Built-in measurement verification and battery check
  • Replaceable pins
  • Low battery indicator and auto shut-off

REED R6013 Specifications

Measuring Ranges Wood: 6 - 44% Moisture Content
Materials: 0.2 - 2.0% Moisture Content
Accuracy Wood: ±1%
Materials: ±0.05%
Resolution Wood: 1%
Materials: 0.1%
Sensor Type Contact Pins
Display LCD (Bargraph)
Replaceable Pins Yes
Auto Shut-off Yes (after 15 mins)
Low Battery Indicator Yes
Power Supply 3 CR2032 batteries
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 0-85%
Dimensions 5.1 x 1.6 x 1” (130 x 40 x 25mm)
Weight 3.5 oz (100g)

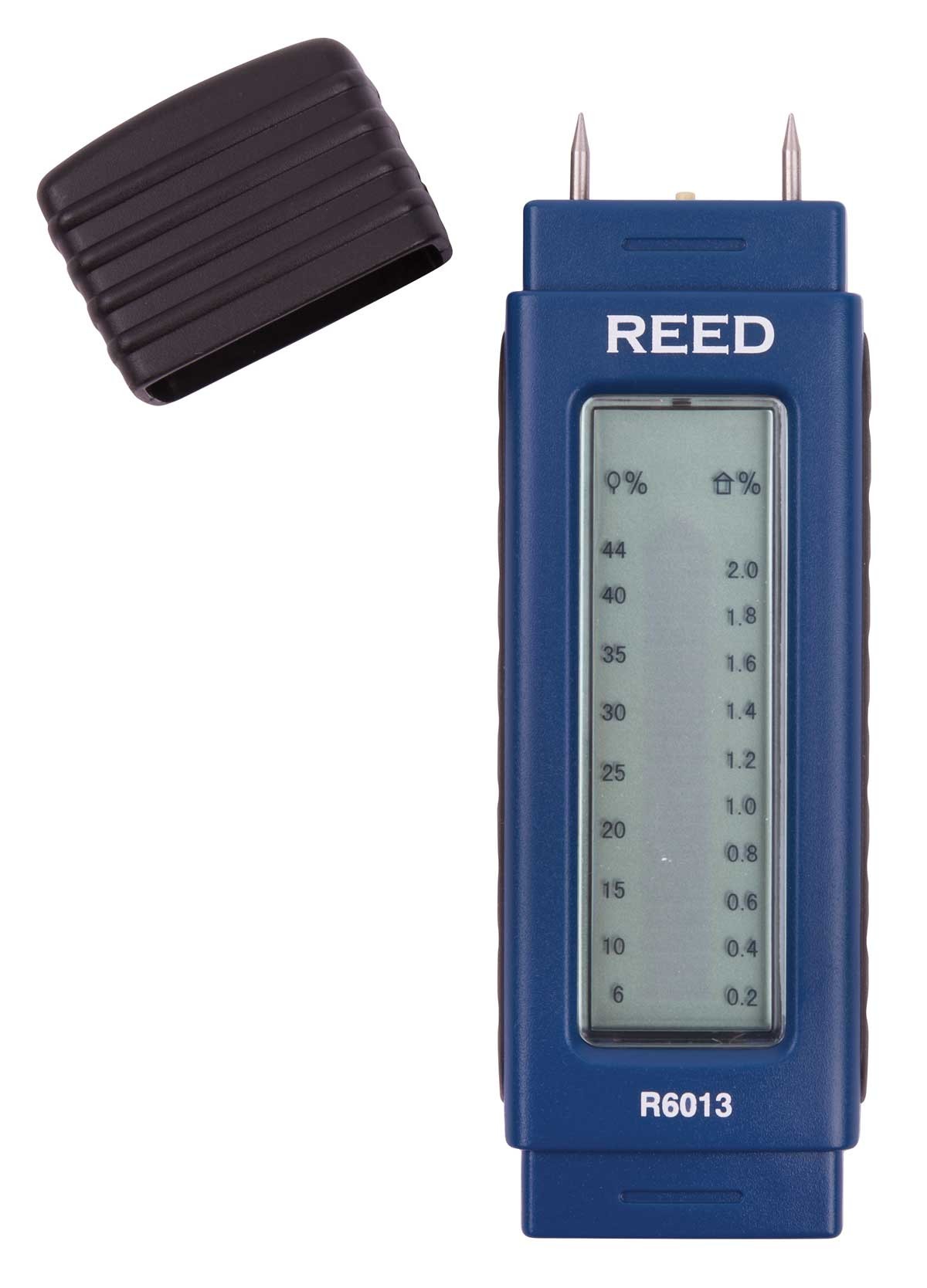

What's included with the REED R6013

  • Moisture Detector
  • Protective Cap
  • Batteries

Ideal Applications for the REED R6013

  • Construction and Building Projects
  • Remediation and Restoration
  • Woodworking

Click on a category to view a selection of compatible accessories with the REED R6013 Pocket Size Moisture Detector.

REED CA-52A Soft Carrying Case, 8 x 2.8 x 1.7"

Model: CA-52A

Features a main instrument compartment and a side pouch for accessories.

REED R6013-P Electrode Pin for the REED R6013

Model: R6013-P

This Electrode Pin fits the REED R6013 Moisture Meter.
