REED R5500-KIT Electrical Troubleshooting Kit

Model: R5500-KIT

REED R5500-KIT Electrical Troubleshooting Kit-

Downloads:
datasheet
Ask an Expert Find This Product Near You

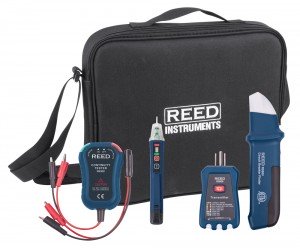

This Electrical Troubleshooting Kit includes a Circuit Breaker Finder/Receptacle Tester, Continuity Tester and AC Voltage Detector with built-in flashlight. All instruments and accessories in the R5500-KIT are conveniently stored and protected in a soft carrying case.

REED R5500-KIT Offers

This circuit breaker finder quickly and easily identifies the correct circuit breaker protecting a specific electrical circuit. The R5500 also features a receptacle tester to identify faulty wiring and a GFCI check button.

Features

  • Simply plug the transmitter into a receptacle and scan breaker box to identify the circuit
  • Detects 5 3-wire receptacle wiring faults
  • Built-in GFCI receptacle check function
  • Adjustable sensitivity wheel quickly identifies breaker
  • Audible (buzzer) and visual (LED) indicators assist in identification

REED R5500-KIT Specifications

Voltage Range 90 to 120V AC
Bandwidth 47 to 63Hz
Power Supply 9V Battery
Product Certifications ETL
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 0 to 85%
Storage Temperature 4 to 140°F (-20 to 60°C)
Dimensions 4.1 x 2.2 x 1.2" (103 x 56 x 30mm)
Weight 3.9oz (110g)

REED R5500 Circuit Breaker Finder

REED R5500 Circuit Breaker Finder

3-in-1 tester locates breakers, tests receptacles and GFCI circuits.


REED R5300 Continuity Tester

REED R5300 Continuity Tester

Lightweight and compact size allows for easy one person operation.


REED R5100 Non-Contact AC Voltage Detector with Flashlight

REED R5100 Non-Contact AC Voltage Detector with Flashlight

Durable double molded plastic housing.


REED R9950 Soft Carrying Case

REED R9950 Soft Carrying Case

Accommodates up to 3 medium to large sized instruments and accessories.
