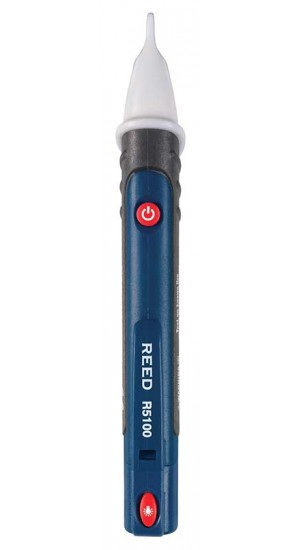

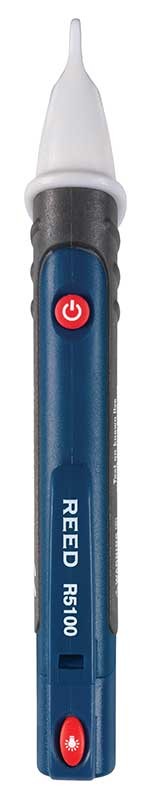

REED R5100 Non-Contact AC Voltage Detector with Flashlight

Model: R5100

REED R5100 Non-Contact AC Voltage Detector with Flashlight-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Durable double molded plastic housing.

REED R5100 Offers

This instrument is capable of detecting the presence of AC voltage from a safe distance. The R5100 features audible/visual indicators, a built-in flashlight and convenient pocket clip.

Features

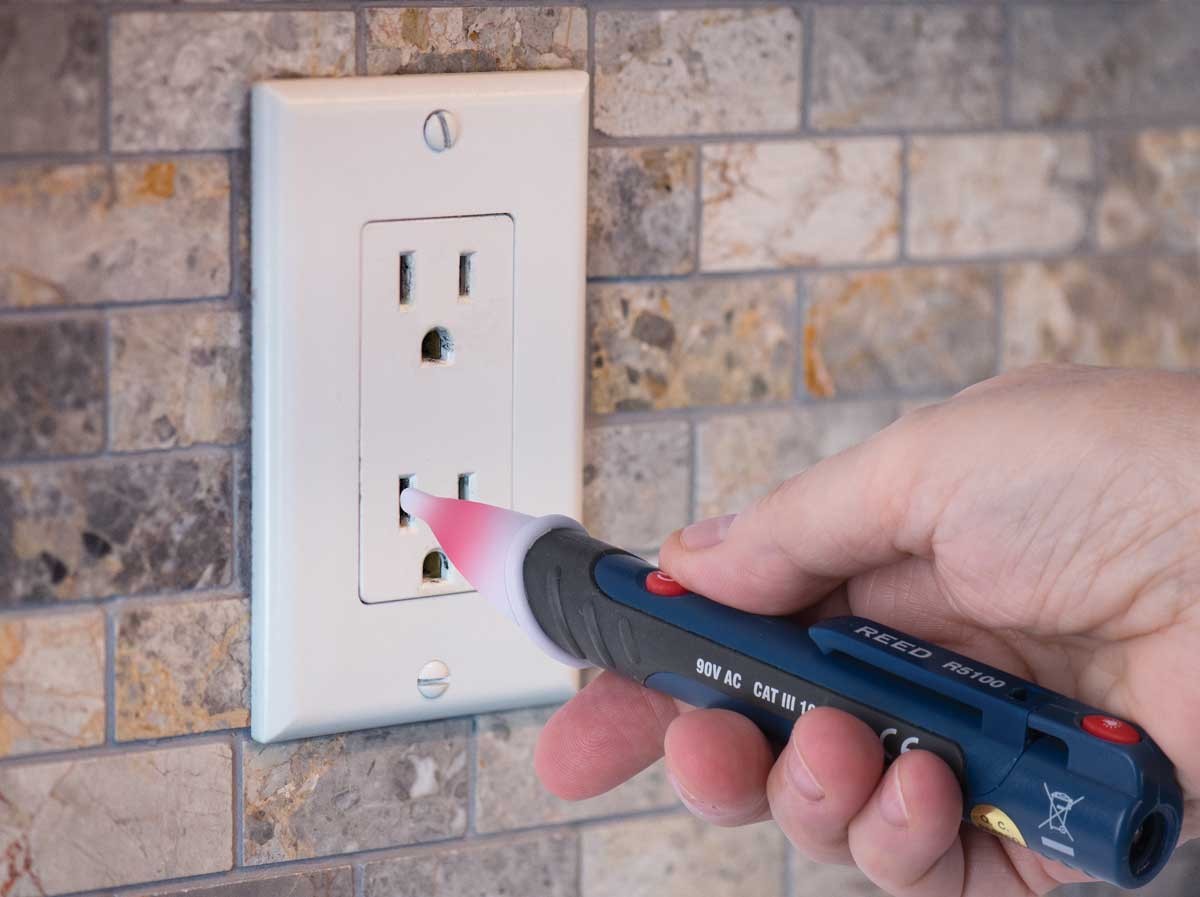

  • Suitable for outlets or against insulated wire

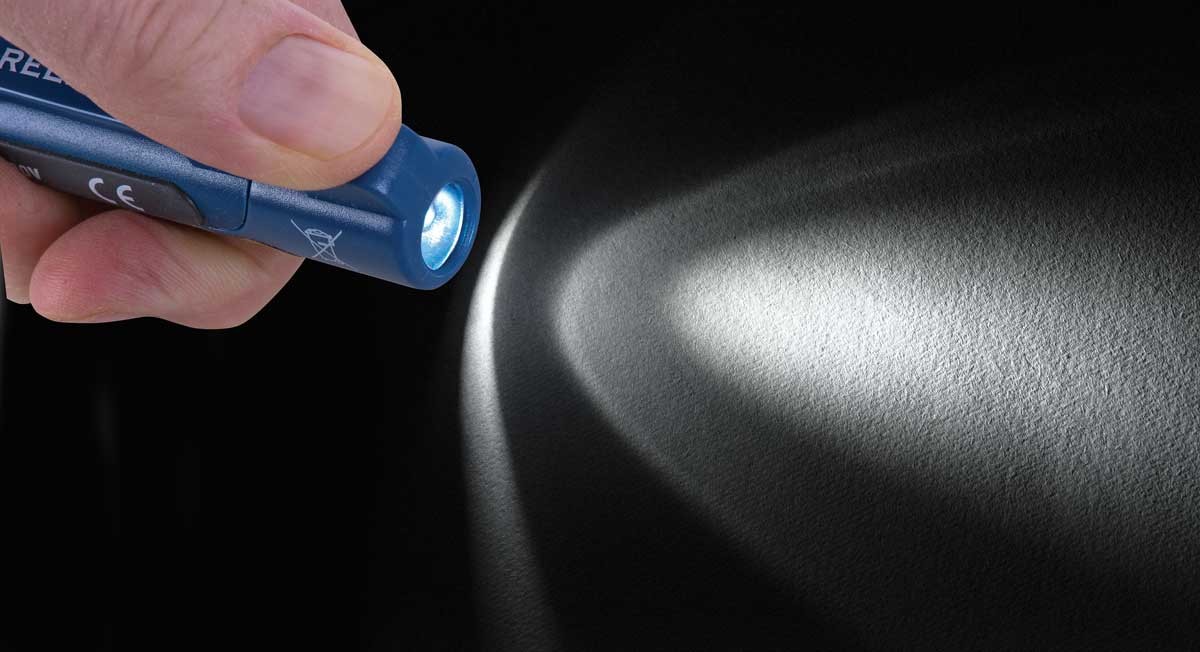

  • Built-in flashlight
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators when voltage present
  • For use on 50/60Hz circuits
  • Pocket clip
  • Auto shut off
  • CE and UL approved
  • Cat. III 1000V, Cat. IV 600V safety ratings

REED R5100 Specifications

Voltage Range 50 to 1000V AC
Frequency Range 50 to 60Hz
Built-in Flashlight Yes
Auto Power Off Yes (after 3 minutes)
Power Supply 2 AAA Batteries
Overvoltage Category CAT. III 1000V, CAT. IV 600V
Product Certifications CE, UL
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 6.3 x 1  x 1" (159 x 25 x 25mm)
Weight 1.5oz (42g)

What's included with the REED R5100

  • Non-Contact AC Voltage Detector
  • Batteries

R5100 Non-Contact AC Voltage Detector


The R5100 detects the presence of AC voltage from a safe distance and is suitable for receptacles or against insulated wire. When voltage is present, the audible (buzzer) and visual (LED) indicators will notify the user. This voltage detector also features a built-in flashlight.
