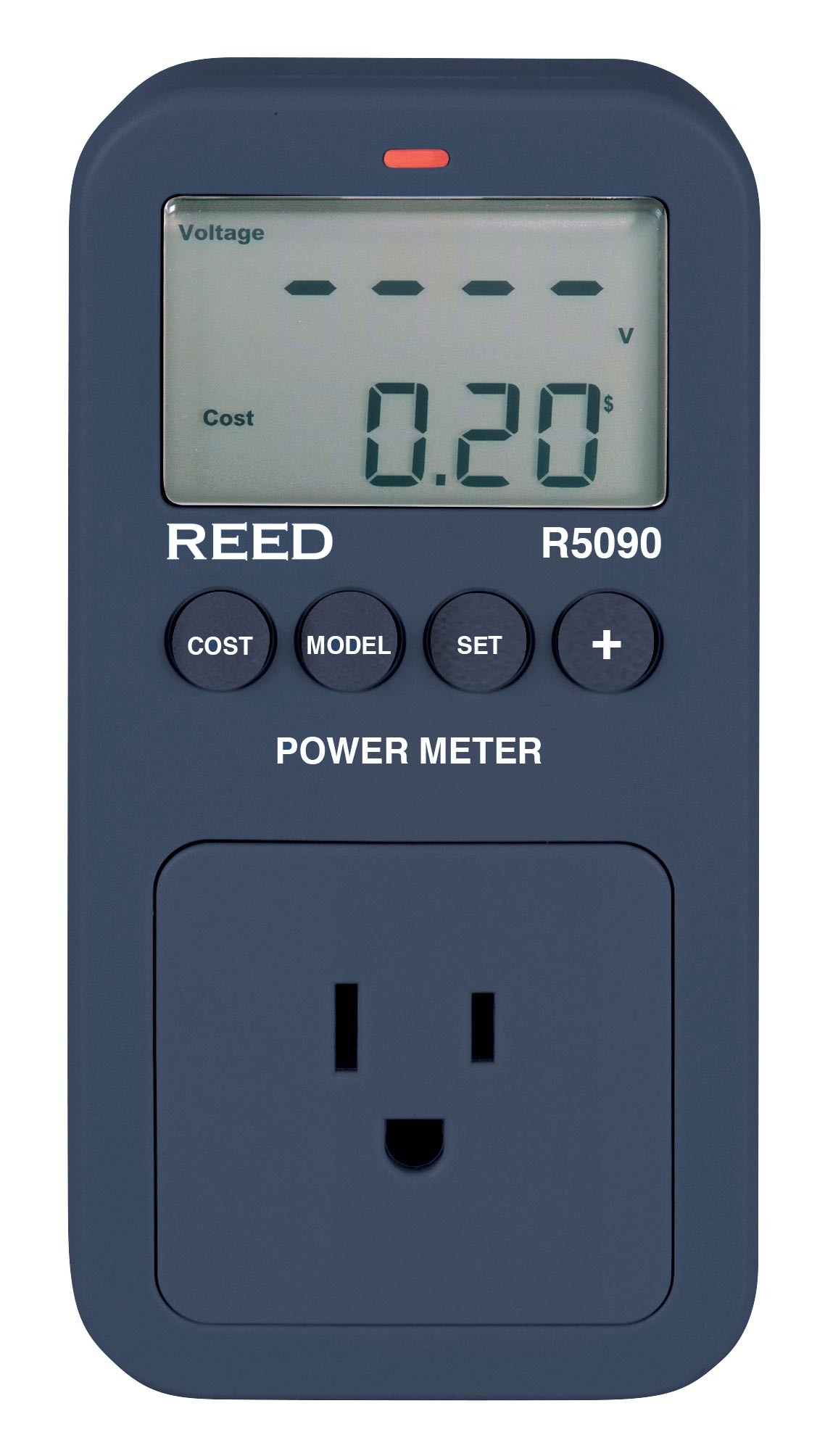

REED R5090 Power Meter

Model: R5090

REED R5090 Power Meter-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Accurately measures the power consumption and calculates the operating costs of household appliances.

REED R5090 Offers

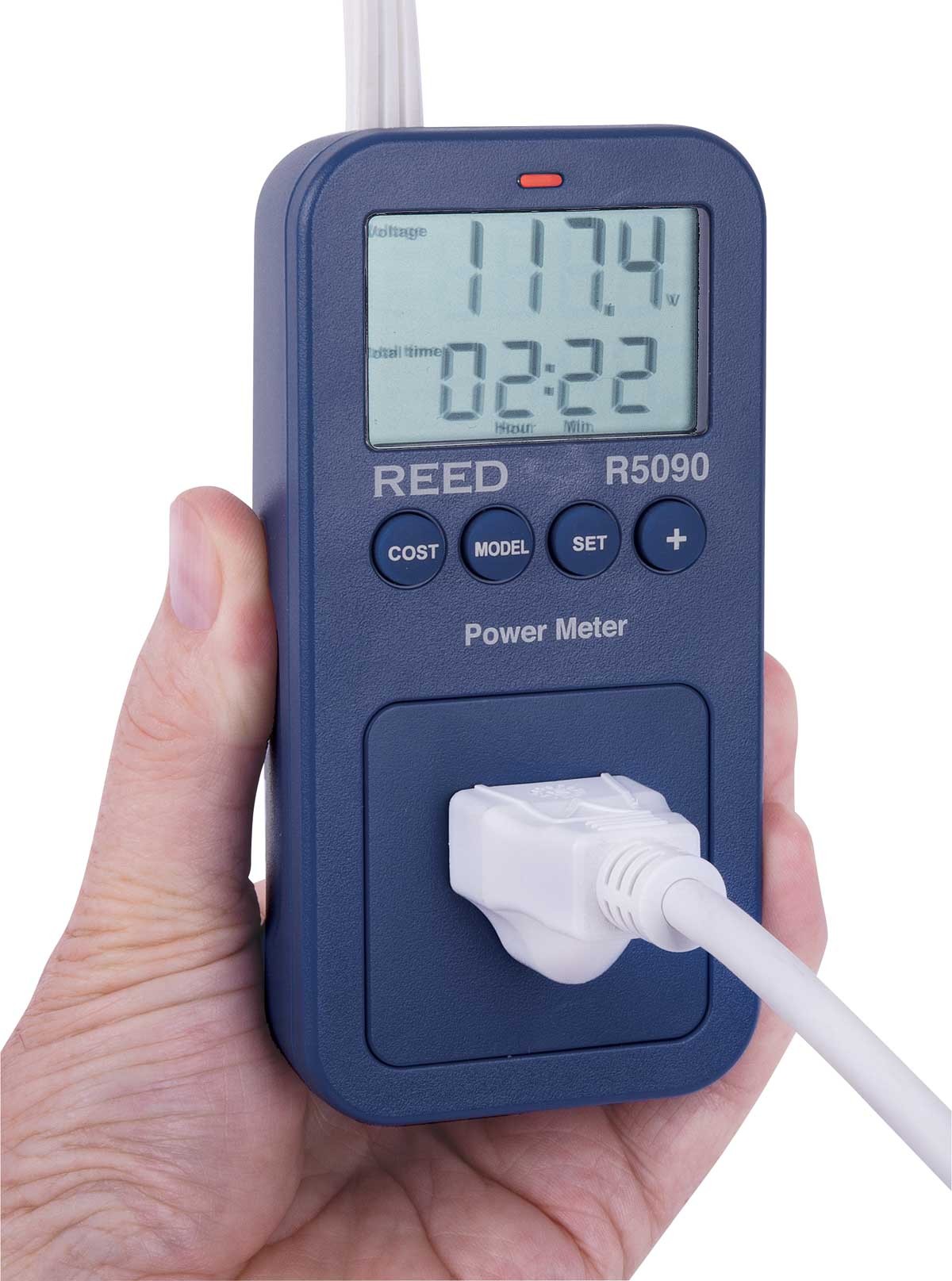

The R5090 is an easy-to-use power meter that accurately measures power consumption of household appliances. Simply set the local utility rate in Killowatt-hours (KWH) and connect an appliance to start tracking cost. The R5090 can also be used to verify power quality by monitoring voltage, frequency and power factor.

Features

  • Calculates operating costs of household appliances
  • Displays 8 important units of measure (Voltage, Current, Watts, Frequency, Power Factor, Energy used (kWh), Total Cost and Elapsed Time)
  • Easy-to-read, dual LCD display
  • Built-in battery backup
  • Conforms to UL and CSA standards

REED R5090 Specifications

Measuring Ranges Voltage: 100 to 150VAC 60Hz
Current: 0 to 15A
Power: 0 to 1800W
Power Factor: 0 to 1.00
Frequency: 45 to 65Hz
Accuracy Voltage: ±(1% rdg. + 1dgt.)
Current: ±(1% rdg. + 10dgt.) @ 0.010 to 0.999A; ±(1% rdg.+ 5dgt.) @ 1.00 to 15.00A
Power: ±(1% rdg. + 10dgt.) @ 1.0 to 100.0W; ±(1% rdg. + 5dgt.) @ 100.0 to 999.9W; ±(1% rdg. + 1dgt.) @ 1000 ~ 1800W
Power Factor: ±(2% rdg. + 10dgt.) @ 0.30 to 0.49; ±(2% rdg. + 5dgt.) @ 0.50 to 1
Frequency: ±(1% rdg. + 1dgt.)
Logging Ranges Energy: 0 to 9999kWh
Cost: $0 to $9999
Total Time: 0min to 9999 days
Display Dual LCD
Display Update 1 time/sec.
Overrange Indicator Yes
Power Supply 1 3V Battery (CR2032, back up battery)
Overvoltage Category CAT. II 150V
Product Certifications CE, ETL, Conforms to UL STD.61010-1, 61010-2-030; Certified to CSA STD.C22.2 NO.61010-1, 61010-2-030
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 90%
Dimensions 5.1 x 2.6 x 1.5" (130 x 65 x 37mm)
Weight 1.9 oz (155g)

What's included with the REED R5090

  • Power Meter
  • Battery

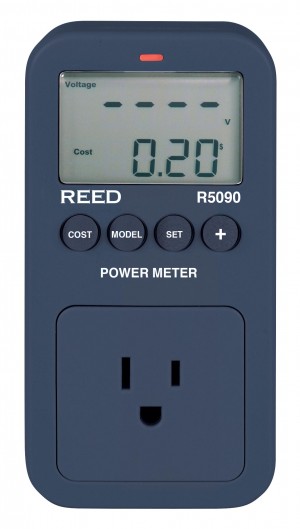

R5090 Power Meter

Ideal applications for the REED R5090

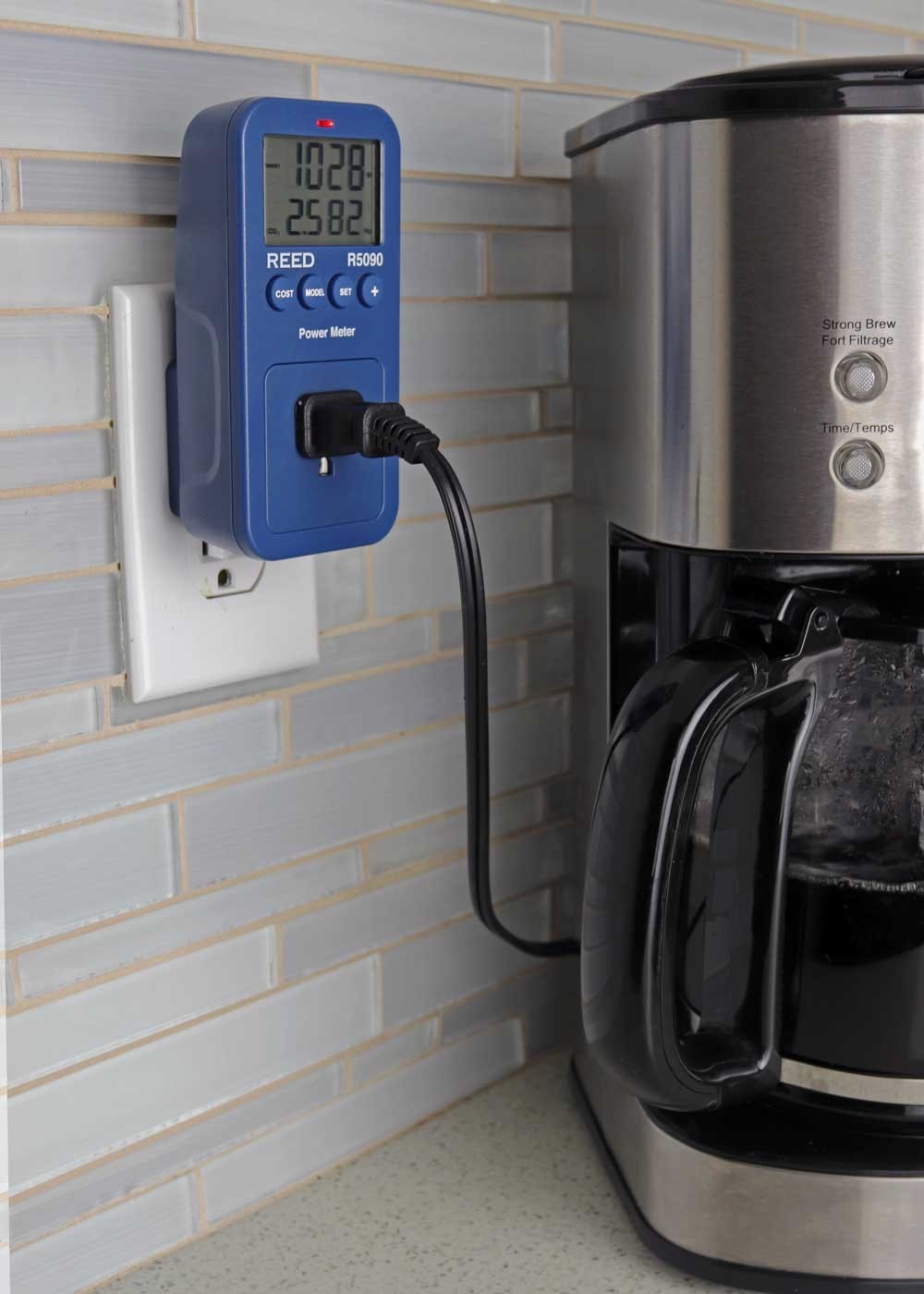

  • Calculating energy costs of household appliances
