REED R5004-KIT Phase Rotation/Clamp Meter Kit
REED R5004-KIT Offers
This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5004 features a rugged double molded plastic housing and has the ability to identify which of the 3-phases is live.
- Tests phase orientation of 3-phase power sources
- Indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
- LEDs display motor rotation and phase status
- Easy to open alligator clips with wide jaws
- Durable double molded plastic housing
- Cat. III 600V safety rating
REED R5004-KIT Specifications
|Voltage Range||40 to 600V|
|Frequency||2 to 400Hz|
|Power Supply||9V Battery|
|Battery Life||Approx. 1 year (regular usage)|
|Overvoltage Category||CAT. III 600V, CAT. IV 300V|
|Operating Temperature||0 to 122°F (0 to 50°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Operating Humidity Range||10 to 80%|
|Dimensions||5.1 x 2.7 x 1.3" (130 x 68 x 32 mm)|

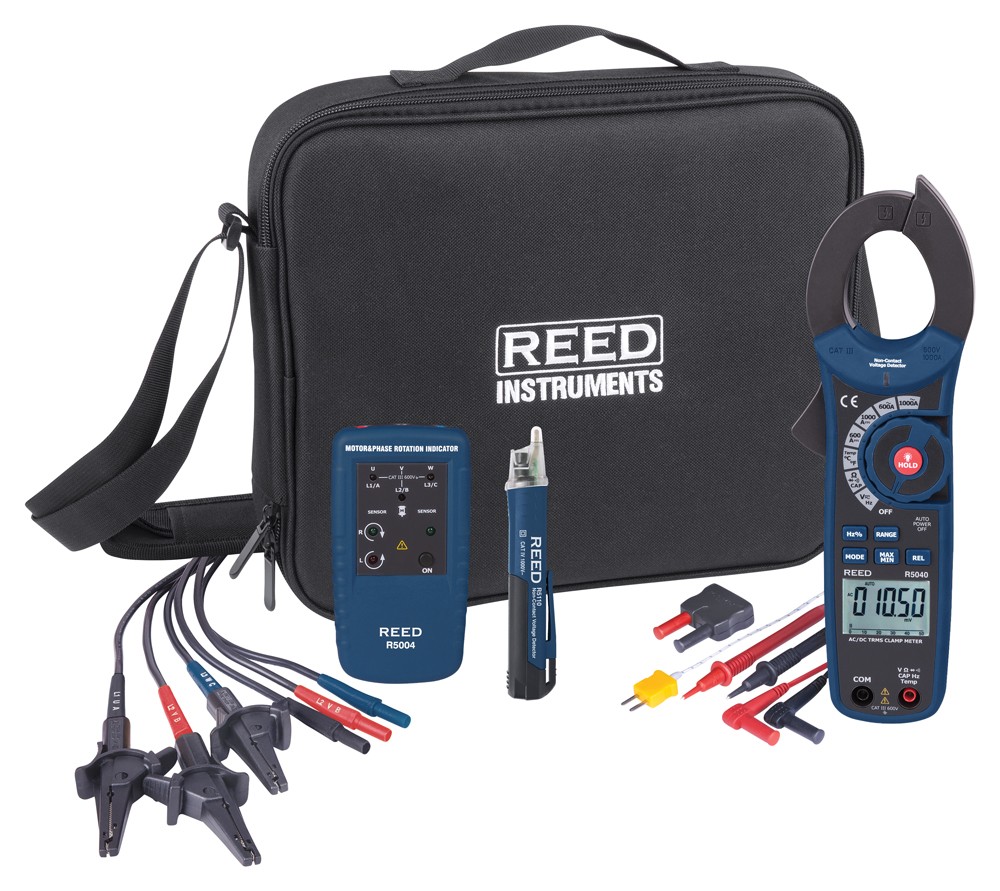

This REED R5004-KIT Phase Rotation/Clamp Meter Kit Includes
REED R5004 Motor Rotation and 3-Phase Tester
LEDs display motor rotation and phase status.
REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS
Durable AC/DC clamp meter with analog bargraph, min/max function, built-in non-contact voltage detector and contact thermometer.
REED R5100 Non-Contact AC Voltage Detector with Flashlight
Durable double molded plastic housing.
REED AD-1 Thermocouple Adapter
This adapter converts any Type-K thermocouple temperature probe with a mini-connector to dual shrouded banana plug inputs.
REED TP-01 Beaded Thermocouple Wire Probe
This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.
REED TL-88-1 Safety Test Lead Set, Double Insulated
Right angle and straight end flexible leads with shrouded banana plugs.
REED R9950 Soft Carrying Case
Accommodates up to 3 medium to large sized instruments and accessories.
