REED R3002 Digital Manometer, Gauge / Differential, 5psi

Model: R3002

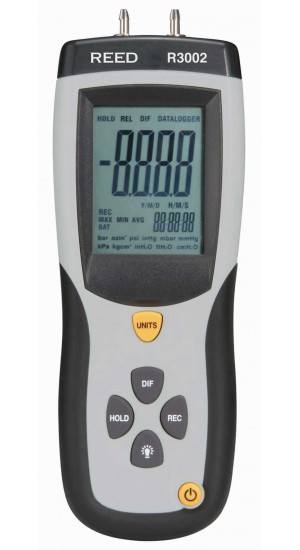

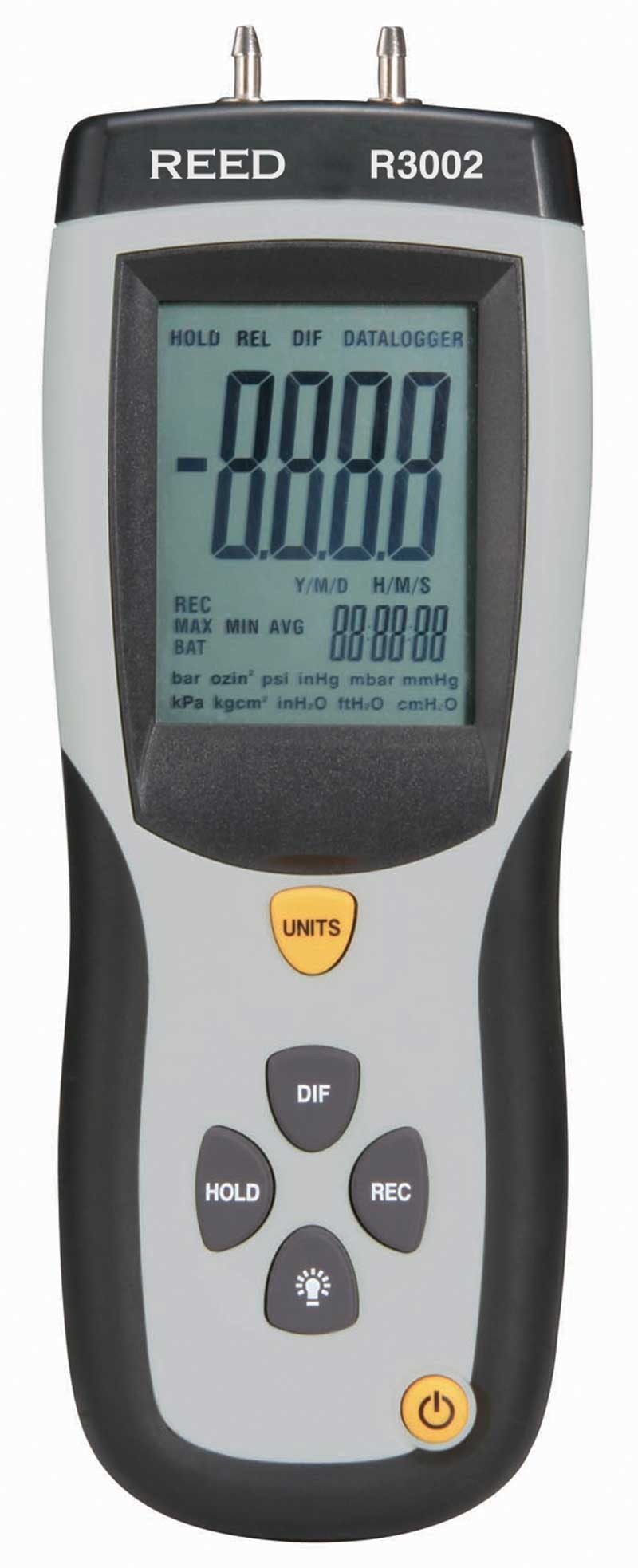

REED R3002 Digital Manometer-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Records maximum, minimum, average and relative measurements.

REED R3002 Offers

This digital manometer provides accurate measurements in 11 different units of measure and is capable of taking gauge and differential pressure. The R3002 features a large backlit LCD display, an integrated clock to keep track of measurements and the ability to record and revisit recorded data via the included software.

Features

  • Measures gauge and differential pressure up to 5psi
  • 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin², ftH2O, cmH2O, kgcm²
  • Max, Min, Avg, Relative and Data hold functions
  • Integrated real-time clock time-stamps measurements
  • Large, easy-to-read backlit LCD display
  • Zero button for offset correction or measurement

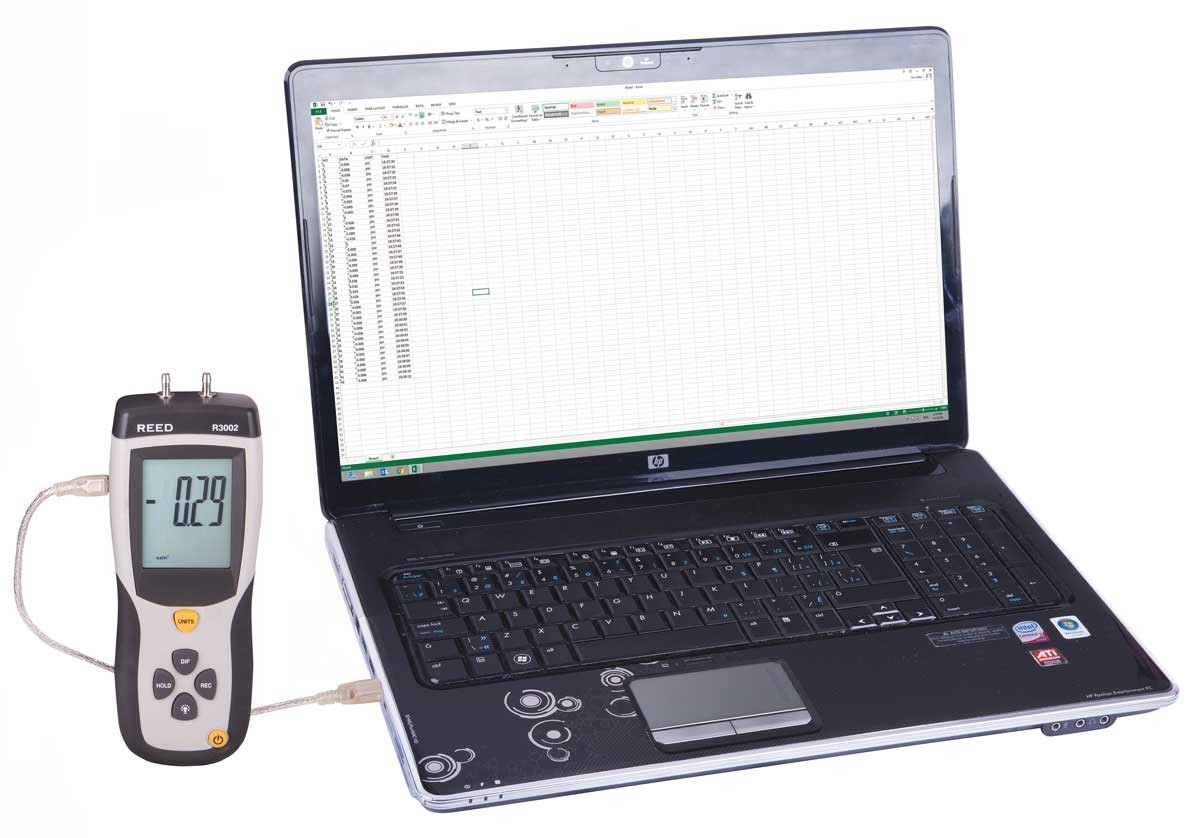

  • USB interface and software included
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED R3002 Specifications

Pressure
Measuring Ranges 5.000 psi
138.3 inH2O
344.7 mbar
34.47 kPa
1.018 inHg
258.5 mmHg
80.00 ozin²
11.53 ftH2O
351.5 cmH2O
0.351 kgcm²
0.344 bar
Accuracy ±0.3% FS
Resolution 0.1 inH2O /mbar / mmHg / cmH2O
0.01 kPa / ozin² / ftH2O
0.001 inHg / kgcm² / bar / psi
Repeatability ±0.2% FS
Linearity/Hysteresis ±0.29% FS
Max Pressure 20 psi
General Specifications
Display 4-digit, LCD Display
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Average Yes
Differential Pressure Yes
Zero Function Yes
Over range Indicator Yes
Under range Indicator Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Response Time 2 times/sec.
Internal Memory Yes
Auto Shut-off Yes (after 20 mins)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 9V battery
PC Connectivity USB Cable (Included)
Software   Yes (included)
Software OS Compatibility Windows XP, 7, 8 and 10
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 8.2 x 2.9 x 1.9" (210 x 75 x 50mm)
Weight 9.8 oz (280g)

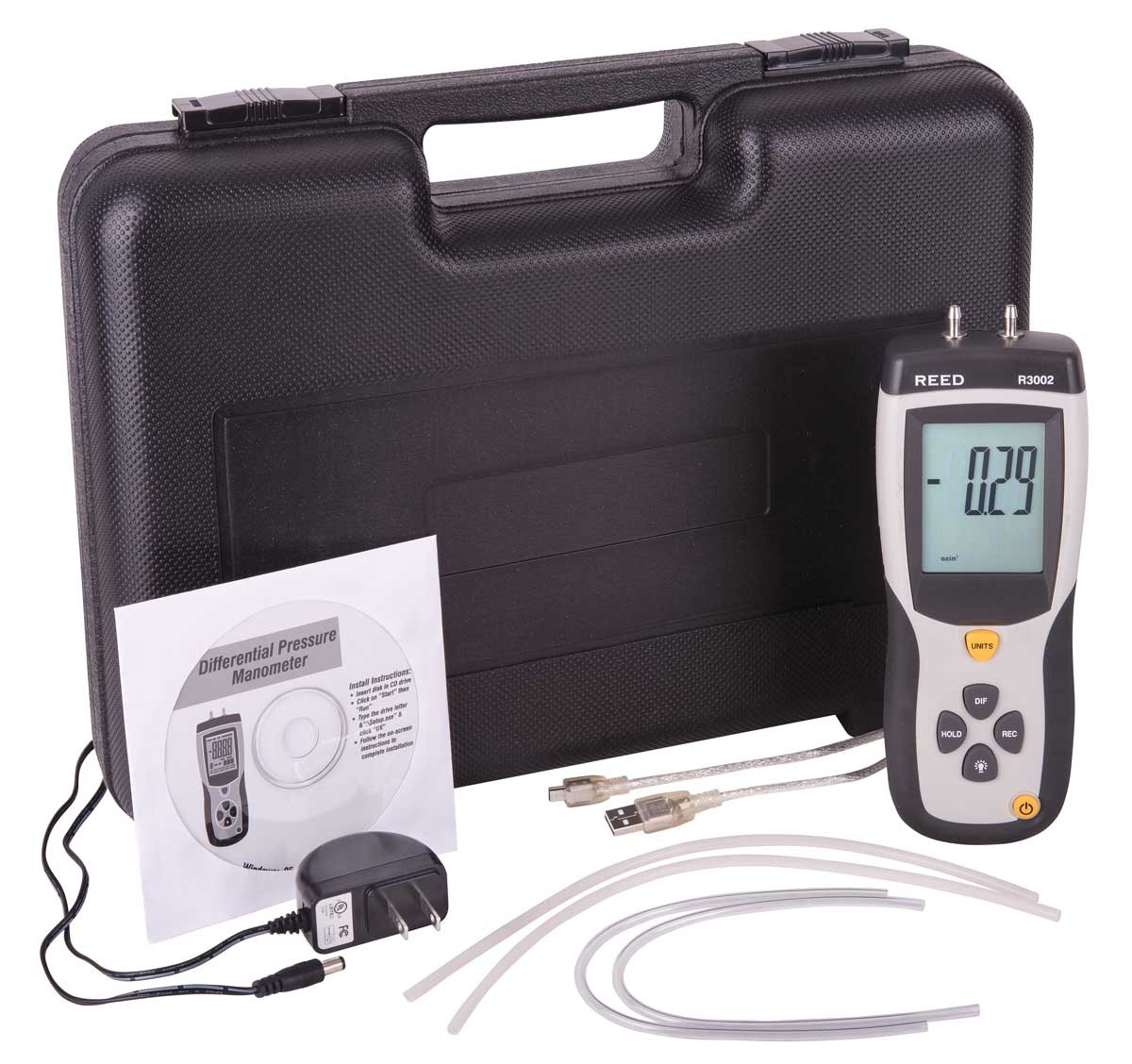

What's included with the REED R3002

  • Digital Manometer
  • 4 Connection Hoses
  • Power Adapter
  • USB Cable
  • Software
  • Battery
  • Hard Carrying Case

Ideal Applications for the REED R3002

  • Troubleshoot heating ventilation and air conditioning (HVAC) systems and a variety of low-pressure pneumatic or gas systems
  • Pressure transmitter calibration for process instrumentation
  • Detect blockages in filters, condensers and chillers (water filter steam power plant)
  • Testing of pressure switches and other relief devices
  • Calibrating pressure transmitters
  • Calibrating pressure recorders
