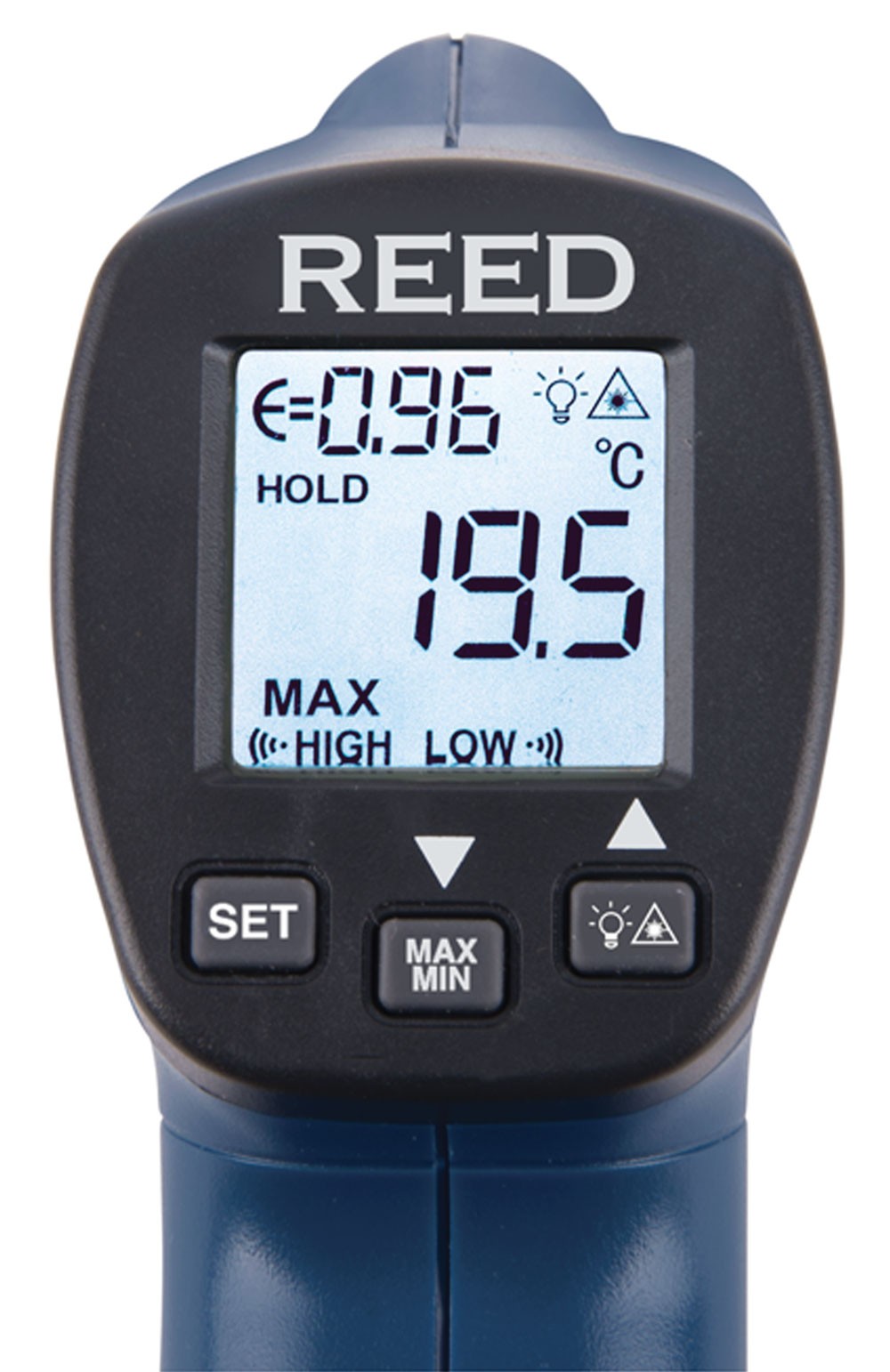

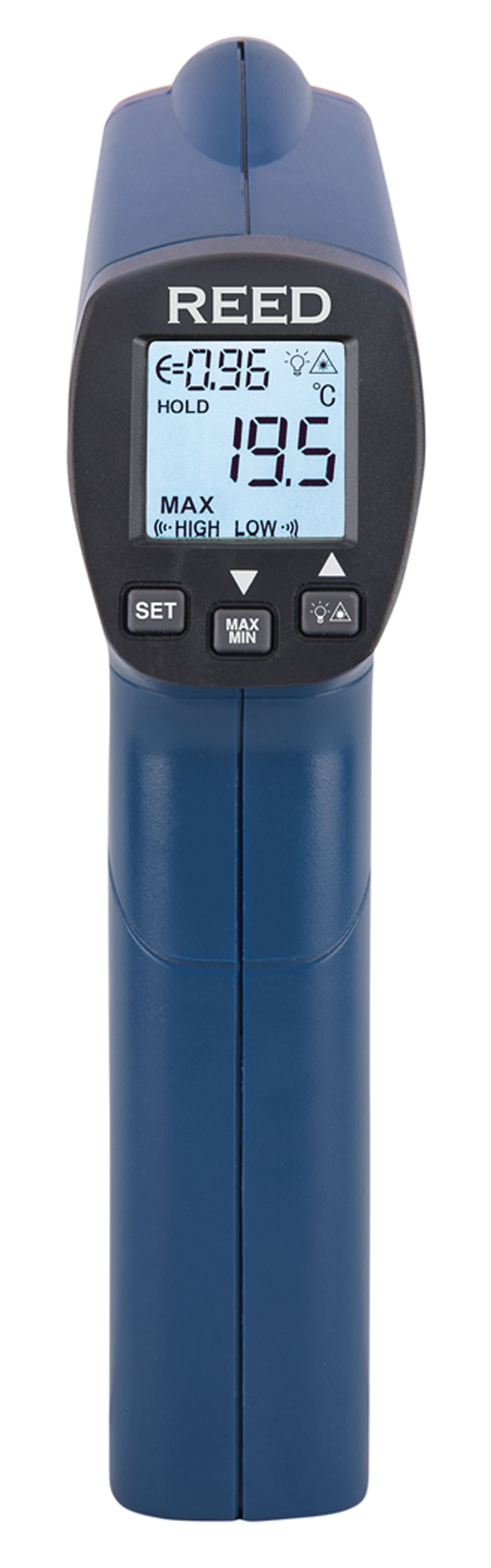

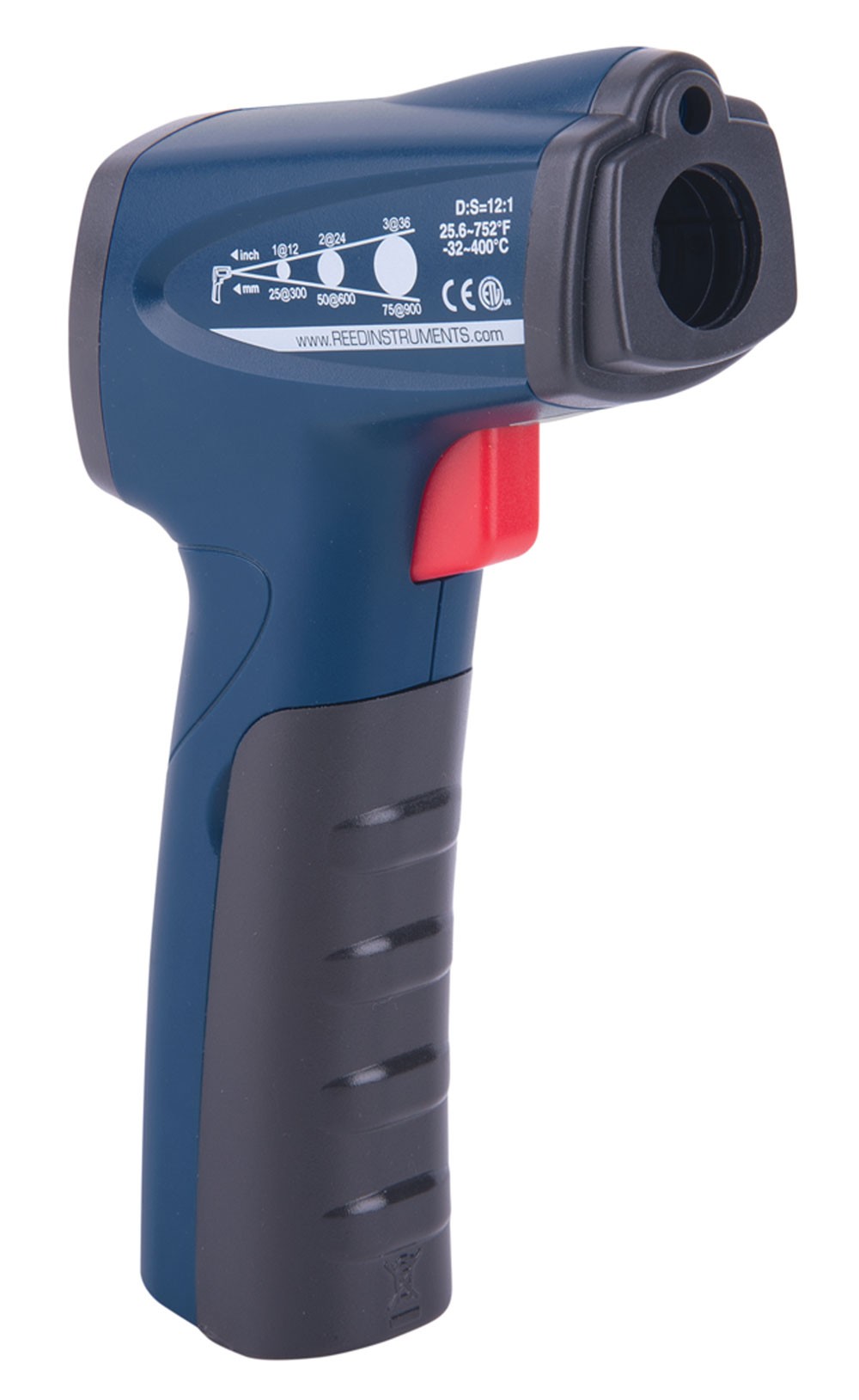

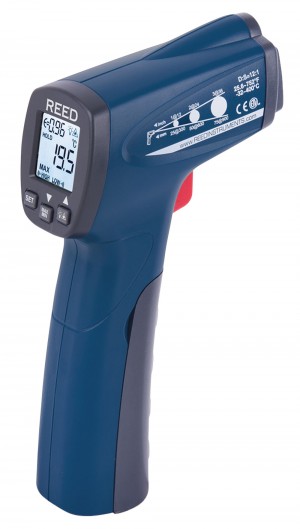

REED R2300 Infrared Thermometer

Model: R2300

REED R2300 Infrared Thermometer-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.

REED R2300 Offers

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings
  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

REED R2300 Specifications

Temperature Range -25.6 to 752°F (-32 to 400°C)
Accuracy ±4°F (2°C) or ±2% rdg.
Resolution 0.1°F (0.1°C)
Optical Resolution (D:S) 12:1
Spectral Response 8 to 14µm
Emissivity 0.1 to 1.0 (Adjustable)
Response Time 500ms
Backlit Display Yes
Display Hold Yes
High/Low Alarms Yes
Alarm Indicators Yes (Beeping)
Max/Min Yes
F/C Switchable Yes
Laser Type Class II
Low Battery Indicator Yes
Power Supply 9V Battery
Product Certifications CE, ETL, RoHS
Battery Life Approx. 10 hours (with continuous use, backlight on)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range <90%
Maximum Operating Altitude 6561' (2000m)
Maximum Storage Altitude 39370' (12000m)
Dimensions 6.0 x 4.3 x 1.6" (153 x 108 x 40mm)
Weight 6.5oz (185g)

What's included with the REED R2300

  • Infrared Thermometer
  • Battery

Ideal Applications for the REED R2300

  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment

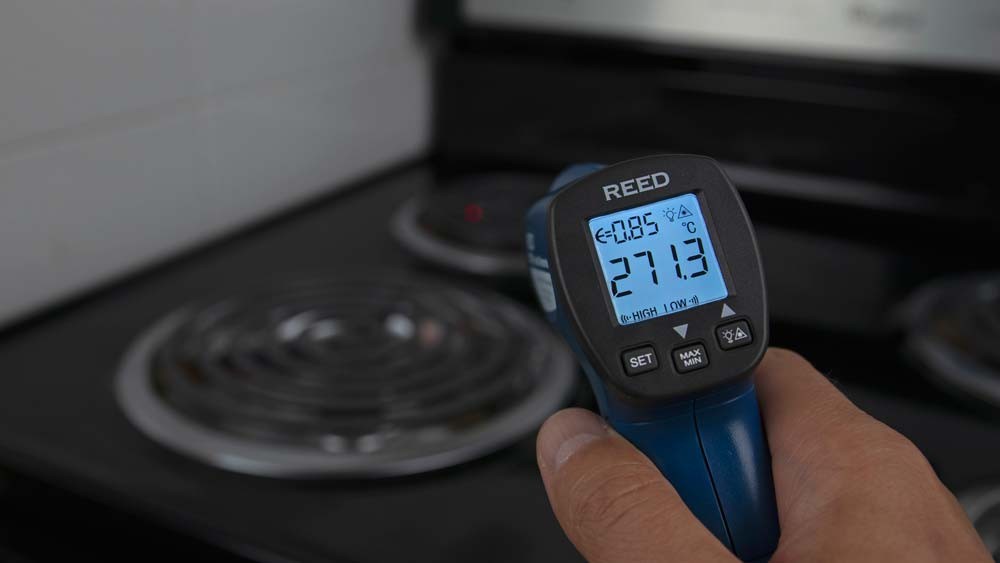

  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC energy audits

Click on a category to view a selection of compatible accessories with the REED R2300 Infrared Thermometer.

REED R9990 Infrared Thermometer Soft Carrying Case

Model: R9990

Soft Carrying Case for REED R2300 and FS-200 infrared thermometers.
