REED-HVAC-KIT HVAC Combo Kit

Model: REED-HVAC-KIT

REED-HVAC-KIT HVAC Combo Kit

Downloads:
datasheet
Ask an Expert Find This Product Near You


This HVAC combination kit consists of a selection of test tools bundled together to save you money and to saftisfy all of your heating, ventilation and air conditioning needs.

REED HVAC Professional Kit

Bringing together all the tools required for heating, ventilation and air conditioning testing and maintenance.

REED R2100 Thermal Imager

Featuring a resolution of 160 x 120 (19,200), color TFT LCD capacitive touch screen, high thermal sensitivity, built-in laser and visible light digital camera and 7.5mm lens, and 20x continuous zoom. A thermal sensitivity of <0.08°C means finding problems faster and easier, a key feature for inspection tools. The R2100 is optimized to measure temperatures from -4°F to 752°F (-20°C to 400°C)

Features

  • The Focal Plane Array (FPA) uncooled microbolometer detector gives an IR resolution of 160 X 120 pixels for creating high resolution IR images
  • A thermal sensitivity of <0.08°C means finding problems faster and easier, a key feature for inspection tools
  • Optimized to measure temperatures from -4 to 752°F (-20 to 400°C)
  • 3.5" colour TFT LCD capacitive touch screen with sun visor
  • High thermal sensitivity (NETD) of <80mK
  • Built-in laser and white LED flashlight
  • Built-in visible light digital camera lens
  • 20X continuous zoom
  • Infrared and visual images, picture-in-picture as well as Visual Image with Infrared Overlay
  • Three spot, three area with min/max and average, two-line and isothermal measurement analysis
  • Automatic hot/cold spot indicator
  • Choice of six colour palettes including custom
  • Automatic image capture
  • Save images with voice annotations
  • Video recording with voice annotations
  • Micro SD memory card extension possible

REED R3002 Digital Manometer

Measure gauge and differential pressure from 0 to 50 psi, capable of measurements in 11 different units.

  • Dual LCD readouts with backlighting
  • Min/Max/Avg recording with time stamp
  • Data hold freezes the displayed reading
  • Push button zero adjust and offset readings
  • Low battery indication with auto power off
  • USB Output
  • Includes USB cable, tubing, hard carrying case and batteries

REED R5100 Non-contact AC Voltage Detector

Detects voltage from 100 to 600 VAC without contact, the R5100 also features a built in flashlight.

  • Flashing red LED indicator
  • For use on 50/60 Hz circuits
  • Double molded plastic housing
  • All outer surfaces are non-conductive for safety
  • Cat. IV 600V safety rating
  • UL approved
  • Convenient size with packet clip

REED GD-3300 Combustible Gas Detector

Combustible gas detector with 50ppm methane sensitivity, detects natural gas, propane, butane, methane, ammonia, steam and more.

  • Low power semi-conductor sensor
  • Includes soft carrying case and batteries

REED R6020 Temperature/Humidity Data Logger

Store up to 16,000 temperature and 16,000 humidity readings.

  • Alarm display if user-defined max/min values are exceeded
  • Displays all status information through two LeDs
  • Simply plug the logger into the UsB port of your computer to begin downloading - no cables or wires are required
  • Includes wall mount bracket and Windows compatible software

REED R2100 Specifications

IR Resolution 160 x 120 pixels
Field of View 29.8 x 22.6°
Detector Type Uncooled micro-bolometer
Thermal Sensitivity (NETD) <0.08°C (80mK)
Image Capture Frequency 50Hz
Focus Manual
Temperature Range -20 to 400°C (-4 to 752°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Storage Medium 4GB micro SD card
Interface USB-mini, audio, composite video (PAL and NTSC), Micro SD slot
Drop Test 2m
Encapsulation IP65
Power Supply 7.4V lithium polymer battery
Battery Life 4 hours
Dimensions/Weight 243 x 103 x 160mm/920g

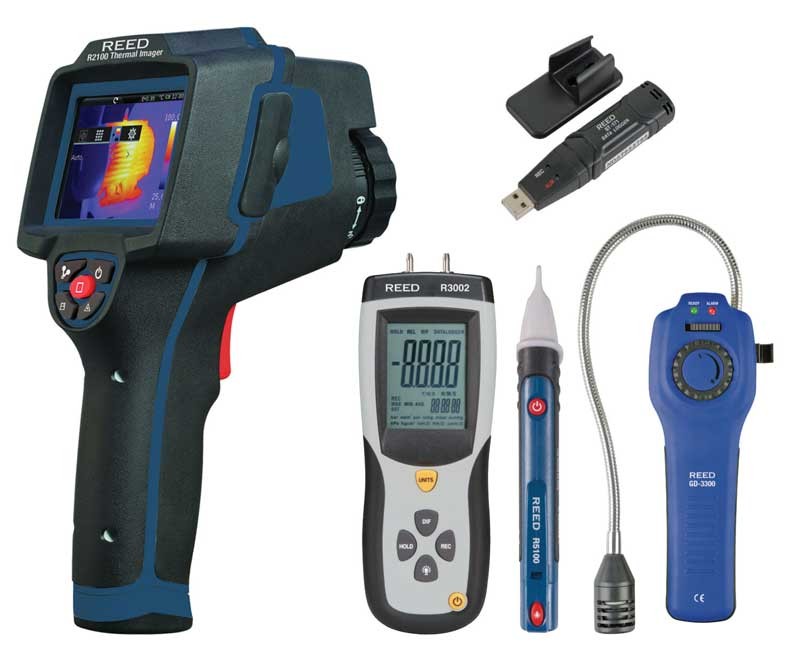

This REED-HVAC-KIT HVAC Combo Kit Includes


REED R2100 Thermal Imager

The R2100 is REED Instruments first industrial and commercial maintenance thermal imager, designed to make your work easier, faster and more efficient.


REED R3002 Digital Manometer

Any equipment that relies upon a liquid or gas to operate requires a certain amount of pressure to function. This differential pressure device works by measuring and comparing the weights of fluids or gases between two different pressures.


REED GD-3300 Combustible Gas Detector

This combustible gas detector detects a wide variety of gases, including some toxic gases and nuisance vapours.


REED R6020 Temperature/Humidity Data Logger

This datalogger can store up to 16,000 temperature and 16,000 humidity readings. Simply transfer the data onto your computer via the USB port - no cables or wires are required.


REED R5100 AC Voltage Detector

This non-contact AC Voltage Detector is the safest way to make sure the power is off without touching any wires. It relies on capacitive current only which means no direct contact is needed.

Calibration Lab

When you purchase a REED product it comes included with a one year warranty. We back our products.
