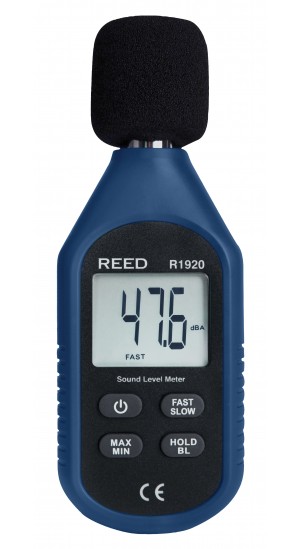

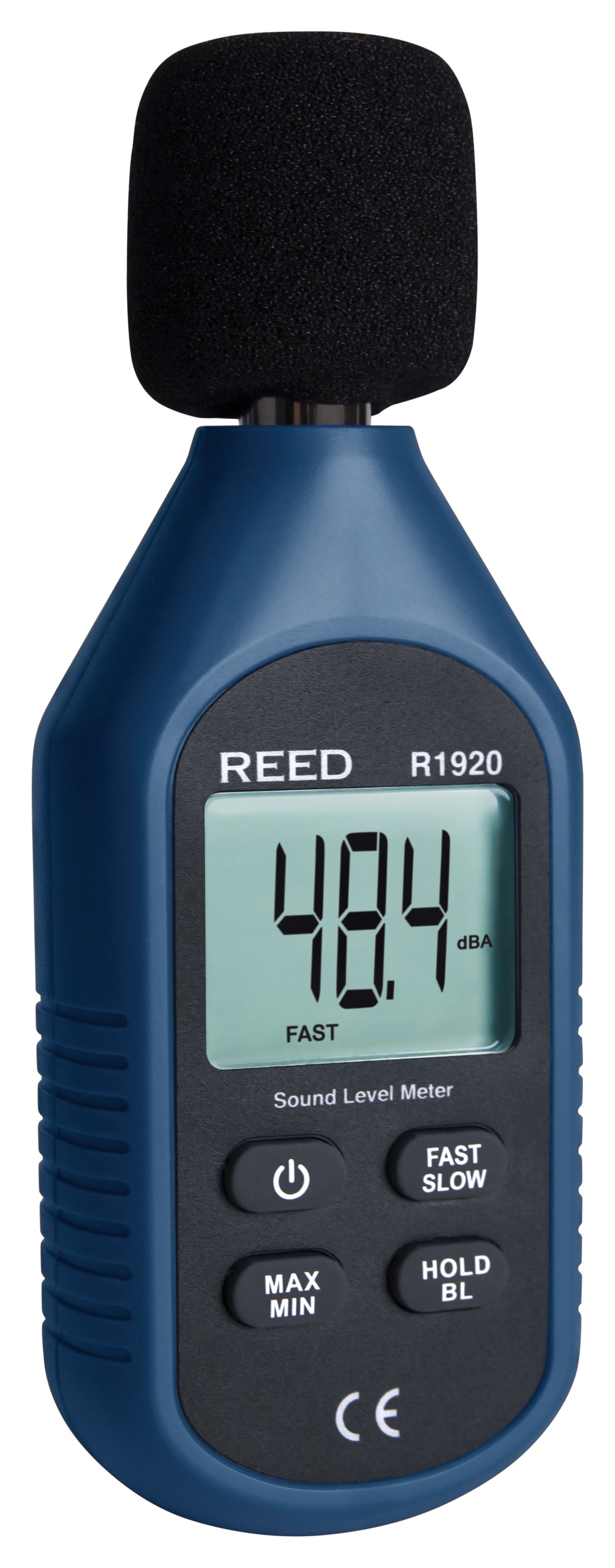

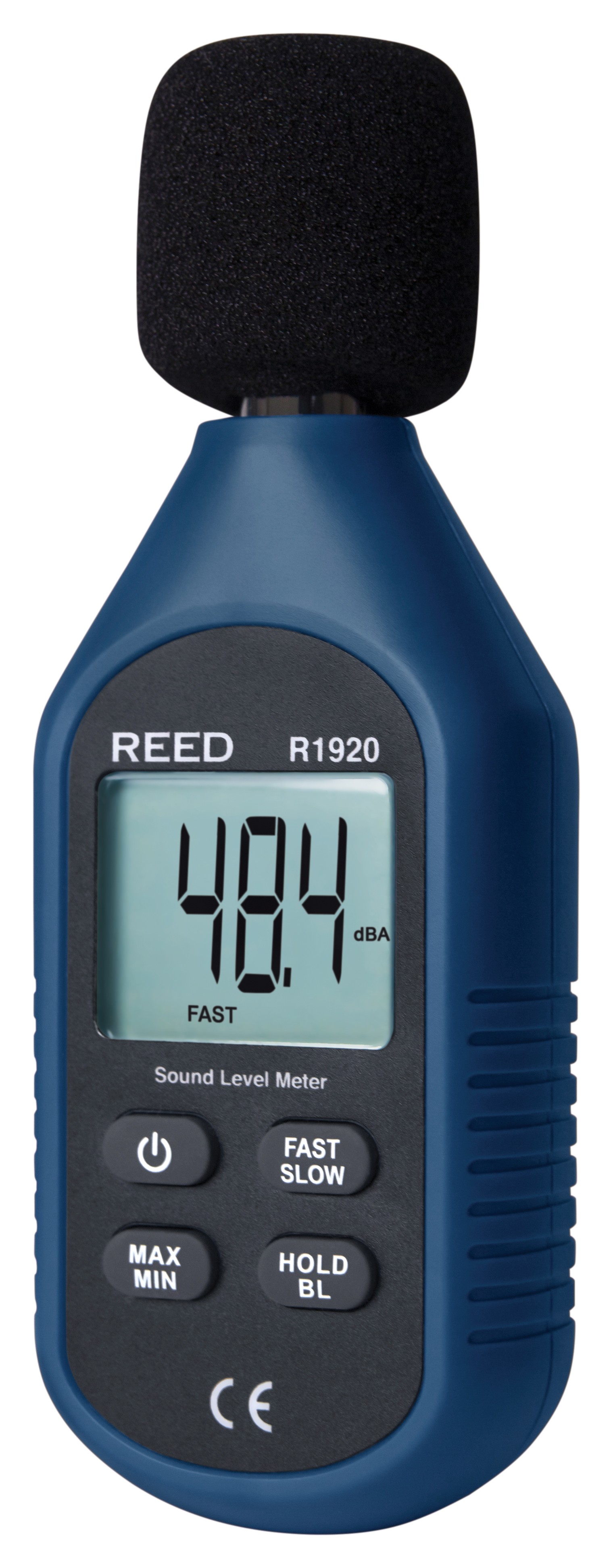

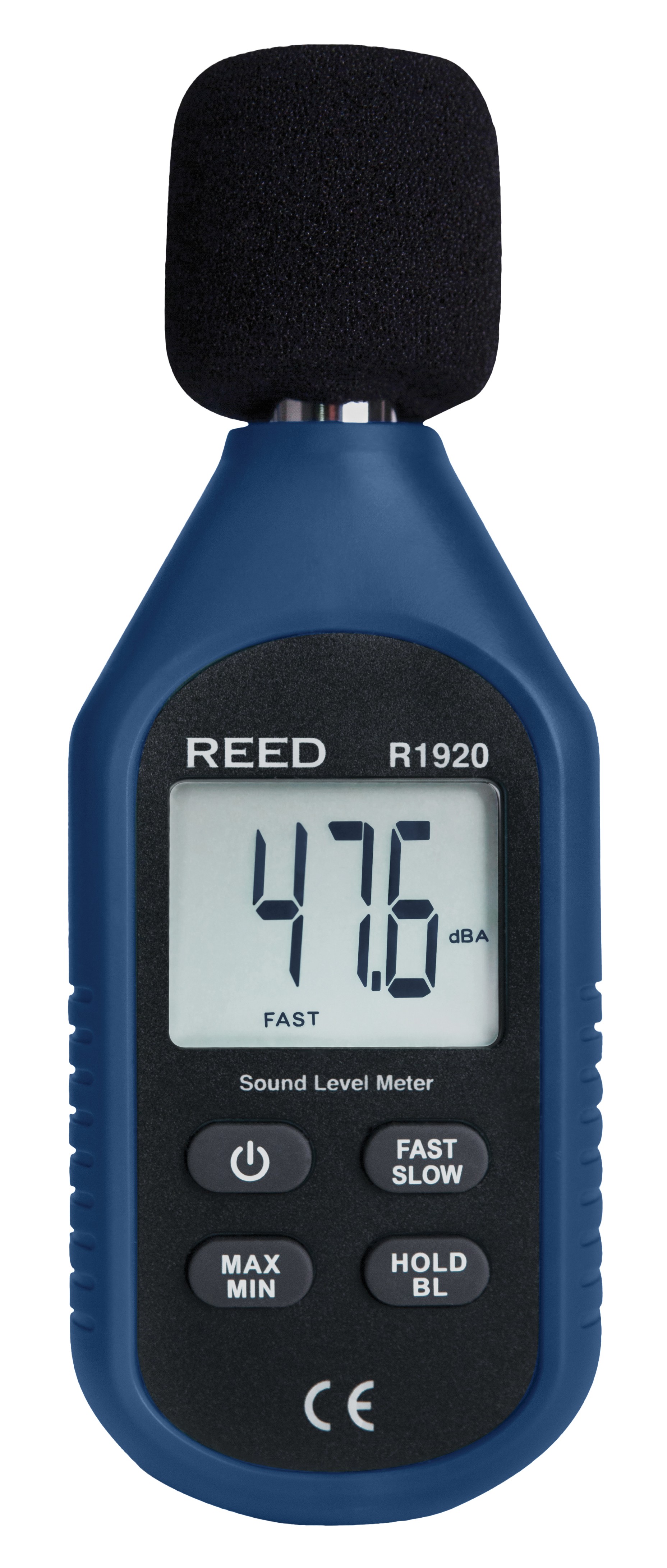

REED R1920 Sound Level Meter, Compact Series

Model: R1920

REED R1920 Sound Level Meter, Compact Series-

Downloads: manual datasheet
Ask an Expert Find This Product Near You

Compact size, backlit LCD display with fast and slow time weighting.

REED R1920 Offers

This compact sound level meter measures sound. The R1920 features Data Hold and Min/Max functions and is designed for one-handed operation.


  • Designed for one-handed operation
  • High accuracy of ±1.5 dB
  • Fast & slow time weighting
  • Backlit LCD display
  • Max, min and data hold functions
  • Low battery indicator and auto shut off

REED R1920 Specifications

Measuring Range 30 to 130 dB
Accuracy ±1.5 dB
Resolution 0.1 dB
Display 4-digit LCD
Backlit Display Yes
Time Weighting Fast/Slow (125mS and 1s)
Frequency Range 31.5 Hz to 8 kHz
Frequency Weighting A
Microphone 0.5" (12.7mm) electret condenser
Data Hold Yes
Max Yes
Min Yes
Sampling Rate 1 time/second
Under Range/Over Range Indicator Yes
Auto Shut-off Yes (after 5 minutes, off)
Low Battery Indicator Yes
Power Supply 3 "AAA" Batteries
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 80%
Dimensions 5.9 x 2 x 1.1" (150 x 52 x 27mm)
Weight 4.1oz (116g)

What's included with the REED R1920

  • Sound Level Meter
  • 3 x "AAA" Batteries

REED Compact Series: R1920

REED Compact Series instruments fit comfortably in the palm of your hand for easy one-handed operation. All Compact Series models feature a backlit LCD display, and an auto-shut off feature to preserve battery life. The R1920 displays fast and slow time weighting.

Ideal Applications for the REED R1920

  • Construction Sites
  • Ensuring Safe Working Conditions
  • Public Venues/Concerts
  • Code Enforcement
  • Traffic
  • Appliance Noise Testing
