REED Instruments

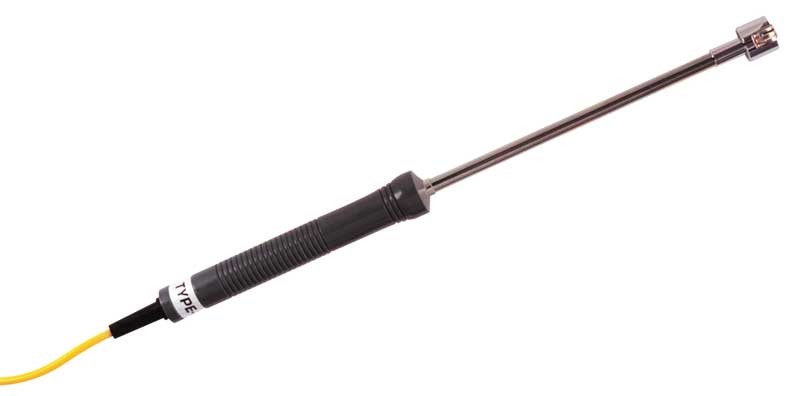

REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-109

REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)-

Downloads: datasheet
Ask an Expert Find This Product Near You

Review the LS-109


This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.

REED LS-109 Offers

Features

  • Measurement range: 32 to 752°F (0 to 400°C)
  • For general purpose temperature applications
  • Fast response time
  • Compatible with Type-K temperature measuring instruments
  • 6.3" (160mm) probe length
  • 5" (127mm) probe handle length
  • 60" (152cm) wire length

What's included with the REED LS-109

  • REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)

    • Ideal Applications for the REED LS-109

    • Laboratory
    • Industrial
    • Medical
    • HVAC/R
    • Food Service
    datasheet for the REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)
    Calibration Lab
    When you purchase a REED product it comes included with a one year warranty. We back our products.
