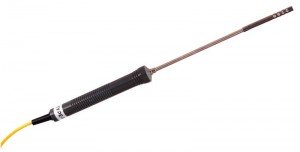

REED LS-103 Air/Gas Thermocouple Probe, Type K, 32 to 1112°F (0 to 600°C)

Model: LS-103

REED LS-103 Air/Gas Thermocouple Probe-

Downloads:
datasheet
Ask an Expert Find This Product Near You


Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts. The is color coded according to ANSI thermocouple identification standards.

REED LS-103 Offers

Features

  • Measurement range: 32 to 1112°F (0 to 600°C)
  • Perforated shield permits fast response and element protection
  • Fast response time
  • Compatible with Type-K temperature measuring instruments
  • 6.8" (173mm) probe length
  • 5.2" (131mm) probe handle length
  • 60" (152cm) wire length

What's included with the REED LS-103

  • REED LS-103 Air/Gas Thermocouple Probe, Type K, 32 to 1112°F (0 to 600°C)
  • Ideal Applications for the REED LS-103

    • Laboratory
    • Industrial
    • Medical
    • HVAC/R
    Calibration Lab

    When you purchase a REED product it comes included with a one year warranty. We back our products.
