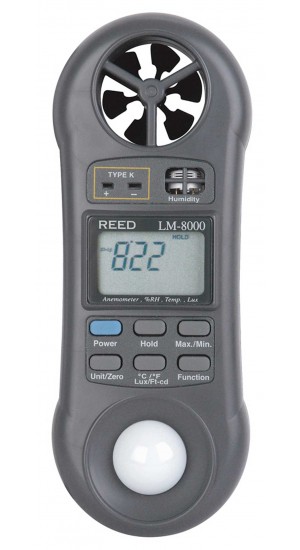

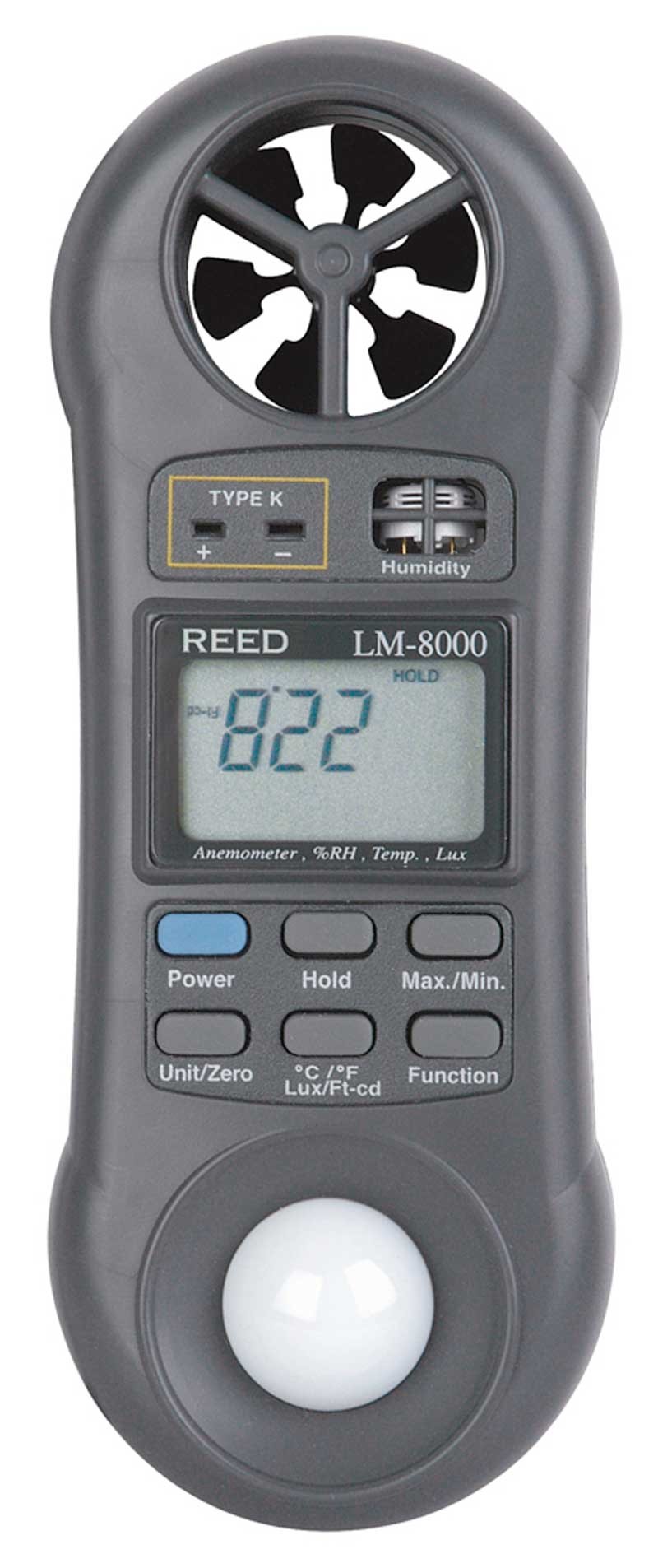

REED LM-8000 6-in-1 Multi-Function Environmental Meter

Model: LM-8000

REED LM-8000 6-in-1 Multi-Function Environmental Meter-

Downloads: datasheet manual
Ask an Expert Find This Product Near You


Fast responding, pocket size design allows for one-handed operation.

REED LM-8000 Offers

This compact 6-in-1 environmental meter measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature. The LM-8000 features Data Hold, Minimum/Max functions and has been designed for one handed operation.

Features

  • Measures air velocity/temperature, ambient temperature, relative humidity, contact temperature and light
  • Easy to operate, designed for one hand operation
  • Air velocity is measured in m/s, ft/min, km/h, mph or knots
  • Light levels are measured in foot-candles or lux
  • Temperature is measured in °C or °F
  • Data Hold and Max/Min functions
  • Zero adjustment button (light meter)
  • Low battery indicator and auto shut off

REED LM-8000 Specifications

Air Velocity
Measuring Ranges 0.2 to 30.0 m/s
1.4 to 108.0 km/h
0.9 to 67.0 mph
80 to 5910 fpm
0.8 to 58.3 knots
Accuracy <20 m/s: ±3% FS
≥20 m/s: ±4% FS
Resolution 0.1 m/s, km/h, mph, knot
1 fpm
Temperature
Measuring Ranges Air Temperature: 32 to 122.0°F (0 to 50°C)
Contact Temperature (Type K) : -148 to 2372°F
(-100 to 1300°C)
Accuracy Air Temperature: ±1.2°C (2.5°F)
Contact Temperature: ±(1% rdg +2°F(1°C))
Resolution 0.1°F/°C
Humidity
Measuring Range 10 to 95% RH
Accuracy ≥70%RH: ±(4% rdg + 1.2%RH)
<70%RH: ±4%RH
Resolution 0.1% RH
Light
Measuring Range 0 to 20,000 Lux (0 to 2,000 Ft-cd)
Accuracy ±(5% rdg ± 8 dgt)
Resolution 1 Lux / 0.1 Ft-cd
General Specifications
Response Time 1 sec
Display LCD
Data Hold Yes
Min Yes
Max Yes
Zero Adjustment Yes (for Light)
Auto Shut-off Yes (after 10 mins)
Low Battery Indicator Yes
Power Supply 9V Battery
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 85%
Dimensions 6.1 x 2.4 x 1.3" (156 x 60 x 33mm)
Weight 8.8 oz (160g)

What's included with the REED LM-8000

  • Multi-Function Environmental Meter
  • Wrist Strap
  • Battery

Ideal Applications for the REED LM-8000

  • HVAC and Refrigeration Servicing
  • Detecting Filter Blockage
  • Condensers and Chillers

Click on a category to view a selection of compatible accessories with the REED LM-8000 6-in-1 Multi-Function Environmental Meter.

REED LS-103 Air/Gas Thermocouple Probe, Type K, 32 to 1112°F (0 to 600°C)

Model: LS-103

Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts. The is color coded according to ANSI thermocouple identification standards.

REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-109

This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.

REED LS-104 Right Angle Thermocouple Surface Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-104

This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The LS-104 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.

REED LS-107 Immersion Thermocouple Probe, Type K, -58 to 1292°F (-50 to 700°C)

Model: LS-107

This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels. The LS-107 is color coded according to ANSI thermocouple identification standards.

REED LS-139 Spring Loaded Surface Thermocouple Probe, Type K, -58 to 1432°F (-50 to 800°C)

Model: LS-139

This spring loaded surface thermocouple probe is designed for flat or convex surface temperature measurements. The LS-139 is color coded according to ANSI thermocouple identification standards.

REED CA-52A Soft Carrying Case, 8 x 2.8 x 1.7"

Model: CA-52A

Features a main instrument compartment and a side pouch for accessories.
