REED ST-610BDELUXE Deluxe Thermometer Kit with 3 Probes and Case

Model: ST-610BDELUXE

REED ST-610BDELUXE Deluxe Thermometer Kit with 3 Probes and Case-


Downloads: datasheet manual
Ask an Expert Find This Product Near You

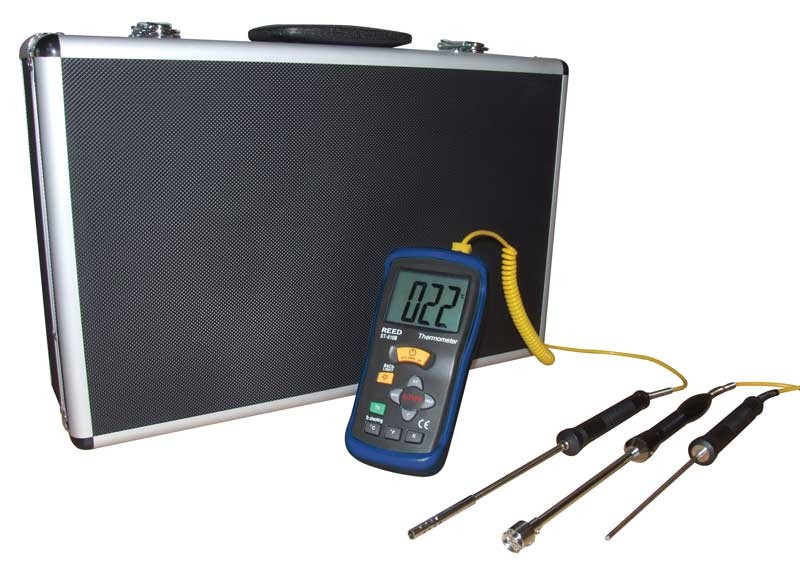

This deluxe thermometer kit includes a thermocouple thermometer, surface probe, air/gas probe, general purpose probe and carrying case.

Sorry! This product has been discontinued.


The REED ST-610BDELUXE Deluxe Thermometer Kit with 3 Probes and Case has been discontinued, it has been replaced by the REED R2400-KIT Thermocouple Thermometer Kit

REED ST-610BDELUXE Offers

This single input type-k thermocouple thermometer features a large backlit LCD display and is capable of measuring -58 to 2000°F (-50 to 1300°C) and 223 to 2000 Kelvin. The ST-610B includes a type-k beaded wire probe.

Features

  • Type K thermocouple thermometer
  • Large, easy-to-read backlit LCD display
  • User selectable °C, °F or Kelvin
  • Max and Data Hold functions
  • User selectable resolution of 0.1 or 1°F (0.1 or 1°C)
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED ST-610B Specifications

Measuring Range -58 to 2000°F (-50 to 1300°C), 223 to 2000K
Accuracy
-58 to 32°F: ±4°F
32 to 2000°F: ±(0.5% rdg+2°F)
-50°C - 0°C: ±2°C
0 to 1000°C: ±(0.5% rdg+1°C)
1000 to 1300°C: ±(0.8% rdg+1°C)
223K to 273K: ±5K
273K to 2000K: ±(1.0% rdg+2K)
Resolution 0.1 or 1°F/°C, 1K
Type Single Input, Thermocouple Type K
Response Time 1x/sec
Display 3 1/2-digit LCD
Backlit Display Yes
Data Hold Yes
Max Yes
Overrange Indicator Yes
Auto Shut-off Yes (after 15 mins)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 1 x 9V battery
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 6.4 x 3.0 x 1.5" (162 x 76 x 38.5mm)
Weight 7.4oz (210g)

What's included with the REED ST-610BDELUXE

  • ST-610B Thermocouple Thermometer
  • TP-010 Bead Probe
  • LS-109 Surface Probe
  • LS-103 Air/Gas Probe
  • LS-107 General-purpose Probe
  • 9V Battery
  • Holster
  • Hard Carrying Case

This REED ST-610BDELUXE Deluxe Thermometer Kit with 3 Probes and Case Includes:



REED LS-103 Air/Gas Thermocouple Probe

Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts. The is color coded according to ANSI thermocouple identification standards.


REED LS-107 Immersion Thermocouple Probe

This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels. The LS-107 is color coded according to ANSI thermocouple identification standards.


REED LS-109 Surface Thermocouple Probe

This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.


REED MC-2 Attache-Style Carrying Case

This attache-style carrying case is made of black plastic and aluminum. Outside Dimensions: 15 x 12 x 4.5".

Ideal Applications for the REED ST-610B

  • Medical
  • Pharmaceutical
  • Industrial and Commercial Temperature Applications
  • R&D and Educational Establishments
  • Food Service

Click on a category to view a selection of compatible accessories with the REED ST-610BDELUXE Deluxe Thermometer Kit with 3 Probes and Case.

REED CA-05A Soft Carrying Case, 10 x 4.3 x 1.7"

Model: CA-05A

Features a main instrument compartment and a side pouch for accessories.

REED TP-01 Beaded Thermocouple Wire Probe, Type K, -40 to 482°F (-40 to 250°C)

Model: TP-01

This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.

REED LS-103 Air/Gas Thermocouple Probe, Type K, 32 to 1112°F (0 to 600°C)

Model: LS-103

Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts. The is color coded according to ANSI thermocouple identification standards.

REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-109

This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.

REED R1500 Lightweight Tripod with Instrument Adapter

Model: R1500

This lightweight tripod is expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
